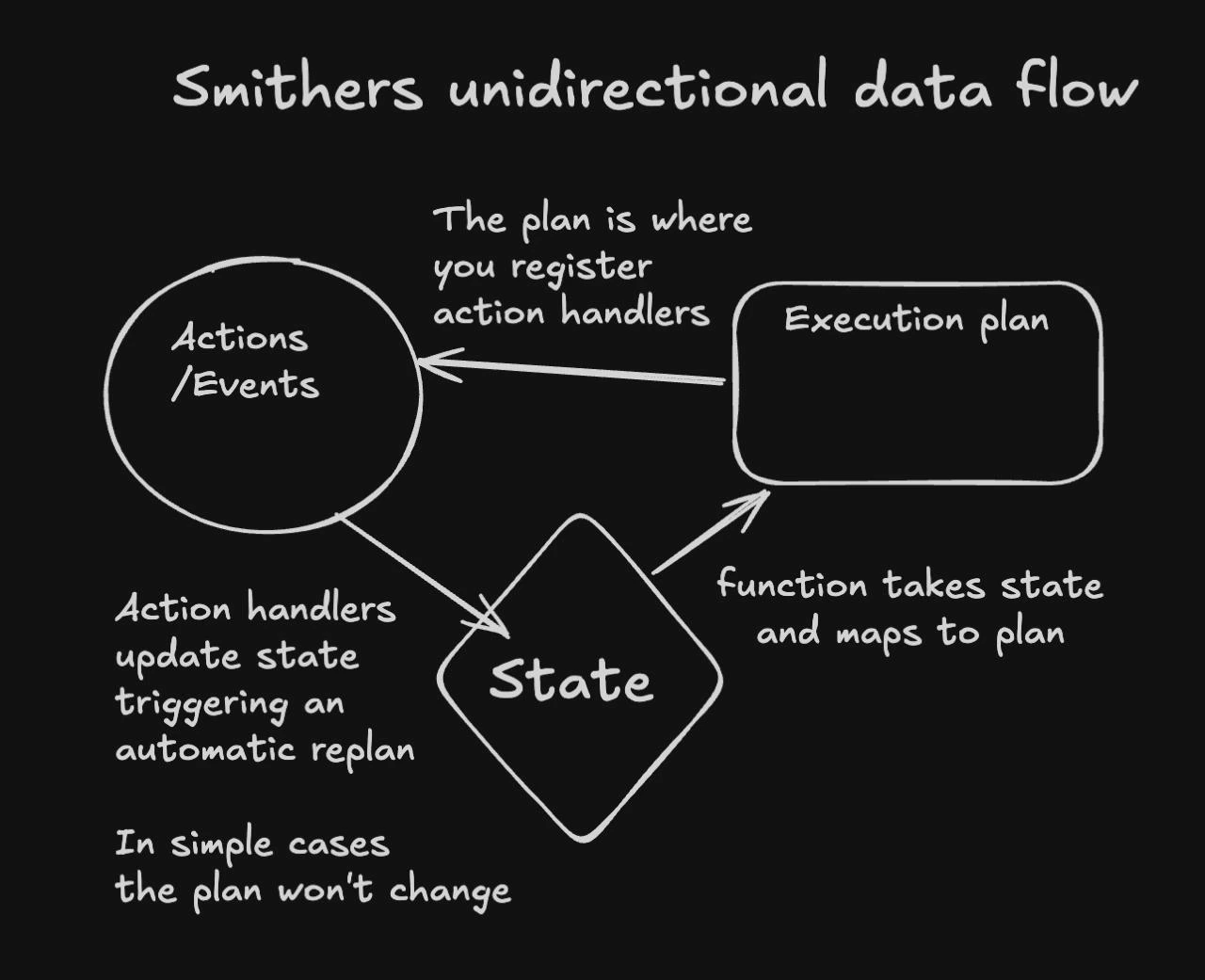

Here is the single constraint that makes Smithers simple: data flows in one direction. State produces a plan. The plan produces events. Events update state. The cycle repeats. There is never a backwards arrow. Once you internalize that, everything else — branching, loops, hot reload, time travel — falls out for free. Smithers unidirectional data flow diagram

​
The Cycle

State  ──→  Execution Plan  ──→  Actions/Events
  ↑                                     │
  └─────────────────────────────────────┘
Five steps. Memorize them once.
  1. State is persisted in SQLite — task outputs, cursor position, iteration counts.
  2. A render function maps that state to an execution plan (your JSX tree).
  3. The engine executes the next ready task, which emits an event.
  4. The event handler writes new state, triggering a re-render.
  5. Go to 1.

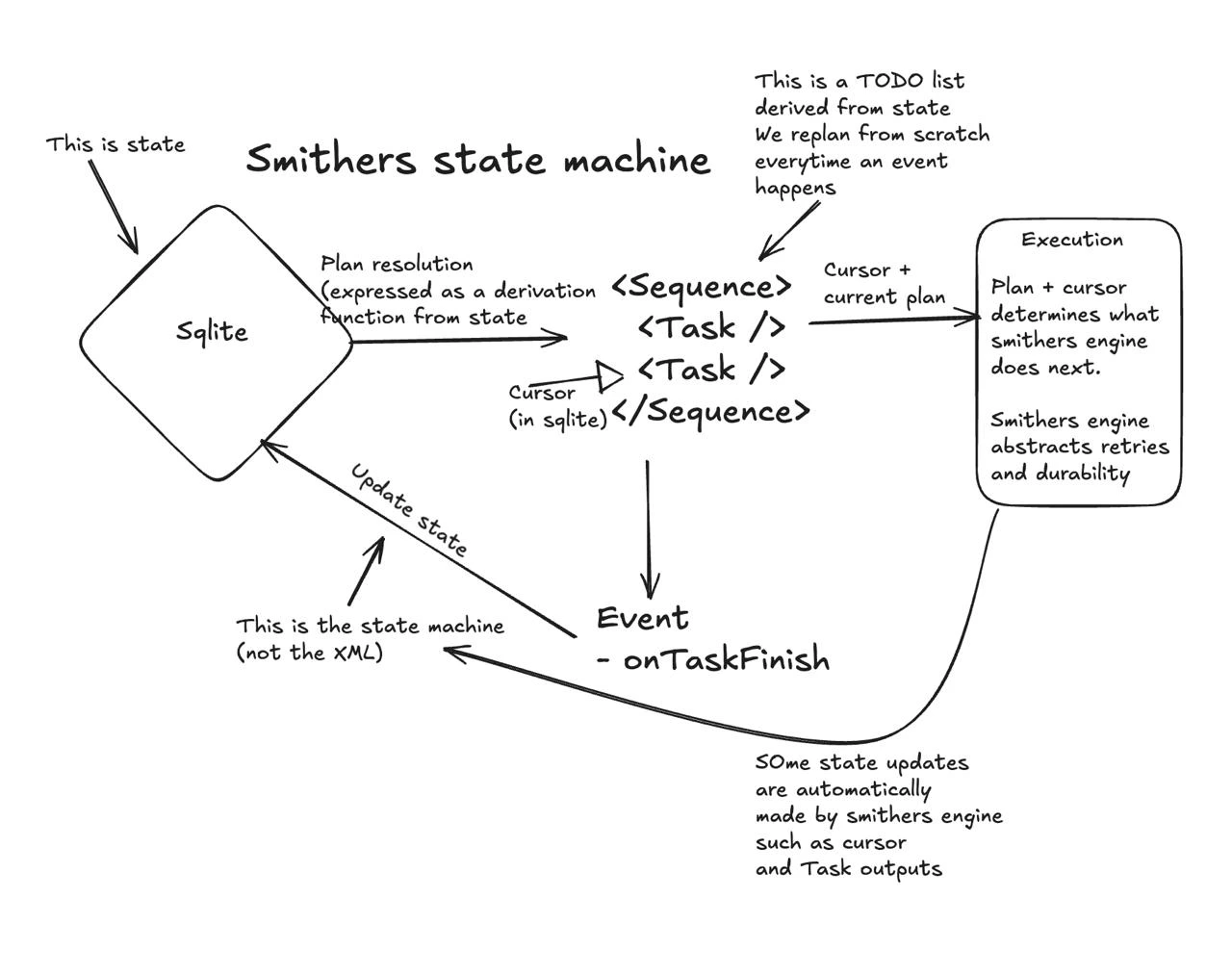

That’s it. Every Smithers workflow — from a three-task pipeline to a multi-agent loop that spawns work dynamically — runs on this cycle. In simple workflows the plan never changes between renders. In complex ones, it evolves: tasks appear, branches switch, loops continue or stop. But the mechanism is always the same one-way loop. Smithers state machine diagram

​
Three Levels of Plan Evolution

You might be thinking: “If the plan is just a function of state, how does it actually change over time?” Good question. It changes at three progressively deeper levels, and understanding them is the key to thinking in Smithers. Picture a flipbook. You know the kind — a stack of pages, each with a slightly different drawing, and when you flip through them fast enough you see animation. Every Smithers run is a flipbook. Each page is a frame: the complete execution plan at one moment in time. Now: what can change between pages?

​
Level 1: Cursor Movement

The simplest kind of animation. The drawing stays the same; only the highlight moves. Inside a <Sequence>, the cursor advances from one task to the next as each completes. The plan itself doesn’t change — only which task is active.
Frame 1:  [analyze >] → [fix] → [review]
Frame 2:  [analyze +] → [fix >] → [review]
Frame 3:  [analyze +] → [fix +] → [review >]
Same three tasks on every page. The arrow just moves forward. Even the flattest workflow uses this — it’s the baseline.

​
Level 2: Reactive Re-rendering

Now it gets interesting. What if you don’t know the full plan at the start? Every time a task finishes, Smithers re-renders the entire JSX tree with the updated state. This is not just moving a cursor. This is drawing a new page with more tasks on it than the page before.
export default smithers((ctx) => {
  const analysis = ctx.outputMaybe(outputs.analysis, { nodeId: "analyze" });

  return (
    <Workflow name="adaptive">
      <Task id="analyze" output={outputs.analysis} agent={analyst}>
        Analyze the codebase.
      </Task>

      {/* These tasks don't exist until analysis completes */}
      {analysis?.issues.map((issue) => (
        <Task key={issue.id} id={`fix-${issue.id}`} output={outputs.fix} agent={coder}>
          {`Fix: ${issue.description}`}
        </Task>
      ))}
    </Workflow>
  );
});
Frame 1: Only analyze exists in the plan. The fix tasks are not hidden or waiting — they literally do not exist yet. Frame 2: analyze finished and found 3 issues. Now fix-1, fix-2, fix-3 appear. The plan grew from 1 task to 4. Stop and let that sink in. You never told Smithers “after step one, create three more steps.” You wrote a function that takes state and returns a plan. When the state changed, the plan changed. The plan is a derived value — a pure function of state. You never mutate it. You update state, and the plan follows. This is the aha moment. If you have worked with React, it is the same insight: you don’t manipulate the DOM, you describe what it should look like given the current data, and the framework figures out the diff. Smithers does that, except the “DOM” is an execution plan and the “data” lives in SQLite.

​
Level 3: Hot Reload (--hot)

The first two levels change what’s on the pages. Level 3 changes the art style — the source code itself. With the --hot flag, you can edit the workflow definition, prompts, or agent configurations while the run is in progress. Smithers picks up the changes on the next render cycle without restarting.
smithers up workflow.tsx --hot true
This means you can:
  • Edit a prompt mid-run to steer an agent differently
  • Add a new task to the plan while earlier tasks are still executing
  • Adjust retry policies or timeout values live
Why does this work? Because it’s still the same loop. Render state into a plan, execute, persist, render again. Level 1 changes the cursor. Level 2 changes the state. Level 3 changes the code. The mechanism doesn’t care which one changed — it just renders a new frame.

​
Why One Direction Matters

You could build workflows with bidirectional data, callbacks, event buses, pub/sub channels. Plenty of orchestration frameworks do. So why does Smithers insist on one direction? Because constraints buy you things.

​
Easy to Write

LLMs already know React. A Smithers workflow is a function that takes state and returns JSX. No graph DSL, no edge definitions, no scheduler configuration. An LLM can generate correct workflows the same way it generates React components — because that’s exactly what they are.

​
Easy to Read

Data flows one way: state down, events up. When you read a workflow, you see the full plan for any given state right there in the JSX. There is no action-at-a-distance. No callback registered elsewhere that secretly modifies the plan. If you want to know what the plan looks like when analysis has three issues, read the function with that state in your head. That’s it.

​
Easy to Debug

Every render produces a frame — a snapshot of the complete plan at that moment. When something unexpected happens, the debugging process is mechanical:
  1. Find the frame where the plan diverged from what you expected.
  2. Look at the state that produced that frame.
  3. The bug is in the gap between the state you see and the plan you expected.
Because data flows one way, the cause is always upstream of the symptom. You never have to wonder “what changed this?” and trace backwards through a tangle of event handlers. The state changed. The render function ran. The plan came out wrong. That narrows your search to one function.

​
Time Travel

Since every frame is persisted, you can inspect the history of your workflow and choose the task attempt you want to restore. revert operates on JJ-backed attempt snapshots rather than arbitrary frame numbers.
smithers revert workflow.tsx --run-id run-123 --node-id review --attempt 1 --iteration 0
smithers up workflow.tsx --run-id run-123 --resume true
Why does time travel work so cleanly? Because the plan is a pure function of persisted state plus the restored workspace snapshot. Revert the state, re-render, and Smithers continues from that point. No stale callbacks, no orphaned listeners, no dangling references to tasks that no longer exist. Just state in, plan out.

​
The Mental Model

Come back to the flipbook.
  • Each page is a frame — the complete execution plan at one point in time.
  • Flipping forward happens automatically as tasks complete (Level 1).
  • Drawing new pages happens when state changes cause the plan to evolve (Level 2).
  • Redrawing the art style happens when you change the source code with --hot (Level 3).
But here’s what makes the flipbook metaphor precise rather than just cute: in a real flipbook, every page is pre-drawn. In Smithers, each page is computed from the current state. You don’t plan the whole animation upfront. You define how to draw one page given the current data, and the runtime flips through as many pages as the work requires. That is unidirectional dataflow. One constraint. Everything else follows.

​
Next Steps

  • Reactivity — Deep dive into the render-schedule-execute loop and React patterns.
  • Execution Model — How the engine turns frames into durable task execution.
  • Workflow State — The ctx API and how state flows between tasks.
