# Smithers — full documentation

> Durable AI workflow orchestration as a JSX runtime.
> Repo: github.com/evmts/smithers · Package: smithers-orchestrator (npm)

This is the complete Smithers documentation in one file. It is the concatenation of every fragment listed in /llms.txt.

If you only need the everyday surface (runtime, JSX, CLI, components, recipes, types, errors) read /llms-core.txt instead — it is roughly half the size and skips the opt-in fragments below.

Fragments included in this file:
  1. /llms-core.txt           — core runtime, JSX, CLI, components, recipes, types
  2. /llms-memory.txt         — cross-run memory
  3. /llms-openapi.txt        — OpenAPI tool generation
  4. /llms-observability.txt  — HTTP server, gateway, MCP, OpenTelemetry
  5. /llms-effect.txt         — low-level Effect-ts integration
  6. /llms-integrations.txt   — agent runtimes, IDE, CI, ecosystem

Changelogs are not included; see /docs/changelogs/ on the docs site.

===============================================================================
# Smithers

> Smithers — durable AI workflow orchestration as a JSX runtime.
> Repo: github.com/evmts/smithers · Package: smithers-orchestrator (npm)

This file contains the core Smithers documentation. Read top to bottom for a complete picture of the runtime, JSX surface, CLI, and components.

Opt-in fragments cover features most users do not need:
  - Memory (cross-run state):       /llms-memory.txt
  - OpenAPI tools:                  /llms-openapi.txt
  - Observability + HTTP server:    /llms-observability.txt
  - Integrations + CLI agents:      /llms-integrations.txt
  - Event types (full union):       /llms-events.txt

Changelogs are not included; see /docs/changelogs/ on the docs site.

---

## Smithers

> Durable AI workflow orchestration as a JSX runtime.

Smithers turns a JSX tree into a durable, resumable workflow.

```tsx
/** @jsxImportSource smithers-orchestrator */
import { createSmithers, Sequence, Task } from "smithers-orchestrator";
import { z } from "zod";

const { Workflow, smithers, outputs } = createSmithers({
  hello: z.object({ message: z.string() }),
});

export default smithers((ctx) => (
  <Workflow name="hello">
    <Sequence>
      <Task id="greet" output={outputs.hello}>
        {{ message: `Hello, ${ctx.input.name}` }}
      </Task>
    </Sequence>
  </Workflow>
));
```

Run it:

```bash
bunx smithers-orchestrator init
bunx smithers-orchestrator up workflow.tsx --input '{"name":"world"}'
```

Outputs are validated by Zod, persisted to SQLite, and survive crashes. Resume with `--resume true`.

## Read next

- [Tour](/tour) — a 6-step worked example that introduces every core feature.

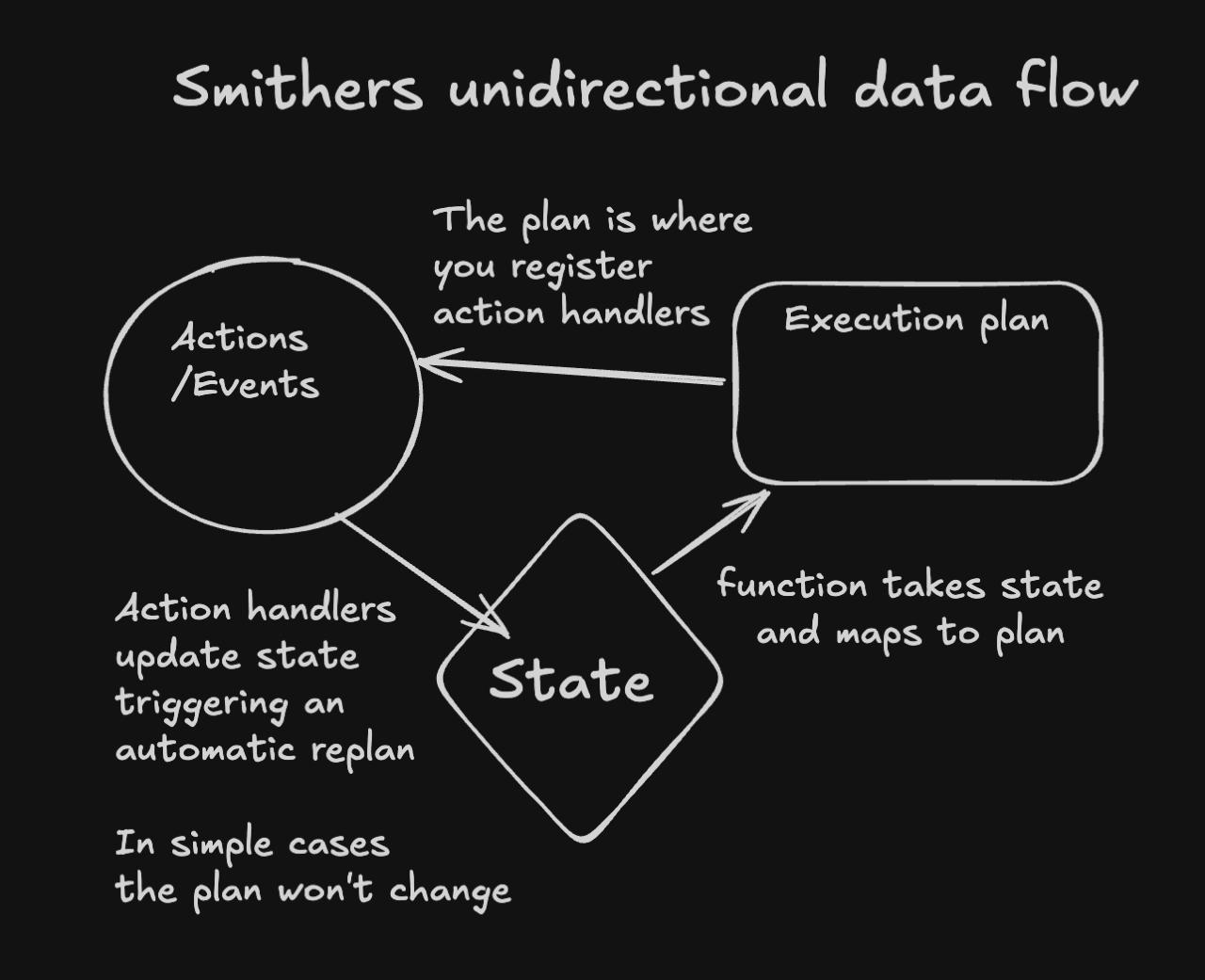

- [How It Works](/how-it-works) — the render → execute → persist loop.
- [Components](/components/workflow) — JSX surface reference.
- [CLI](/cli/overview) — every command in one table.
- [Recipes](/recipes) — common patterns.
- [Types](/reference/types) — public TypeScript surface.

---

## Introduction

> What Smithers is and when to use it.

Smithers is a durable workflow runtime. You write a workflow as a JSX tree, and Smithers repeatedly renders it. Each render answers: given what has already finished, what can run now? Tasks produce outputs validated by Zod schemas; the runtime persists them to SQLite. Crashes, restarts, and approvals are first-class — the runtime resumes from the last persisted state without re-running completed work.

```tsx
<Workflow name="review">
  <Sequence>
    <Task id="analyze" output={outputs.analysis} agent={analyst}>
      {`Review ${ctx.input.repo}`}
    </Task>
    {analysis ? (
      <Task id="fix" output={outputs.fix} agent={fixer}>
        {`Fix: ${analysis.issues}`}
      </Task>
    ) : null}
  </Sequence>
</Workflow>
```

Use Smithers when:

- order matters across multiple AI or compute steps
- you need crash recovery
- humans must approve or answer questions mid-run
- different tasks need different models, tools, or policies

Don't use it for a single prompt → single response. That's just an `Agent.generate(...)` call.

## Read next

- [Tour](/tour) for a working code-review example.
- [How It Works](/how-it-works) for the execution model.

---

## Installation

> Install smithers-orchestrator with the workflow pack, or manually for standalone JSX workflow projects.

Most teams should start with the workflow pack. It gives you a working `.smithers/` directory with seeded workflows, prompts, and agent configuration instead of assembling the project structure by hand.

## Always Run with `bunx`

Every CLI invocation in these docs is `bunx smithers-orchestrator <command>`. Do **not** install Smithers globally and do **not** use the bare `smithers` or `bunx smithers` shorthand.

- `bunx` resolves the package locally if your project depends on it, otherwise it pulls and runs the latest published version.
- The published npm package is [`smithers-orchestrator`](https://www.npmjs.com/package/smithers-orchestrator). The bare name `smithers` is a different package, so `bunx smithers` runs something else entirely.
- A global install creates version-drift problems across machines, CI, and contributors. With `bunx`, every project pins Smithers through its own `package.json`.

If you previously ran `npm i -g smithers-orchestrator`, uninstall it (`npm rm -g smithers-orchestrator`) and switch to `bunx`.

## Recommended: Install the Workflow Pack

```bash
bunx smithers-orchestrator init
```

That scaffolds `.smithers/` with files such as:

| Directory / File | Contents |
|---|---|
| `.smithers/workflows/` | Pre-built workflows (`implement`, `review`, `plan`, `ralph`, `debug`, ...) |
| `.smithers/prompts/` | Shared MDX prompt templates |
| `.smithers/components/` | Reusable TSX components (`Review`, `ValidationLoop`, ...) |
| `.smithers/package.json` | Local workflow project manifest with `smithers-orchestrator` dependency |
| `.smithers/tsconfig.json` | TypeScript config for JSX workflow authoring |
| `.smithers/bunfig.toml` | Bun preload config for MDX workflow prompts |
| `.smithers/preload.ts` | Registers the MDX preload plugin |
| `.smithers/agents.ts` | Auto-detected agent configuration |
| `.smithers/smithers.config.ts` | Repo-level config (lint, test, coverage commands) |
| `.smithers/tickets/` | Ticket workspace used by ticket-oriented workflows |
| `.smithers/executions/` | Execution artifacts directory preserved across re-inits |
| `.smithers/.gitignore` | Ignore rules for generated workflow state |

To overwrite an existing scaffold:

```bash
bunx smithers-orchestrator init --force
```

## When to Use Manual Installation

Use manual installation when embedding Smithers into an existing TypeScript codebase to author a standalone [workflow project](/guides/project-structure) from scratch.

See [JSX Installation](/jsx/installation) for the package list, TypeScript configuration, and optional MDX prompt setup.

## Requirements

- [Bun](https://bun.sh) >= 1.3
- TypeScript >= 5
- Model or provider credentials (e.g. [Anthropic](https://docs.anthropic.com) `ANTHROPIC_API_KEY`)

## Desktop App (macOS)

The Smithers desktop GUI is a separate download. It's a native macOS app (Apple Silicon) that includes the orchestrator, an embedded terminal, and workflow tooling.

<a href="https://get.smithers.sh/SmithersGUI.dmg">Download SmithersGUI.dmg</a>

Or from the terminal:

```bash
curl -LO https://get.smithers.sh/SmithersGUI.dmg
open SmithersGUI.dmg
```

<Tip>
The current build is unsigned. The first time you open it, right-click the app and choose **Open**, then confirm the Gatekeeper dialog. This only needs to be done once.
</Tip>

## After Installation

- [Quickstart](/quickstart) — run a seeded workflow immediately.
- [CLI Quickstart](/cli/quickstart) — operational workflow.
- [JSX Installation](/jsx/installation) — manual TSX authoring setup.
- [Project Structure](/guides/project-structure) — how a standalone workflow project fits together.
- [Tools Integration](/integrations/tools) — the built-in tool sandbox.

---

## Quickstart

> Scaffold and run a Smithers workflow in two commands.

```bash
bunx smithers-orchestrator init
bunx smithers-orchestrator workflow run implement --prompt "Add rate limiting"
```

`init` scaffolds `.smithers/` (workflows, prompts, components, agent config). The `workflow run` command launches one of the seeded workflows.

Inspect the run:

```bash
bunx smithers-orchestrator ps
bunx smithers-orchestrator inspect <run-id>
bunx smithers-orchestrator logs <run-id> --tail 20
```

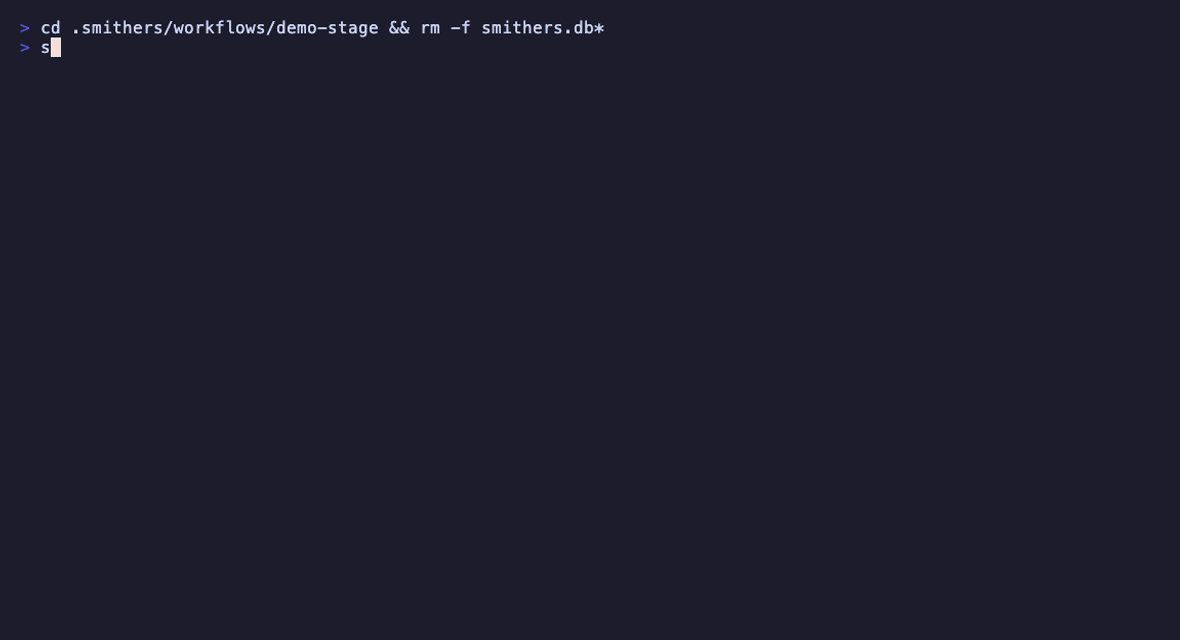

Resume after a crash:

```bash
bunx smithers-orchestrator up workflow.tsx --run-id <run-id> --resume true
```

For a full worked example see the [Tour](/tour). For every CLI command see the [CLI catalog](/cli/overview).

---

## Tour

> Build a code-review workflow in six steps. Every core feature shows up.

A code-review workflow built one capability at a time. Each step is a diff against the previous. Reading time: 15 minutes.

## 1. Install and scaffold

```bash
bunx smithers-orchestrator init
bun add smithers-orchestrator ai @ai-sdk/anthropic zod
bun add -d typescript @types/bun
export ANTHROPIC_API_KEY="sk-ant-..."
```

`init` creates `.smithers/` with seeded workflows, prompts, and components. The bun deps add the AI SDK, Anthropic provider, and Zod (schemas).

A minimal `tsconfig.json`:

```json
{
  "compilerOptions": {
    "target": "ESNext",
    "module": "ESNext",
    "moduleResolution": "bundler",
    "jsx": "react-jsx",
    "jsxImportSource": "smithers-orchestrator",
    "strict": true,
    "noEmit": true,
    "skipLibCheck": true
  }
}
```

`jsxImportSource` is the only line specific to Smithers — it routes JSX through the workflow runtime instead of React DOM.

## 2. One-task workflow

```tsx
/** @jsxImportSource smithers-orchestrator */
import { createSmithers, Sequence, Task } from "smithers-orchestrator";
import { z } from "zod";

const { Workflow, smithers, outputs } = createSmithers({
  greeting: z.object({ message: z.string() }),
});

export default smithers((ctx) => (
  <Workflow name="hello">
    <Sequence>
      <Task id="greet" output={outputs.greeting}>
        {{ message: `Hello, ${ctx.input.name}` }}
      </Task>
    </Sequence>
  </Workflow>
));
```

`createSmithers` registers Zod schemas; each becomes a SQLite table. `outputs.greeting` is the typed reference for the `greeting` schema — using it as the `output` prop gives compile-time checks (typo `outputs.greting` is a type error).

This Task has no `agent`, just a literal value. Run it.

```bash
bunx smithers-orchestrator up workflow.tsx --input '{"name":"world"}'
```

Inspect:

```bash
bunx smithers-orchestrator ps                  # find the run id
bunx smithers-orchestrator inspect <run-id>    # structured state
sqlite3 smithers.db "SELECT * FROM greeting;"  # the persisted output
```

## 3. Add an agent task

Replace the literal Task with an agent Task whose output is structured.

```tsx
import { ToolLoopAgent as Agent } from "ai";
import { anthropic } from "@ai-sdk/anthropic";

const { Workflow, smithers, outputs } = createSmithers({
  analysis: z.object({
    summary: z.string(),
    issues: z.array(z.object({
      file: z.string(),
      line: z.number(),
      severity: z.enum(["low", "medium", "high"]),
      description: z.string(),
    })),
  }),
});

const analyst = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  instructions: "You are a senior code reviewer. Return structured JSON.",
});

export default smithers((ctx) => (
  <Workflow name="review">
    <Sequence>
      <Task id="analyze" output={outputs.analysis} agent={analyst}>
        {`Review the code in ${ctx.input.repo} and return analysis as JSON.`}
      </Task>
    </Sequence>
  </Workflow>
));
```

The runtime injects a JSON-schema description of `outputs.analysis` into the prompt, parses the agent's response, validates against Zod, and persists. Validation failure triggers a retry.

## 4. A second task that depends on the first

Tasks see each other's outputs through `ctx.outputMaybe(...)`. An incomplete upstream returns `undefined`; on the next render frame the upstream output appears and the downstream Task mounts.

```tsx
const { Workflow, smithers, outputs } = createSmithers({
  analysis: AnalysisSchema,
  fix: z.object({
    patch: z.string(),
    filesChanged: z.array(z.string()),
  }),
});

const fixer = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  instructions: "Write minimal, correct fixes as a unified diff.",
});

export default smithers((ctx) => {
  const analysis = ctx.outputMaybe(outputs.analysis, { nodeId: "analyze" });

  return (
    <Workflow name="review">
      <Sequence>
        <Task id="analyze" output={outputs.analysis} agent={analyst}>
          {`Review ${ctx.input.repo}`}
        </Task>
        {analysis ? (
          <Task id="fix" output={outputs.fix} agent={fixer}>
            {`Fix these issues:\n${analysis.issues.map(i =>
              `- [${i.severity}] ${i.file}:${i.line} — ${i.description}`
            ).join("\n")}`}
          </Task>
        ) : null}
      </Sequence>
    </Workflow>
  );
});
```

Render 1: only `analyze` is mounted. Render 2 (after `analyze` finishes): `analysis` is populated, `fix` mounts and runs. The entire reactivity story — no hooks, no subscriptions, JSX conditionals over persisted state.

Same shape works for branching, parallel groups, and loops:

```tsx
<Parallel maxConcurrency={3}>
  <Task id="lint"  output={outputs.lint}  agent={linter}>...</Task>
  <Task id="test"  output={outputs.test}  agent={tester}>...</Task>
  <Task id="audit" output={outputs.audit} agent={auditor}>...</Task>
</Parallel>

<Loop until={!!review?.approved} maxIterations={5}>
  <Task id="implement" output={outputs.impl} agent={implementer}>...</Task>
  <Task id="review"    output={outputs.review} agent={reviewer}>...</Task>
</Loop>
```

## 5. An approval gate

Pause for a human. The runtime persists the pending decision and exits cleanly; an operator approves or denies through the CLI; resume picks up from the gate.

```tsx
import { Approval } from "smithers-orchestrator";

{analysis ? (
  <Approval
    id="confirm-fix"
    output={outputs.confirmFix}
    request={{
      title: `Apply fixes for ${analysis.issues.length} issues?`,
      summary: analysis.summary,
    }}
    onDeny="skip"
  >
    {/* children rendered after approval */}
  </Approval>
) : null}

{ctx.outputMaybe(outputs.confirmFix, { nodeId: "confirm-fix" })?.approved ? (
  <Task id="fix" output={outputs.fix} agent={fixer}>
    {`Apply patches`}
  </Task>
) : null}
```

Operator side:

```bash
bunx smithers-orchestrator ps --status waiting-approval     # find paused runs
bunx smithers-orchestrator inspect <run-id>                  # see the request
bunx smithers-orchestrator approve <run-id> --node confirm-fix --by alice
bunx smithers-orchestrator up workflow.tsx --run-id <run-id> --resume true
```

`onDeny` controls behavior on rejection: `"fail"` aborts the run, `"continue"` proceeds without the approved branch, `"skip"` skips the gated tasks.

## 6. Crash, then resume

Every completed task's output sits in SQLite. A crash, kill, or restart loses no work — the next run with `--resume true` skips finished tasks.

```bash
bunx smithers-orchestrator up workflow.tsx --input '{"repo":"."}' --run-id review-1
# ...analyze finishes, fix is mid-flight, you Ctrl+C

bunx smithers-orchestrator up workflow.tsx --run-id review-1 --resume true
# analyze is skipped (already in DB), fix re-runs from scratch (was incomplete)
```

In-flight attempts are marked stale and re-tried; finished tasks are not. Resume is deterministic — same input + same code = same task IDs.

For unattended recovery, run the supervisor:

```bash
bunx smithers-orchestrator supervise --interval 30s --stale-threshold 1m
```

It auto-resumes runs whose owner process died.

## What you skipped (and where to find it)

- **Time travel** (replay a frame, fork a run, diff two runs): `bunx smithers-orchestrator replay|fork|diff|timeline` — see [How It Works → Time travel](/how-it-works#time-travel).
- **Scorers** (attach evaluators to Tasks): see [Recipes → Scoring tasks](/recipes#scoring-tasks).
- **Memory** (cross-run facts, semantic recall): see [llms-memory.txt](/llms-memory.txt).
- **RAG**, **voice**, **OpenAPI tools**: opt-in fragments — see the index in [llms.txt](/llms.txt).
- **Tool sandbox** (read/grep/bash with path containment): see [Recipes → Tools](/recipes#tools).

## Read next

- [How It Works](/how-it-works) — the render → execute → persist loop.
- [Components](/components/workflow) — JSX surface reference.
- [CLI](/cli/overview) — every command in one TOON catalog.
- [Recipes](/recipes) — patterns from production workflows.

---

## How It Works

> The render → execute → persist loop, in one page.

Smithers is a React reconciler whose host elements are tasks instead of DOM nodes. Each render produces a snapshot of the workflow plan; the runtime extracts ready tasks from that plan, executes them, persists their outputs, and re-renders. The plan evolves because each render reads the persisted state.

```
+--------+        +-----------+        +---------+        +---------+
| Render | -----> | Extract   | -----> | Execute | -----> | Persist |
|  JSX   |        | task list |        |  ready  |        | outputs |
+--------+        +-----------+        +---------+        +---------+
    ^                                                          |
    |__________________________________________________________|
                       (re-render with new state)
```

That loop is the entire model. Everything below — branching, loops, approvals, resume, time travel — is either a JSX construct that affects rendering or a CLI surface over the persisted state.

## The render loop in detail

1. **Render**. The runtime calls your `smithers((ctx) => ...)` builder. The returned JSX tree is reconciled by React; the reconciler emits a graph of host elements (`smithers:workflow`, `smithers:task`, `smithers:sequence`, `smithers:parallel`, `smithers:branch`, `smithers:loop`, `smithers:approval`, etc.).
2. **Extract**. The runtime walks the tree to produce a `GraphSnapshot` — a flat list of `TaskDescriptor`s. Each descriptor captures: node id, ordinal, dependencies, output schema, agent, retries, timeouts.
3. **Schedule**. The scheduler computes the ready set: tasks whose dependencies have completed, whose enclosing sequence has reached them, whose enclosing branch resolved them, and which fit within `maxConcurrency`.
4. **Execute**. Each ready task runs. Three modes: agent (call the LLM, validate output against the Zod schema, retry on failure), compute (run the function), static (write the literal value).
5. **Persist**. Validated outputs are written to per-schema SQLite tables. Internal `_smithers_*` tables capture node state, attempts, frame snapshots, events, and durable approval/signal state.
6. **Re-render**. The next frame begins with `ctx` reading the updated outputs. Tasks that depended on now-completed outputs mount on this frame and become eligible to run.

The frame is the unit of progress. Time travel, observability, hot reload, and resume all key off the frame number.

## The `ctx` API

`ctx` is the only way the workflow body talks to the runtime.

| Method | Returns | Use for |
|---|---|---|
| `ctx.input` | `T` | The immutable input passed to `runWorkflow`. |
| `ctx.outputMaybe(schema, { nodeId })` | `Row \| undefined` | Conditional rendering — returns `undefined` until the upstream task completes. |
| `ctx.output(schema, { nodeId })` | `Row` | Same, but throws if missing. Use inside a Task body where the dep is guaranteed. |
| `ctx.latest(schema, nodeId)` | `Row \| undefined` | Highest iteration of a node — used inside `<Loop>` to read the previous iteration's output. |
| `ctx.iterationCount(schema, nodeId)` | `number` | Number of completed iterations for a loop node. |
| `ctx.runId` / `ctx.iteration` | `string` / `number` | Identifiers for logging. |
| `ctx.auth` | `RunAuthContext \| null` | Auth context passed via `RunOptions.auth`. |

Outputs are keyed by `(runId, nodeId, iteration)`. `iteration` is `0` outside loops; inside `<Loop>` each pass writes a new row at the next iteration index.

## Tasks: three modes

```tsx
// Agent — call an LLM. Children become the prompt; output validated against schema.
<Task id="analyze" output={outputs.analysis} agent={analyst}>
  {`Review ${ctx.input.repo}`}
</Task>

// Compute — children is a function. Runs at execution time.
<Task id="count" output={outputs.count}>
  {() => fs.readdirSync(ctx.input.dir).length}
</Task>

// Static — children is a plain value. Persisted directly.
<Task id="config" output={outputs.config}>
  {{ region: "us-east-1", retries: 3 }}
</Task>
```

Agent output validation: the runtime injects a JSON-schema description of the output Zod schema into the prompt, parses the response, validates, and persists. Validation failure feeds the error back into a retry attempt — agents self-correct on schema drift.

Agents can be a fallback chain: `agent={[primary, fallback]}` tries `primary` first and falls through on failure.

## Control flow

Four primitives. Compose freely.

```tsx
<Sequence>            // children execute top-to-bottom; default for <Workflow>
<Parallel maxConcurrency={3}>  // children execute concurrently
<Branch if={cond} then={<A/>} else={<B/>}>
<Loop until={done} maxIterations={5} onMaxReached="return-last">
```

`<Workflow>` implicitly sequences its children. An explicit `<Sequence>` is only needed when nesting sequential groups inside `<Parallel>` or another control-flow primitive.

Use `.map()` and ternaries when the *number* or *presence* of tasks depends on state. Use `<Parallel>` and `<Branch>` for fixed task sets whose execution shape depends on state.

## Data flow is unidirectional

Workflow state lives in SQLite. The render function is a pure function of `ctx` (which reads SQLite). Tasks emit outputs; the runtime persists them; the next render reads them. No mutation, no refs, no `useState` for durable values.

This is the same shape as React rendering UI from props/state, except:
- the "DOM" is the task graph
- "events" are task completions
- "state updates" are output writes that the runtime triggers

Three consequences:
- The plan is a **derived value**. Re-render after any state change automatically computes the new plan; you never manually mutate the plan.
- **Time travel works** because every frame is a snapshot of (state → plan).
- **Hot reload works** because reloading the workflow code with the same persisted state produces a new plan; the runtime diffs the two and continues from where you left off.

## Reactivity & React patterns

Smithers JSX is real React. Components, props, children, composition, context, hooks, custom hooks — all work.

```tsx
function useReviewState(ticketId: string) {
  const ctx = useCtx();
  const claudeReview = ctx.latest("review", `${ticketId}:review-claude`);
  return { claudeReview, allApproved: !!claudeReview?.approved };
}
```

`useState` and `useMemo` are process-local — they reset on every render frame. Use them for ephemeral render-time state. **Anything the workflow must remember across crashes goes through `ctx` and a Task output.**

Conditional mounting matters: a Task that doesn't render is not in the plan. No "skipped" placeholder unless you use `<Branch>` or `skipIf`. That's what lets `{analysis ? <Task .../> : null}` work as a clean dependency check.

## Approvals & human-in-the-loop

Two surfaces.

`needsApproval` on a Task is a **gate** — pause before execution, no decision data:

```tsx
<Task id="deploy" output={outputs.deployResult} agent={deployer} needsApproval>
  Deploy to production.
</Task>
```

`<Approval>` is a **decision node** — produces a typed `ApprovalDecision` row that downstream rendering can branch on:

```tsx
<Approval
  id="ship-decision"
  output={outputs.shipDecision}
  request={{ title: "Ship release v1.4?", summary }}
  onDeny="continue"
/>

{ctx.outputMaybe(outputs.shipDecision, { nodeId: "ship-decision" })?.approved
  ? <Task id="release" .../>
  : <Task id="rollback" .../>}
```

Three denial policies: `"fail"` (abort the run), `"continue"` (proceed without the gated branch), `"skip"` (skip the gated tasks but continue siblings).

Operator side is identical for both:

```bash
bunx smithers-orchestrator ps --status waiting-approval
bunx smithers-orchestrator approve <run-id> --node ship-decision --by alice
bunx smithers-orchestrator up workflow.tsx --run-id <run-id> --resume true
```

`<HumanTask>` is for richer interaction — a human submits arbitrary structured JSON. `<EscalationChain>` and `<ApprovalGate>` are higher-level patterns built from these.

## Durability & resume

The contract: **a completed task is never re-executed.** Resume loads persisted state, validates the environment (workflow source hash + VCS revision must match the original run), cleans stale in-progress attempts (>15 min without a heartbeat are abandoned), re-renders, and continues.

```bash
bunx smithers-orchestrator up workflow.tsx --run-id <id> --resume true
```

For resume to work, **task IDs must be stable across renders.** Derive them from data, not from indices or timestamps:

```tsx
{tickets.map((t) => <TicketPipeline key={t.id} id={`${t.id}:work`} .../>)}
// NOT id={`work-${i}`} or id={`work-${Date.now()}`}
```

Same rule as React keys. A changed task ID looks like a new task to the runtime, and an old task whose ID disappeared is dropped from the plan.

The supervisor auto-resumes runs whose owner process died:

```bash
bunx smithers-orchestrator supervise --interval 30s --stale-threshold 1m
```

## Caching

Per-Task caching with explicit invalidation:

```tsx
<Task
  id="expensive-analysis"
  output={outputs.analysis}
  agent={analyst}
  cache={{
    by: (ctx) => ({ repo: ctx.input.repo, version: "v3" }),
    version: "v3",
  }}
>
  Analyze {ctx.input.repo}
</Task>
```

Cache key = `cache.by(ctx)` + `cache.version` + the schema signature (SHA-256 of the table structure). A schema change invalidates the cache automatically.

Don't cache side-effect tasks (deploys, emails, mutations). Caching is for pure work that's expensive to recompute.

## Time travel

Every frame commit produces a `GraphSnapshot`.

```bash
bunx smithers-orchestrator timeline <run-id>           # frames + forks
bunx smithers-orchestrator diff <run-id> <node-id>     # node DiffBundle
bunx smithers-orchestrator fork workflow.tsx --run-id <id> --frame 5 --reset-node analyze
bunx smithers-orchestrator replay workflow.tsx --run-id <id> --frame 5 --restore-vcs
```

Replay with `--restore-vcs` checks out the jj revision the snapshot was taken at — re-execution sees the same source code as the original run.

## Scorers (evals)

Attach evaluators to a Task. They run **after** completion and never block.

```tsx
import { schemaAdherenceScorer, latencyScorer } from "smithers-orchestrator/scorers";

<Task
  id="analyze"
  output={outputs.analysis}
  agent={analyst}
  scorers={{
    schema: { scorer: schemaAdherenceScorer() },
    latency: { scorer: latencyScorer({ targetMs: 5000 }) },
  }}
>
  Analyze...
</Task>
```

Five built-ins: `schemaAdherenceScorer`, `latencyScorer`, `relevancyScorer`, `toxicityScorer`, `faithfulnessScorer`. Sampling: `all` / `ratio` / `none`. Custom scorers and LLM-judge scorers with `createScorer` and `llmJudge`.

```bash
bunx smithers-orchestrator scores <run-id>
```

## Memory (cross-run state)

Memory is **state that survives across runs** — facts, message history, semantic recall. Not the same as task outputs (which are per-run).

Three layers, four namespaces (`workflow`, `agent`, `user`, `global`). Three processors (`TtlGarbageCollector`, `TokenLimiter`, `Summarizer`). See [llms-memory.txt](/llms-memory.txt) for the full surface.

## Tools & sandboxing

Five built-in tools — `read`, `write`, `edit`, `grep`, `bash` — sandboxed to `rootDir`. Symlinks, network, and timeouts are denied by default; `--allow-network` opens bash to the network.

Least-privilege per task:

```tsx
const analyst    = new Agent({ model, instructions: "..." }); // no tools
const reviewer   = new Agent({ model, instructions: "...", tools: { read, grep } });
const implementer = new Agent({ model, instructions: "...", tools: { read, write, edit, bash } });
```

`defineTool` builds custom tools. Mark side-effecting ones with `sideEffect: true` and use `ctx.idempotencyKey` so retries don't double-fire.

## Common gotchas

- **Stable task IDs.** `id="implement-${i}"` or `id={Math.random()}` breaks resume. Derive from data.
- **`useState` is not durable.** Resets on every render. Persist via `ctx` and a Task.
- **Input is immutable.** Resuming with different `--input` is an error — the input is persisted at first run.
- **Code changes block resume.** A workflow source change = a different workflow. Start a new run, don't resume across edits.
- **Cached output is re-validated.** Schema drift after caching is caught (the validator rejects the stale row), so the cache misses safely.
- **Side-effect tasks should not be cached.** Pure work only.

## Read next

- [Components](/components/workflow) — JSX surface reference.
- [CLI](/cli/overview) — every command.
- [Recipes](/recipes) — patterns from production workflows.
- [Types](/reference/types) — public TypeScript surface.

---

## JSX API

> Author workflows as JSX trees. Setup, tsconfig, and the render model on one page.

Workflows are JSX trees. Smithers renders the tree, extracts ready tasks, executes them, persists their outputs, and re-renders. Branching, looping, and parallelism are normal JSX.

## Setup

Most projects should use `bunx smithers-orchestrator init` — it scaffolds everything below.

To embed into an existing codebase:

```bash
bun add smithers-orchestrator ai @ai-sdk/anthropic zod
bun add -d typescript @types/bun @types/ws
```

Minimal `tsconfig.json`:

```json
{
  "compilerOptions": {
    "target": "ESNext",
    "module": "ESNext",
    "moduleResolution": "bundler",
    "jsx": "react-jsx",
    "jsxImportSource": "smithers-orchestrator",
    "strict": true,
    "noEmit": true,
    "skipLibCheck": true
  }
}
```

`jsxImportSource` is the only non-standard line — it routes JSX through `smithers-orchestrator/jsx-runtime` instead of React DOM.

Optional MDX prompts: add `bun add -d @types/mdx` and a `preload.ts` that calls `mdxPlugin()`, register it in `bunfig.toml` as `preload = ["./preload.ts"]`.

Verify with `bunx tsc --noEmit` and `bunx smithers-orchestrator --help`.

## A minimal workflow

```tsx
/** @jsxImportSource smithers-orchestrator */
import { createSmithers, Sequence, Task } from "smithers-orchestrator";
import { z } from "zod";

const { Workflow, smithers, outputs } = createSmithers({
  analysis: z.object({ summary: z.string() }),
});

export default smithers((ctx) => (
  <Workflow name="analyze">
    <Sequence>
      <Task id="analyze" output={outputs.analysis}>
        {{ summary: `Analyze ${ctx.input.repo}` }}
      </Task>
    </Sequence>
  </Workflow>
));
```

`outputs.analysis` is the typed reference for the Zod schema — typos are compile errors.

## Reactivity

The tree re-renders on every frame, so branching is a normal JSX conditional:

```tsx
const analysis = ctx.outputMaybe(outputs.analysis, { nodeId: "analyze" });
{analysis ? <Task id="report" output={outputs.report} agent={writer}>...</Task> : null}
```

The `report` Task doesn't exist in the plan until `analysis` completes. No placeholder, no skipped node — the conditional IS the dependency.

## Read next

- [Tour](/tour) — six-step worked example with agents, schemas, approvals, resume.
- [How It Works](/how-it-works) — the render → execute → persist loop.
- [Components](/components/workflow) — full prop surface for every JSX element.

---

## CLI

> Every Smithers CLI command in one TOON catalog.

Always invoke as `bunx smithers-orchestrator <command>` (see [Installation](/installation) for why). Use `--help` on any command for the canonical option list.

## Conventions

- Persisted state lives in the nearest `smithers.db` (walk up from the working directory). Most read commands fail with a friendly message if no DB is found.
- Boolean flags accept either bare form (`--watch`) or explicit `--watch true|false`.
- `--format json|yaml|md|jsonl`, `--filter-output <key.path>`, `--token-count`, `--token-limit N`, `--token-offset N`, `--schema`, `--llms`, `--mcp`, `--verbose`, `--help`, `--version` are global.
- Workflow resolution: `up`, `graph`, `revert`, `replay`, `fork`, `retry-task`, `timetravel` take a workflow file path. `workflow run <name>` resolves IDs from `.smithers/workflows/<name>.tsx`. `workflow.tsx` invoked directly behaves like `up workflow.tsx`.

## Exit codes

```
0   success
1   execution failure
2   run cancelled / cancel succeeded
3   `up` ended in waiting-approval
4   invalid arguments / user-correctable input error
130 SIGINT
143 SIGTERM
```

## Command catalog (TOON)

Commands listed by dotted name. Subcommands of `workflow`, `cron`, `human`, `alerts`, `memory`, `openapi`, `agents`, `mcp`, `skills` appear as `parent.sub`.

```toon
commands[56]:
  - name: init
    purpose: Install the local workflow pack into .smithers/
    flags[3]{name,short,type,default,desc}:
      force,,boolean,false,Overwrite existing scaffold files
      agents-only,,boolean,false,Only create .smithers/agents/
      install,,boolean,true,Run bun install inside .smithers/ after scaffolding
  - name: up
    purpose: Start or resume a workflow execution
    args[1]{name,type,required,desc}:
      workflow,string,true,Workflow file path
    flags[23]{name,short,type,default,desc}:
      detach,d,boolean,false,Background mode; print runId/pid/logFile and exit
      run-id,r,string,,Explicit run ID
      max-concurrency,c,number,4,Maximum parallel tasks
      root,,string,,Tool sandbox root (defaults to workflow's parent dir)
      log,,boolean,true,NDJSON event log output
      log-dir,,string,,NDJSON log directory
      allow-network,,boolean,false,Allow bash tool network access
      max-output-bytes,,number,,Max bytes per tool call return
      tool-timeout-ms,,number,,Max wall-clock per tool call
      hot,,boolean,false,Hot reload for .tsx workflows
      input,i,string,,Input JSON string
      resume,,boolean,false,Resume existing run
      force,,boolean,false,Resume even if run is marked running
      serve,,boolean,false,Start an HTTP server alongside the workflow
      port,,number,7331,HTTP server port when --serve
      host,,string,127.0.0.1,HTTP bind address when --serve
      auth-token,,string,,Bearer token for HTTP auth (or SMITHERS_API_KEY env)
      metrics,,boolean,true,Expose /metrics Prometheus endpoint when --serve
      supervise,,boolean,false,Run stale-run supervisor with --serve
      supervise-dry-run,,boolean,false,With --supervise; detect without resuming
      supervise-interval,,string,10s,Supervisor poll interval
      supervise-stale-threshold,,string,30s,Heartbeat staleness threshold
      supervise-max-concurrent,,number,3,Max runs resumed per poll
  - name: tui
    purpose: Interactive observability dashboard
  - name: ps
    purpose: List active, paused, and recent runs
    flags[5]{name,short,type,default,desc}:
      status,s,string,,"Filter: running|waiting-approval|waiting-event|waiting-timer|continued|finished|failed|cancelled"
      limit,l,number,20,Max rows
      all,a,boolean,false,Include all statuses
      watch,w,boolean,false,Refresh continuously
      interval,i,number,2,Watch refresh seconds
  - name: logs
    purpose: Tail lifecycle events for a run
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[4]{name,short,type,default,desc}:
      follow,f,boolean,true,Poll for new events while run is active
      follow-ancestry,,boolean,false,Include events from parent runs (root-to-current)
      since,,number,,Start from event sequence number
      tail,n,number,50,Last N events
  - name: events
    purpose: Query run event history with filters and grouping
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[8]{name,short,type,default,desc}:
      node,n,string,,Filter by node ID
      type,t,string,,"Category: agent|approval|frame|memory|node|openapi|output|revert|run|sandbox|scorer|snapshot|supervisor|timer|token|tool-call|workflow"
      since,s,string,,Window (5m, 2h)
      limit,l,number,1000,Max events (cap 100000)
      json,j,boolean,false,NDJSON output
      group-by,,string,,"node | attempt"
      watch,w,boolean,false,Append new events as they arrive
      interval,i,number,2,Watch poll seconds
  - name: chat
    purpose: Show agent transcripts (prompts, replies, stderr)
    args[1]{name,type,required,desc}:
      runId,string,false,Run ID (latest if omitted)
    flags[4]{name,short,type,default,desc}:
      all,a,boolean,false,Show every agent attempt
      follow,f,boolean,false,Watch for new output
      tail,n,number,,Last N chat blocks
      stderr,,boolean,true,Include agent stderr
  - name: chat.create
    purpose: Create and start a one-task auto-hijacked chat run
    flags[2]{name,short,type,default,desc}:
      agent,,string,,"claude-code|codex|gemini"
      cwd,,string,.,Working directory for the chat session
  - name: inspect
    purpose: Print structured run state, steps, approvals, loop info
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[2]{name,short,type,default,desc}:
      watch,w,boolean,false,Refresh continuously
      interval,i,number,2,Watch refresh seconds
  - name: node
    purpose: Enriched node details for debugging retries, tools, output
    args[1]{name,type,required,desc}:
      nodeId,string,true,Node ID
    flags[6]{name,short,type,default,desc}:
      run-id,r,string,,Run ID
      iteration,i,number,,Loop iteration (default latest)
      attempts,,boolean,false,Expand all attempts
      tools,,boolean,false,Expand tool input/output payloads
      watch,w,boolean,false,Refresh continuously
      interval,,number,2,Watch refresh seconds
  - name: why
    purpose: Explain why a run is currently blocked or paused
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[1]{name,short,type,default,desc}:
      json,,boolean,false,Structured JSON diagnosis
  - name: scores
    purpose: View scorer results for a run
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[1]{name,short,type,default,desc}:
      node,,string,,Filter to specific node ID
  - name: approve
    purpose: Record approval for a pending gate
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[4]{name,short,type,default,desc}:
      node,n,string,,Node ID (required if multiple gates pending)
      iteration,,number,0,Loop iteration
      note,,string,,Approval note
      by,,string,,Approver identifier
  - name: deny
    purpose: Deny a pending approval gate
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[4]{name,short,type,default,desc}:
      node,n,string,,Node ID
      iteration,,number,0,Loop iteration
      note,,string,,Denial note
      by,,string,,Denier identifier
  - name: signal
    purpose: Deliver a durable signal to a run waiting on WaitForEvent
    args[2]{name,type,required,desc}:
      runId,string,true,Run ID
      signalName,string,true,Signal name
    flags[3]{name,short,type,default,desc}:
      data,,string,{},Signal payload as JSON
      correlation,,string,,Correlation ID to match a specific waiter
      by,,string,,Sender identifier
  - name: supervise
    purpose: Watch for stale runs and auto-resume them
    flags[4]{name,short,type,default,desc}:
      dry-run,n,boolean,false,Detect without resuming
      interval,i,string,10s,Poll interval
      stale-threshold,t,string,30s,Heartbeat staleness threshold
      max-concurrent,c,number,3,Max runs resumed per poll
  - name: cancel
    purpose: Halt one active run; mark in-progress attempts as cancelled
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
  - name: down
    purpose: Cancel all active runs in nearest smithers.db
    flags[1]{name,short,type,default,desc}:
      force,,boolean,false,Cancel stale runs too
  - name: hijack
    purpose: Hand off the latest resumable agent session
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[3]{name,short,type,default,desc}:
      target,,string,,"Expected engine: claude-code|codex"
      timeout-ms,,number,30000,Wait time for live handoff
      launch,,boolean,true,Open session immediately
  - name: graph
    purpose: Render a workflow tree without executing
    args[1]{name,type,required,desc}:
      workflow,string,true,Workflow file path
    flags[2]{name,short,type,default,desc}:
      run-id,r,string,graph,Run ID for persisted input/outputs
      input,,string,,Input JSON (overrides persisted)
  - name: revert
    purpose: Restore workspace to a previous task attempt snapshot
    args[1]{name,type,required,desc}:
      workflow,string,true,Workflow file path
    flags[4]{name,short,type,default,desc}:
      run-id,r,string,,Run ID
      node-id,n,string,,Node ID
      attempt,,number,1,Attempt number
      iteration,,number,0,Loop iteration
  - name: retry-task
    purpose: Retry a specific task within a run
    args[1]{name,type,required,desc}:
      workflow,string,true,Workflow file path
    flags[5]{name,short,type,default,desc}:
      run-id,r,string,,Run ID
      node-id,n,string,,Task/node ID to retry
      iteration,,number,0,Loop iteration
      no-deps,,boolean,false,Only reset this node (skip dependents)
      force,,boolean,false,Allow retry even if run is still running
  - name: timetravel
    purpose: Atomic revert + node reset (filesystem via jj + DB)
    args[1]{name,type,required,desc}:
      workflow,string,true,Workflow file path
    flags[7]{name,short,type,default,desc}:
      run-id,r,string,,Run ID
      node-id,n,string,,Task/node ID
      iteration,,number,0,Loop iteration
      attempt,a,number,,Attempt number (default latest)
      no-vcs,,boolean,false,Skip filesystem revert (DB only)
      no-deps,,boolean,false,Only reset this node
      resume,,boolean,false,Resume after time travel
  - name: replay
    purpose: Fork from a checkpoint and resume execution
    args[1]{name,type,required,desc}:
      workflow,string,true,Workflow file path
    flags[6]{name,short,type,default,desc}:
      run-id,r,string,,Source run ID
      frame,f,number,,Frame number to fork from
      node,n,string,,Node ID to reset to pending
      input,i,string,,Input overrides as JSON
      label,l,string,,Branch label
      restore-vcs,,boolean,false,Restore jj revision to source frame
  - name: diff
    purpose: Compare two time-travel snapshots
    args[2]{name,type,required,desc}:
      a,string,true,Snapshot ref (run_id or run_id:frame_no)
      b,string,true,Snapshot ref
    flags[1]{name,short,type,default,desc}:
      json,,boolean,false,JSON output
  - name: fork
    purpose: Create a branched run from a snapshot
    args[1]{name,type,required,desc}:
      workflow,string,true,Workflow file path
    flags[6]{name,short,type,default,desc}:
      run-id,r,string,,Source run ID
      frame,f,number,,Frame number
      reset-node,n,string,,Node ID to reset
      input,i,string,,Input overrides
      label,l,string,,Branch label
      run,,boolean,false,Immediately start the forked run
  - name: timeline
    purpose: View execution timeline + forks
    args[1]{name,type,required,desc}:
      runId,string,true,Run ID
    flags[2]{name,short,type,default,desc}:
      tree,,boolean,false,Include all child forks recursively
      json,,boolean,false,JSON output
  - name: observability
    purpose: Start or stop the local Docker Compose observability stack
    flags[2]{name,short,type,default,desc}:
      detach,d,boolean,false,Background containers
      down,,boolean,false,Stop and remove stack
  - name: ask
    purpose: Query via the best available installed agent CLI
    args[1]{name,type,required,desc}:
      query,string,true,Question or prompt
    flags[6]{name,short,type,default,desc}:
      agent,,string,,"claude|codex|gemini|kimi|pi"
      tool-surface,,string,semantic,"MCP tool surface: semantic|raw"
      no-mcp,,boolean,false,Disable MCP bootstrap
      print-bootstrap,,boolean,false,Print bootstrap config instead of running
      dump-prompt,,boolean,false,Print full system prompt
      list-agents,,boolean,false,List available agents with status
  - name: agents.capabilities
    purpose: Print capability registry for all built-in CLI agents
  - name: agents.doctor
    purpose: Validate capability metadata for drift or contradictions
    flags[1]{name,short,type,default,desc}:
      json,,boolean,false,JSON report
  - name: human.inbox
    purpose: List all pending human requests across runs
    flags[1]{name,short,type,default,desc}:
      format,,string,,"json for structured output"
  - name: human.answer
    purpose: Submit a JSON response to a pending HumanTask request
    args[1]{name,type,required,desc}:
      requestId,string,true,Request ID
    flags[2]{name,short,type,default,desc}:
      value,,string,,Response as JSON (required)
      by,,string,,Operator identifier
  - name: human.cancel
    purpose: Cancel a pending human request
    args[1]{name,type,required,desc}:
      requestId,string,true,Request ID
    flags[1]{name,short,type,default,desc}:
      by,,string,,Operator identifier
  - name: alerts.list
    purpose: List active alerts from nearest smithers.db
  - name: alerts.ack
    purpose: Mark an alert as acknowledged
    args[1]{name,type,required,desc}:
      alertId,string,true,Alert ID
  - name: alerts.resolve
    purpose: Mark an alert as resolved
    args[1]{name,type,required,desc}:
      alertId,string,true,Alert ID
  - name: alerts.silence
    purpose: Silence an alert without resolving
    args[1]{name,type,required,desc}:
      alertId,string,true,Alert ID
  - name: memory.list
    purpose: List all stored facts in a namespace
    args[1]{name,type,required,desc}:
      namespace,string,true,"Namespace (e.g. workflow:my-flow, global:default)"
    flags[1]{name,short,type,default,desc}:
      workflow,w,string,,Path to .tsx workflow file (locates DB)
  - name: memory.recall
    purpose: Search stored facts by semantic similarity
    args[1]{name,type,required,desc}:
      query,string,true,Natural language query
    flags[3]{name,short,type,default,desc}:
      workflow,w,string,,Path to .tsx workflow file
      namespace,n,string,global:default,Namespace to search
      top-k,k,number,5,Number of results
  - name: openapi.list
    purpose: Parse an OpenAPI spec and print tool names + summaries
    args[1]{name,type,required,desc}:
      specPath,string,true,File path or URL to spec (JSON/YAML)
  - name: workflow.list
    purpose: List discovered workflows in .smithers/workflows/
  - name: workflow.run
    purpose: Run a discovered workflow by ID
    args[1]{name,type,required,desc}:
      name,string,true,Workflow ID
    flags[8]{name,short,type,default,desc}:
      prompt,p,string,,Shorthand for input.prompt
      input,,string,,Input JSON
      detach,d,boolean,,Background mode
      run-id,r,string,,Explicit run ID
      resume,,boolean,,Resume existing run
      serve,,boolean,,Start HTTP server alongside
      port,,number,,HTTP server port
      hot,,boolean,,Hot reload
  - name: workflow.path
    purpose: Resolve workflow ID to entry file path
    args[1]{name,type,required,desc}:
      name,string,true,Workflow ID
  - name: workflow.create
    purpose: Create a new workflow scaffold file
    args[1]{name,type,required,desc}:
      name,string,true,New ID (lowercase-kebab)
  - name: workflow.doctor
    purpose: Inspect workflow discovery health
    args[1]{name,type,required,desc}:
      name,string,false,Workflow ID (omit for all)
  - name: cron.start
    purpose: Start the background scheduler loop (polls every 15s)
  - name: cron.add
    purpose: Register a new workflow cron schedule
    args[2]{name,type,required,desc}:
      pattern,string,true,"Cron expression (e.g. 0 * * * *)"
      workflowPath,string,true,Path or ID of workflow
  - name: cron.list
    purpose: List all registered cron schedules
  - name: cron.rm
    purpose: Delete a cron schedule by ID
    args[1]{name,type,required,desc}:
      cronId,string,true,UUID of cron entry
  - name: completions
    purpose: Generate shell completion scripts
    args[1]{name,type,required,desc}:
      shell,string,true,"bash|zsh|fish|nushell"
  - name: mcp.add
    purpose: Register Smithers as an MCP server for an agent integration
    flags[3]{name,short,type,default,desc}:
      command,c,string,,Override the agent command
      no-global,,boolean,false,Project-local install
      agent,,string,,"Target: claude-code|cursor|..."
  - name: skills.add
    purpose: Sync skill files to agent integrations
    flags[2]{name,short,type,default,desc}:
      depth,,number,1,Grouping depth
      no-global,,boolean,false,Project-local install
  - name: skills.list
    purpose: List available skills
```

## Operational notes

- **Detached mode** (`up --detach`): redirects stdout/stderr to a log file; prints `runId`/`pid`/`logFile` and exits.
- **Serve mode** (`up --serve`): starts the HTTP app and keeps the process alive until interrupted.
- **Progress reporting**: writes events to stderr in the form `[+MM:SS.mmm] <symbol> <summary>`.
- **Signal handling**: SIGINT/SIGTERM trigger a clean cancellation and SQLite close.
- **Supervisor guards**: skips runs whose workflow file is missing, whose owner PID is alive, or which another supervisor already claimed.
- **Exit code 4** for `human.answer`: returned when the request is not found, not pending, or expired.

---

## CLI Quickstart

> Short operational cheatsheet. The full catalog lives in CLI.

```bash
bunx smithers-orchestrator init                                       # scaffold .smithers/
bunx smithers-orchestrator workflow run implement --prompt "…"        # launch a seeded workflow
bunx smithers-orchestrator ps                                         # list runs
bunx smithers-orchestrator inspect <run-id>                           # structured run state
bunx smithers-orchestrator logs <run-id> --tail 20 --follow           # stream events
bunx smithers-orchestrator why <run-id>                               # why is it paused?
bunx smithers-orchestrator approve <run-id> --node <id> --by <name>
bunx smithers-orchestrator up workflow.tsx --run-id <id> --resume true   # resume
bunx smithers-orchestrator cancel <run-id>
```

See [Tour](/tour) for the full worked example. See [CLI](/cli/overview) for every command with flags and examples.

---

## <Workflow>

> Root container; sequences direct children, optionally caches for resume.

```ts
import { Workflow } from "smithers-orchestrator";

type WorkflowProps = {
  name: string;
  cache?: boolean; // skip already-completed nodes on resume
  children?: ReactNode;
};
```

```tsx
import { createSmithers } from "smithers-orchestrator";
import { ToolLoopAgent as Agent } from "ai";
import { anthropic } from "@ai-sdk/anthropic";
import { z } from "zod";

const { Workflow, Task, smithers, outputs } = createSmithers({
  research: z.object({ findings: z.string() }),
});

const researcher = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  instructions: "You are a research assistant.",
});

export default smithers((ctx) => (
  <Workflow name="research-pipeline" cache>
    <Task id="research" output={outputs.research} agent={researcher}>
      {`Research: ${ctx.input.topic}`}
    </Task>
  </Workflow>
));
```

## Notes

- Direct children run sequentially; `<Sequence>` is only needed inside other control-flow components.
- Custom Drizzle tables require `runId` and `nodeId` columns; tasks inside `<Loop>` also need `iteration`.

---

## <Task>

> Executable node; runs an agent, compute callback, or emits a static value.

```ts
import { Task } from "smithers-orchestrator";

type TaskProps = {
  id: string;
  output: z.ZodObject | Table | string;
  outputSchema?: z.ZodObject; // inferred when output is a Zod schema
  agent?: AgentLike | AgentLike[]; // array = [primary, ...fallbacks]
  fallbackAgent?: AgentLike;
  dependsOn?: string[];
  needs?: Record<string, string>;
  deps?: Record<string, OutputTarget>; // typed render-time upstream outputs
  allowTools?: string[]; // CLI-agent tool allowlist
  key?: string;
  skipIf?: boolean;
  needsApproval?: boolean; // pause for human before executing
  async?: boolean; // with needsApproval: let unrelated flow continue
  timeoutMs?: number;
  retries?: number; // default Infinity with exponential backoff
  noRetry?: boolean;
  retryPolicy?: { backoff?: "fixed" | "linear" | "exponential"; initialDelayMs?: number };
  continueOnFail?: boolean;
  cache?: { by?: (ctx) => unknown; version?: string };
  label?: string;
  meta?: Record<string, unknown>;
  scorers?: ScorersMap;
  memory?: {
    recall?: { namespace?: string; query?: string; topK?: number };
    remember?: { namespace?: string; key?: string };
    threadId?: string;
  };
  heartbeatTimeoutMs?: number; // fail if no heartbeat in window
  children:
    | string
    | Row
    | (() => Row | Promise<Row>)
    | ReactNode
    | ((deps) => Row | ReactNode);
};
```

```tsx
import { ToolLoopAgent as Agent } from "ai";
import { anthropic } from "@ai-sdk/anthropic";

const codeAgent = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  instructions: "You are a senior software engineer.",
});

<Task id="analyze" output={outputs.analysis} agent={codeAgent}>
  {`Analyze: ${ctx.input.repoPath}`}
</Task>

<Task id="review" output={outputs.review} agent={reviewAgent} deps={{ analyze: outputs.analysis }}>
  {(deps) => `Review: ${deps.analyze.summary}`}
</Task>
```

## Notes

- Three modes by `children` shape: agent (with `agent`), compute (function, no agent), static (value, no agent).
- When `outputSchema` is set, JSON is extracted from agent text; schema-validation retries don't consume `retries`.
- Auth errors short-circuit retries; non-idempotent tool reuse warns on the next attempt.

---

## <Sequence>

> Run children in source order.

```ts
import { Sequence } from "smithers-orchestrator";

type SequenceProps = {
  skipIf?: boolean;
  children?: ReactNode;
};
```

```tsx
<Workflow name="build-and-deploy">
  <Parallel maxConcurrency={2}>
    <Sequence>
      <Task id="build-frontend" output={outputs.buildFrontend}>
        {{ status: "built" }}
      </Task>
      <Task id="test-frontend" output={outputs.testFrontend}>
        {{ passed: true }}
      </Task>
    </Sequence>
    <Sequence>
      <Task id="build-backend" output={outputs.buildBackend}>
        {{ status: "built" }}
      </Task>
      <Task id="test-backend" output={outputs.testBackend}>
        {{ passed: true }}
      </Task>
    </Sequence>
  </Parallel>
</Workflow>
```

## Notes

- `<Workflow>` sequences direct children implicitly; `<Sequence>` is only needed inside other control-flow components.
- Empty `<Sequence>` is valid and produces no tasks.

---

## <Parallel>

> Run children concurrently with an optional concurrency cap.

```ts
import { Parallel } from "smithers-orchestrator";

type ParallelProps = {
  id?: string;
  maxConcurrency?: number; // default Infinity
  skipIf?: boolean;
  children?: ReactNode;
};
```

```tsx
<Workflow name="checks">
  <Parallel maxConcurrency={2}>
    <Task id="lint" output={outputs.lint}>
      {{ errors: 0 }}
    </Task>
    <Task id="typecheck" output={outputs.typecheck}>
      {{ passed: true }}
    </Task>
    <Task id="test" output={outputs.test}>
      {{ passed: true }}
    </Task>
  </Parallel>
</Workflow>
```

## Notes

- Group completes when all children finish (or fail, unless `continueOnFail`).
- Children receive `parallelGroupId` and `parallelMaxConcurrency` in their descriptor.

---

## <Branch>

> Conditional fork; mounts `then` when `if` is true, otherwise `else`.

```ts
import { Branch } from "smithers-orchestrator";

type BranchProps = {
  if: boolean;
  then: ReactElement;
  else?: ReactElement;
  skipIf?: boolean;
};
```

```tsx
<Workflow name="deploy-pipeline">
  <Task id="test" output={outputs.test}>
    {{ passed: true }}
  </Task>

  <Branch
    if={ctx.output(outputs.test, { nodeId: "test" }).passed}
    then={
      <Task id="deploy" output={outputs.deploy}>
        {{ url: "https://prod.example.com" }}
      </Task>
    }
    else={
      <Task id="notify-failure" output={outputs.notifyFailure}>
        {{ message: "Tests failed, skipping deploy." }}
      </Task>
    }
  />
</Workflow>
```

## Notes

- `if` re-evaluates every render frame; read completed-task outputs via `ctx.outputMaybe()`.
- Each branch takes one element; wrap multiples in `<Sequence>` or `<Parallel>`.
- Unselected branch tasks are absent from the task graph.

---

## <Loop>

> Re-run children until `until` is true or `maxIterations` is hit.

```ts
import { Loop } from "smithers-orchestrator";

type LoopProps = {
  id?: string; // auto-generated from tree position
  until: boolean;
  maxIterations?: number; // default 5
  onMaxReached?: "fail" | "return-last"; // default "return-last"
  continueAsNewEvery?: number; // checkpoint every N iters to bound history
  skipIf?: boolean;
  children?: ReactNode;
};
```

```tsx
export default smithers((ctx) => {
  const latestReview = ctx.latest("review", "review");

  return (
    <Workflow name="refine-loop">
      <Loop until={latestReview?.approved === true} maxIterations={5}>
        <Sequence>
          <Task id="write" output={outputs.draft} agent={writer}>
            {latestReview
              ? `Improve the draft. Feedback: ${latestReview.feedback}`
              : `Write a draft about: ${ctx.input.topic}`}
          </Task>
          <Task id="review" output={outputs.review} agent={reviewer}>
            {`Review the latest draft.`}
          </Task>
        </Sequence>
      </Loop>
    </Workflow>
  );
});
```

## Notes

- `ctx.latest(table, nodeId)` reads the highest-iteration output; `until` must use `ctx.outputMaybe()` since output is absent on iter 0.
- Direct nesting of `<Loop>` in `<Loop>` throws; wrap the inner loop in `<Sequence>`.
- Custom Drizzle tables for loop tasks require `iteration` in the primary key.

---

## <Approval>

> Durable human approval; persists ApprovalDecision, selection, or ranking.

```ts
import { Approval, approvalDecisionSchema } from "smithers-orchestrator";

type ApprovalProps = {
  id: string;
  mode?: "approve" | "select" | "rank"; // default "approve"
  options?: ApprovalOption[]; // required for select/rank
  output: z.ZodObject | Table | string;
  outputSchema?: z.ZodObject; // default approvalDecisionSchema
  request: { title: string; summary?: string; metadata?: Record<string, unknown> };
  onDeny?: "fail" | "continue" | "skip"; // default "fail"
  allowedScopes?: string[];
  allowedUsers?: string[];
  autoApprove?: {
    after?: number; // auto-approve after N consecutive manual approvals
    condition?: (ctx: WorkflowContext) => boolean;
    audit?: boolean;
    revertOn?: (ctx: WorkflowContext) => boolean;
  };
  async?: boolean; // unrelated downstream may continue while pending
  dependsOn?: string[];
  needs?: Record<string, string>;
  skipIf?: boolean;
  timeoutMs?: number;
  retries?: number;
  retryPolicy?: { backoff?: "fixed" | "linear" | "exponential"; initialDelayMs?: number };
  continueOnFail?: boolean;
  cache?: { by?: (ctx) => unknown; version?: string };
  label?: string;
  meta?: Record<string, unknown>;
};
```

```tsx
import { Approval, Sequence, Task, Workflow, approvalDecisionSchema, createSmithers } from "smithers-orchestrator";
import { z } from "zod";

const { smithers, outputs } = createSmithers({
  publishApproval: approvalDecisionSchema,
  publishResult: z.object({ status: z.enum(["published", "rejected"]) }),
});

export default smithers((ctx) => {
  const decision = ctx.outputMaybe(outputs.publishApproval, { nodeId: "approve-publish" });
  return (
    <Workflow name="publish-flow">
      <Sequence>
        <Approval
          id="approve-publish"
          output={outputs.publishApproval}
          request={{ title: "Publish the draft?", summary: "Human review required." }}
          onDeny="continue"
        />
        {decision ? (
          <Task id="record" output={outputs.publishResult}>
            {{ status: decision.approved ? "published" : "rejected" }}
          </Task>
        ) : null}
      </Sequence>
    </Workflow>
  );
});
```

## Notes

- `mode="select"` returns `{ selected, notes }`; `mode="rank"` returns `{ ranked, notes }`.
- Durable deferred keyed on (run, node, iteration) survives restarts; `smithers approve`/`deny` resolves it.
- For a pre-task pause without persisted decision, use `<Task needsApproval>`.

---

## <ApprovalGate>

> Conditional approval; pauses for human when `when` is true, else auto-approves.

```ts
import { ApprovalGate } from "smithers-orchestrator";

type ApprovalGateProps = {
  id: string;
  output: z.ZodObject | Table | string;
  request: { title: string; summary?: string; metadata?: Record<string, unknown> };
  when: boolean; // true => require human; false => auto-approve immediately
  onDeny?: "fail" | "continue" | "skip"; // default "fail"
  skipIf?: boolean;
  timeoutMs?: number;
  retries?: number;
  retryPolicy?: { backoff?: "fixed" | "linear" | "exponential"; initialDelayMs?: number };
  continueOnFail?: boolean;
};
```

```tsx
const risk = ctx.output(outputs.riskScore, { nodeId: "risk" });

<Workflow name="deploy-pipeline">
  <Sequence>
    <Task id="risk" output={outputs.riskScore} agent={riskAgent}>
      Assess deploy risk.
    </Task>
    <ApprovalGate
      id="deploy-approval"
      output={outputs.deployDecision}
      when={risk.level === "high"}
      request={{
        title: "Approve high-risk deploy?",
        summary: `Risk score: ${risk.score}/100`,
      }}
      onDeny="fail"
    />
    <Task id="deploy" output={outputs.deploy}>
      {{ deployed: true }}
    </Task>
  </Sequence>
</Workflow>
```

## Notes

- Auto-approve emits a valid `ApprovalDecision` (`{ approved: true, note: "auto-approved", ... }`); downstream branching stays uniform.
- `onDeny` applies only to the human path; auto-approve always succeeds.

---

## <EscalationChain>

> Sequential agent escalation with optional human fallback.

```ts
// Props
import { EscalationChain } from "smithers-orchestrator";

type EscalationChainProps = {
  id?: string; // default "escalation"
  levels: EscalationLevel[];
  humanFallback?: boolean; // default false
  humanRequest?: ApprovalRequest;
  escalationOutput: z.ZodObject | Table | string;
  skipIf?: boolean;
  children?: ReactNode; // prompt forwarded to every level
};

type EscalationLevel = {
  agent: AgentLike;
  output: z.ZodObject | Table | string;
  label?: string;
  escalateIf?: (result: any) => boolean; // true -> next level
};
```

```tsx
<Workflow name="support-ticket">
  <EscalationChain
    id="support"
    escalationOutput={outputs.escalation}
    humanFallback
    humanRequest={{ title: "Ticket needs human support", summary: "Agents could not resolve." }}
    levels={[
      { agent: fastAgent, output: outputs.tier1, label: "Tier 1", escalateIf: (r) => r.confidence < 0.7 },
      { agent: powerAgent, output: outputs.tier2, label: "Tier 2", escalateIf: (r) => r.confidence < 0.9 },
    ]}
  >
    Resolve this ticket: {ctx.input.ticketBody}
  </EscalationChain>
</Workflow>
```

## Notes

- Each level uses `continueOnFail`; failures propagate to the next level.
- `escalateIf` runs at task-execution time, not render time.

---

## <DecisionTable>

> Flat rule table that replaces nested Branch trees with declarative routing.

```ts
// Props
import { DecisionTable } from "smithers-orchestrator";

type DecisionTableProps = {
  id?: string;
  rules: DecisionRule[];
  default?: ReactElement; // rendered when no rule matches
  strategy?: "first-match" | "all-match"; // default "first-match"
  skipIf?: boolean;
};

type DecisionRule = {
  when: boolean; // evaluated at render time
  then: ReactElement;
  label?: string;
};
```

```tsx
<DecisionTable
  rules={[
    {
      when: triage.severity === "critical",
      then: (
        <Task id="page-oncall" output={outputs.page} agent={pagerAgent}>
          Page the on-call engineer immediately.
        </Task>
      ),
    },
    {
      when: triage.severity === "high",
      then: <Task id="assign-senior" output={outputs.assign}>{{ assignee: "senior-pool" }}</Task>,
    },
  ]}
  default={<Task id="default-assign" output={outputs.assign}>{{ assignee: "general-pool" }}</Task>}
/>
```

## Notes

- `first-match` builds nested Branches; order matters.
- `all-match` wraps every matching rule in a Parallel; no ordering guarantee.

---

## <HumanTask>

> Suspend until a human submits JSON matching the output schema.

```ts
import { HumanTask } from "smithers-orchestrator";

type HumanTaskProps = {
  id: string;
  output: z.ZodObject | Table | string;
  outputSchema?: z.ZodObject; // inferred when output is a Zod schema
  prompt: string | ReactNode;
  maxAttempts?: number; // default 10
  async?: boolean; // unrelated downstream may continue while pending
  skipIf?: boolean;
  timeoutMs?: number;
  continueOnFail?: boolean;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
};
```

```tsx
import { Workflow, Sequence, Task, HumanTask, createSmithers } from "smithers-orchestrator";
import { z } from "zod";

const { smithers, outputs } = createSmithers({
  review: z.object({
    approved: z.boolean(),
    comments: z.string(),
    severity: z.enum(["low", "medium", "high"]),
  }),
  summary: z.object({ status: z.string() }),
});

export default smithers((ctx) => {
  const review = ctx.outputMaybe(outputs.review, { nodeId: "human-review" });
  return (
    <Workflow name="review-flow">
      <Sequence>
        <HumanTask
          id="human-review"
          output={outputs.review}
          prompt="Review the PR. Provide approved (boolean), comments (string), severity (low|medium|high)."
          maxAttempts={5}
          timeoutMs={86_400_000}
        />
        {review ? (
          <Task id="record" output={outputs.summary}>
            {{ status: review.approved ? "approved" : "changes-requested" }}
          </Task>
        ) : null}
      </Sequence>
    </Workflow>
  );
});
```

## Notes

- Submit via `bunx smithers-orchestrator approve <runId> <nodeId> --note '<json>'`.
- Failed JSON re-prompts up to `maxAttempts` with zero backoff.
- Same durable deferred mechanism as `<Approval>`; survives restarts.

---

## <Signal>

> Typed wrapper around &lt;WaitForEvent&gt;; signal name equals node id.

```ts
import { Signal } from "smithers-orchestrator";

type SignalProps = {
  id: string; // signal name and node id
  schema: z.ZodObject; // typed payload + output target
  correlationId?: string;
  timeoutMs?: number;
  onTimeout?: "fail" | "skip" | "continue"; // default "fail"
  async?: boolean;
  skipIf?: boolean;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
  children?: (data) => ReactNode; // mounts only after payload arrives
};
```

```tsx
import { Signal, Task, Workflow, createSmithers } from "smithers-orchestrator";
import { z } from "zod";

const { smithers, outputs } = createSmithers({
  feedback: z.object({ rating: z.number(), comment: z.string() }),
  summary: z.object({ upper: z.string() }),
});

export default smithers(() => (
  <Workflow name="signal-demo">
    <Signal id="user-feedback" schema={outputs.feedback} async>
      {(feedback) => (
        <Task id="summarize" output={outputs.summary}>
          {{ upper: feedback.comment.toUpperCase() }}
        </Task>
      )}
    </Signal>
  </Workflow>
));
```

## Notes

- Renders `<WaitForEvent event={id} output={schema}>` internally.
- Async waits show in `smithers_external_wait_async_pending{kind="event"}`.

---

## <WaitForEvent>

> Durably suspend until a correlated external event arrives, or time out.

```ts
import { WaitForEvent } from "smithers-orchestrator";

type WaitForEventProps = {
  id: string;
  event: string;
  output: z.ZodObject | Table | string;
  correlationId?: string;
  outputSchema?: z.ZodObject;
  timeoutMs?: number;
  onTimeout?: "fail" | "skip" | "continue"; // default "fail"
  async?: boolean; // unrelated downstream may proceed while pending
  skipIf?: boolean;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
};
```

```tsx
<Workflow name="deploy-watcher">
  <Sequence>
    <WaitForEvent
      id="wait-deploy"
      event="deploy.completed"
      correlationId={ctx.input.deployId}
      output={outputs.deployEvent}
      outputSchema={deployPayload}
      timeoutMs={600_000}
      onTimeout="fail"
    />
    <Task id="notify" output={outputs.summary} agent={notifier}>
      The deploy finished. Summarize the result.
    </Task>
  </Sequence>
</Workflow>
```

## Notes

- Push-based; for poll-based checks use `<Task>` with a compute function.
- With `async`, dependents via `dependsOn`/`needs` still block until payload arrives.
- Async waits increment `smithers_external_wait_async_pending{kind="event"}` while pending.

---

## <Timer>

> Durably suspend for a relative duration or until an absolute time.

```ts
import { Timer } from "smithers-orchestrator";

type TimerProps = {
  id: string;
  duration?: string; // "500ms" | "30s" | "2h" | "7d"; exactly one of duration/until required
  until?: string | Date; // ISO 8601 string or Date
  skipIf?: boolean;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
};
```

```tsx
<Workflow name="delayed-report">
  <Sequence>
    <Timer id="cooldown" duration="30s" />
    <Task id="report" output={outputs.report} agent={reportAgent}>
      Generate the daily summary report.
    </Task>
  </Sequence>
</Workflow>
```

## Notes

- Exactly one of `duration` or `until` is required; both or neither throws at render time.
- Produces no output. Past `until` timestamps fire immediately.
- Worker restarts during the wait don't reset the timer.

---

## <Saga>

> Forward steps with compensations run in reverse on failure.

```ts
import { Saga } from "smithers-orchestrator";

type SagaStepDef = {
  id: string;
  action: ReactElement;
  compensation: ReactElement;
  label?: string;
};

type SagaProps = {
  id?: string;
  steps?: SagaStepDef[]; // takes priority over children
  onFailure?: "compensate" | "compensate-and-fail" | "fail"; // default "compensate"
  skipIf?: boolean;
  children?: React.ReactNode; // alternative: <Saga.Step> children
};
```

```tsx
<Workflow name="deploy-saga">
  <Saga
    id="deploy"
    steps={[
      {
        id: "create-pr",
        action: <Task id="create-pr" output={outputs.pr} agent={codeAgent}>Create a PR.</Task>,
        compensation: <Task id="close-pr" output={outputs.closePr} agent={codeAgent}>Close the PR.</Task>,
      },
      {
        id: "deploy-staging",
        action: <Task id="deploy-staging" output={outputs.staging} agent={deployAgent}>Deploy staging.</Task>,
        compensation: <Task id="rollback-staging" output={outputs.rollbackStaging} agent={deployAgent}>Rollback staging.</Task>,
      },
    ]}
  />
</Workflow>
```

## Notes

- Steps run sequentially; compensations run in reverse from the failed step.
- Compensations should be idempotent.
- `steps` and `<Saga.Step>` children are mutually exclusive; `steps` wins if both are given.

---

## <TryCatchFinally>

> Workflow-scoped error boundary with catch handlers and guaranteed cleanup.

```ts
import { TryCatchFinally } from "smithers-orchestrator";

type TryCatchFinallyProps = {
  id?: string;
  try: ReactElement;
  catch?: ReactElement | ((error: SmithersError) => ReactElement);
  catchErrors?: SmithersErrorCode[]; // restrict which codes trigger catch
  finally?: ReactElement; // always runs after try or catch
  skipIf?: boolean;
};
```

```tsx
<Workflow name="safe-deploy">
  <TryCatchFinally
    try={
      <Sequence>
        <Task id="build" output={outputs.build} agent={buildAgent}>Build the project.</Task>
        <Task id="deploy" output={outputs.deploy} agent={deployAgent}>Deploy to production.</Task>
      </Sequence>
    }
    catch={(error) => (
      <Task id="recover" output={outputs.recover} agent={recoveryAgent}>
        {`Recover from ${error.code}: ${error.summary}`}
      </Task>
    )}
    finally={
      <Task id="cleanup" output={outputs.cleanup}>{{ cleanedUp: true }}</Task>
    }
  />
</Workflow>
```

## Notes

- `try` takes one `ReactElement`; wrap multiples in `<Sequence>` or `<Parallel>`.
- `finally` runs even if `catch` fails.
- Unmatched `catchErrors` propagate to outer boundaries.

---

## <Sandbox>

> Run a child workflow in an isolated runtime; collect its result bundle.

```ts
import { Sandbox } from "smithers-orchestrator";

type SandboxVolumeMount = { host: string; container: string; readonly?: boolean };
type SandboxWorkspaceSpec = {
  name: string;
  snapshotId?: string;
  idleTimeoutSecs?: number;
  persistence?: "ephemeral" | "sticky";
};

type SandboxProps = {
  id: string;
  output: ZodObject | DrizzleTable | string;
  workflow?: (...args: any[]) => any;
  input?: unknown;
  runtime?: "bubblewrap" | "docker" | "codeplane"; // default "bubblewrap"; docker auto-falls back
  allowNetwork?: boolean; // default false
  reviewDiffs?: boolean; // default true
  autoAcceptDiffs?: boolean; // default false
  image?: string;
  env?: Record<string, string>;
  ports?: Array<{ host: number; container: number }>;
  volumes?: SandboxVolumeMount[];
  memoryLimit?: string; // e.g. "512m", "2g"
  cpuLimit?: string; // e.g. "0.5", "2"
  command?: string; // override default `smithers up bundle.tsx`
  workspace?: SandboxWorkspaceSpec; // codeplane only
  skipIf?: boolean;
  timeoutMs?: number;
  heartbeatTimeoutMs?: number;
  retries?: number;
  retryPolicy?: RetryPolicy;
  continueOnFail?: boolean;
  cache?: CachePolicy;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
  children?: ReactNode;
};
```

```tsx
<Workflow name="code-gen-sandbox">
  <Sandbox
    id="generate"
    workflow={generateCodeWorkflow}
    input={{ prompt: ctx.input.prompt, language: "typescript" }}
    output={outputs.result}
    runtime="docker"
    image="node:20-alpine"
    env={{ NODE_ENV: "production" }}
    memoryLimit="1g"
    cpuLimit="1"
    allowNetwork={false}
    reviewDiffs
    timeoutMs={300_000}
  />
</Workflow>
```

## Notes

- Bundle limits: 100 MB total, 5 MB manifest, 1,000 patches max; path traversal rejected.
- Concurrency cap via `SMITHERS_MAX_CONCURRENT_SANDBOXES` (default 10).
- `cleanup` always runs in `finally`; `codeplane` requires `CODEPLANE_API_URL` and `CODEPLANE_API_KEY`.

---

## <Subflow>

> Invoke a child workflow with its own retry, cache, resume boundary.

```ts
import { Subflow } from "smithers-orchestrator";

type SubflowProps = {
  id: string;
  workflow: Function;
  output: z.ZodObject | Table | string;
  input?: unknown;
  mode?: "childRun" | "inline"; // default "childRun"
  skipIf?: boolean;
  timeoutMs?: number;
  retries?: number;
  retryPolicy?: RetryPolicy;
  continueOnFail?: boolean;
  cache?: CachePolicy;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
};
```

```tsx
<Workflow name="parent-flow">
  <Sequence>
    <Subflow
      id="run-child"
      workflow={childWorkflow}
      input={{ repo: "acme/app" }}
      output={outputs.childResult}
      retries={2}
      timeoutMs={300_000}
    />
    <Task id="summarize" output={outputs.finalResult} agent={summarizer}>
      Summarize the child workflow result.
    </Task>
  </Sequence>
</Workflow>
```

## Notes

- `childRun` (default) gives the child its own DB row; retry/cache/resume scope it as a unit.
- `inline` renders the child tree as siblings in the parent plan, sharing its scope.
- Subflows compose; children may contain `<Subflow>` themselves.

---

## <ContinueAsNew>

> Close the current run; start a fresh one with optional carried state.

```ts
import { ContinueAsNew, continueAsNew } from "smithers-orchestrator";

type ContinueAsNewProps = {
  state?: unknown; // JSON-serializable; arrives as ctx.input.__smithersContinuation.payload
};

// continueAsNew(state?) is a helper equivalent to <ContinueAsNew state={state} />
```

```tsx
export default smithers((ctx) => {
  const continuation = (ctx.input as any)?.__smithersContinuation as
    | { payload?: { cursor?: string; count?: number } }
    | undefined;

  const cursor = continuation?.payload?.cursor ?? null;
  const count = continuation?.payload?.count ?? 0;

  return (
    <Workflow name="paginated-processor">
      <Sequence>
        <Task id="process-batch" output={outputs.processed} agent={processorAgent}>
          {`Process next page. Cursor: ${cursor ?? "start"}. Total so far: ${count}.`}
        </Task>
        <ContinueAsNew
          state={{
            cursor: ctx.outputMaybe(outputs.processed, { nodeId: "process-batch" })?.lastCursor,
            count: count + 1,
          }}
        />
      </Sequence>
    </Workflow>
  );
});
```

## Notes

- `state` must be JSON-serializable; total continuation envelope < 10 MB.
- Workflow id is preserved across continuations; only run id increments.
- Nodes rendered after `<ContinueAsNew>` in the same sequence don't execute.

---

## <SuperSmithers>

> Reads and modifies source code at runtime via a markdown strategy doc.

```ts
import { SuperSmithers } from "smithers-orchestrator";

type SuperSmithersProps = {
  strategy: string | ReactElement; // markdown or MDX strategy document
  agent: AgentLike;
  id?: string; // default "super-smithers"; prefixes internal task ids
  targetFiles?: string[]; // glob patterns scoped to the agent prompt
  reportOutput?: OutputTarget;
  dryRun?: boolean; // default false; skips the apply step
  skipIf?: boolean;
};
```

```tsx
<Workflow name="intervention">
  <SuperSmithers
    id="refactor"
    strategy={`
      ## Refactoring Strategy
      1. Find all deprecated API calls in the target files
      2. Replace them with the new API equivalents
      3. Ensure all imports are updated
    `}
    agent={codeAgent}
    targetFiles={["src/**/*.ts"]}
    reportOutput={outputs.report}
  />
</Workflow>
```

## Notes

- Expands to read → propose → apply → report (`dryRun` skips apply).
- Only meaningful in hot-reload mode; otherwise changes apply on the next run.
- All internal tasks share `agent`; for per-stage agents compose `<Task>` manually.

---

## <Aspects>

> Propagate token, latency, and cost budgets to descendant tasks.

```ts
import { Aspects } from "smithers-orchestrator";

type TokenBudgetConfig = {
  max: number;
  perTask?: number;
  onExceeded?: "fail" | "warn" | "skip-remaining"; // default "fail"
};

type LatencySloConfig = {
  maxMs: number;
  perTask?: number;
  onExceeded?: "fail" | "warn"; // default "fail"
};

type CostBudgetConfig = {
  maxUsd: number;
  onExceeded?: "fail" | "warn" | "skip-remaining"; // default "fail"
};

type TrackingConfig = { tokens?: boolean; latency?: boolean; cost?: boolean };

type AspectsProps = {
  tokenBudget?: TokenBudgetConfig;
  latencySlo?: LatencySloConfig;
  costBudget?: CostBudgetConfig;
  tracking?: TrackingConfig; // default all true
  children: ReactNode;
};
```

```tsx
<Workflow name="budgeted-workflow">
  <Aspects
    tokenBudget={{ max: 100_000, perTask: 25_000, onExceeded: "warn" }}
    latencySlo={{ maxMs: 30_000, onExceeded: "fail" }}
    costBudget={{ maxUsd: 5.0, onExceeded: "skip-remaining" }}
  >
    <Task id="analyze" output={outputs.analysis} agent={codeAgent}>
      Analyze the repository.
    </Task>
    <Task id="review" output={outputs.review} agent={reviewAgent}>
      Review the analysis.
    </Task>
  </Aspects>
</Workflow>
```

## Notes

- Nested `<Aspects>` inherit outer values; inner fields override per-config.
- Budgets enforce regardless of `tracking`; `tracking` controls metric emission only.
- Accumulator is per-run and resets on resume.

---

## <Worktree>

> Run a subtree in a separate JJ worktree rooted at `path`.

```ts
import { Worktree } from "smithers-orchestrator";

type WorktreeProps = {
  path: string; // required, non-empty; resolved against baseRootDir or cwd if relative
  id?: string;
  branch?: string; // omit to use current branch
  baseBranch?: string; // default "main"
  skipIf?: boolean;
  children: ReactNode;
};
```

```tsx
<Worktree path="/tmp/smithers/wt-a" baseBranch="main">
  <Task id="build" output={outputs.outputC}>{{ value: 1 }}</Task>
  <Task id="test" output={outputs.outputC}>{{ value: 2 }}</Task>
  <MergeQueue>
    <Task id="apply" output={outputs.outputC}>{{ value: 3 }}</Task>
  </MergeQueue>
  <Parallel maxConcurrency={2}>
    <Task id="lint" output={outputs.outputC}>{{ value: 4 }}</Task>
  </Parallel>
</Worktree>
```

## Notes

- Descendants inherit `worktreeId` and absolute `worktreePath` as `cwd`.
- Innermost `<Worktree>` wins when nested; duplicate ids are rejected.
- Empty/whitespace `path` is rejected at render time.

---

## <ReviewLoop>

> Produce, review, and fix in a loop until the reviewer approves.

```ts
// Props
import { ReviewLoop } from "smithers-orchestrator";

type ReviewLoopProps = {
  id?: string; // default "review-loop"; task ids derived as {id}-produce, {id}-review
  producer: AgentLike;
  reviewer: AgentLike | AgentLike[];
  produceOutput: OutputTarget;
  reviewOutput: OutputTarget; // must include `approved: boolean`
  maxIterations?: number; // default 5
  onMaxReached?: "return-last" | "fail"; // default "return-last"
  skipIf?: boolean;
  children: string | ReactNode; // initial producer prompt
};
```

```tsx
export default smithers(() => (
  <Workflow name="code-review">
    <ReviewLoop
      producer={coder}
      reviewer={reviewer}
      produceOutput={outputs.code}
      reviewOutput={outputs.review}
      maxIterations={3}
    >
      Implement a REST API for user authentication with JWT tokens.
    </ReviewLoop>
  </Workflow>
));
```

## Notes

- The runtime reads `approved` each frame to decide whether to loop.
- On subsequent iterations, the producer receives reviewer feedback via re-render.

---

## <Optimizer>

> Generate, evaluate, and improve in a loop until a target score is reached.

```ts
// Props
import { Optimizer } from "smithers-orchestrator";

type OptimizerProps = {
  id?: string; // default "optimizer"; task ids {id}-generate, {id}-evaluate
  generator: AgentLike;
  evaluator: AgentLike | ((candidate: unknown) => unknown); // function = compute task
  generateOutput: OutputTarget;
  evaluateOutput: OutputTarget; // must include `score: number`
  targetScore?: number; // omit to run all iterations
  maxIterations?: number; // default 10
  onMaxReached?: "return-last" | "fail"; // default "return-last"
  skipIf?: boolean;
  children: string | ReactNode; // initial generation prompt
};
```

```tsx
export default smithers(() => (
  <Workflow name="prompt-optimizer">
    <Optimizer
      generator={promptEngineer}
      evaluator={evaluator}
      generateOutput={outputs.prompt}
      evaluateOutput={outputs.evaluation}
      targetScore={90}
      maxIterations={5}
    >
      Generate a prompt for summarizing legal documents.
    </Optimizer>
  </Workflow>
));
```

## Notes

- `score` drives convergence against `targetScore`.
- A function `evaluator` renders as a compute task rather than an agent task.

---

## <ContentPipeline>

> Typed waterfall of refinement stages, each depending on the previous.

```ts
// Props
import { ContentPipeline } from "smithers-orchestrator";

type ContentPipelineProps = {
  id?: string;
  stages: ContentPipelineStage[];
  skipIf?: boolean;
  children: string | ReactNode; // initial prompt for stage[0]
};

type ContentPipelineStage = {
  id: string;
  agent: AgentLike;
  output: OutputTarget;
  label?: string;
};
```

```tsx
export default smithers(() => (
  <Workflow name="blog-pipeline">
    <ContentPipeline
      stages={[
        { id: "outline", agent: outliner, output: outputs.outline, label: "Create outline" },
        { id: "draft", agent: writer, output: outputs.draft, label: "Write draft" },
        { id: "edit", agent: editor, output: outputs.edited, label: "Edit and polish" },
      ]}
    >
      Write a blog post about building AI workflows with React components.
    </ContentPipeline>
  </Workflow>
));
```

## Notes

- Each stage after the first depends on the previous via `needs`.
- Stage `id` values must be unique within the workflow.

---

## <DriftDetector>

> Capture state, compare against a baseline, and alert on meaningful drift.

```ts
// Props
import { DriftDetector } from "smithers-orchestrator";

type DriftDetectorProps = {
  id?: string; // default "drift"; ids {id}-capture, {id}-compare
  captureAgent: AgentLike;
  compareAgent: AgentLike;
  captureOutput: OutputTarget;
  compareOutput: OutputTarget; // include `drifted: boolean`
  baseline: unknown;
  alertIf?: (comparison: any) => boolean; // override the default `drifted` check
  alert?: ReactElement;
  poll?: { intervalMs: number; maxPolls?: number }; // default maxPolls = 100
  skipIf?: boolean;
};
```

```tsx
<Workflow name="api-drift-check">
  <DriftDetector
    captureAgent={snapshotAgent}
    compareAgent={diffAgent}
    captureOutput={outputs.capture}
    compareOutput={outputs.compare}
    baseline={{ endpoints: ["/users", "/orders"], schemaHash: "abc123" }}
    alert={
      <Task id="notify" output={outputs.notify} agent={slackAgent}>
        API drift detected — notify the team.
      </Task>
    }
  />
</Workflow>
```

## Notes

- Without `poll`, the component runs once; with `poll`, it wraps in a Loop.
- Without `alert`, the component compares but takes no action on drift.

---

## <ScanFixVerify>

> Scan for problems, fix in parallel, verify, then report in a retry loop.

```ts
// Props
import { ScanFixVerify } from "smithers-orchestrator";

type ScanFixVerifyProps = {
  id?: string; // default "sfv"
  scanner: AgentLike;
  fixer: AgentLike | AgentLike[]; // array cycles across issues
  verifier: AgentLike;
  scanOutput: OutputTarget; // include `issues: Array`
  fixOutput: OutputTarget;
  verifyOutput: OutputTarget;
  reportOutput: OutputTarget;
  maxConcurrency?: number; // default Infinity
  maxRetries?: number; // default 3
  skipIf?: boolean;
  children?: ReactNode; // scan prompt
};
```

```tsx
<Workflow name="lint-fix">
  <ScanFixVerify
    scanner={lintAgent}
    fixer={fixerAgent}
    verifier={verifyAgent}
    scanOutput={outputs.scan}
    fixOutput={outputs.fix}
    verifyOutput={outputs.verify}
    reportOutput={outputs.report}
    maxRetries={5}
    maxConcurrency={3}
  >
    Scan the codebase for linting errors and type issues.
  </ScanFixVerify>
</Workflow>
```

## Notes

- The loop exits when the verifier reports all clear or `maxRetries` is hit.
- The report task always runs, even when retries are exhausted.

---

## <Poller>

> Poll an external condition with configurable backoff until satisfied or timed out.

```ts
// Props
import { Poller } from "smithers-orchestrator";

type PollerProps = {
  id?: string; // default "poll"
  check: AgentLike | (() => Promise<unknown> | unknown);
  checkOutput: OutputTarget; // must include `satisfied: boolean`
  maxAttempts?: number; // default 30
  backoff?: "fixed" | "linear" | "exponential"; // default "fixed"
  intervalMs?: number; // default 5000
  onTimeout?: "fail" | "return-last"; // default "fail"
  skipIf?: boolean;
  children?: ReactNode; // condition description
};
```

```tsx
<Workflow name="wait-for-deploy">
  <Poller
    check={statusChecker}
    checkOutput={outputs.check}
    maxAttempts={20}
    intervalMs={10_000}
    backoff="exponential"
    onTimeout="fail"
  >
    Check whether the deployment to production has completed successfully.
  </Poller>
</Workflow>
```

## Notes

- `satisfied` drives the loop's `until`.
- Backoff: fixed = `intervalMs`; linear = `intervalMs * (N+1)`; exponential = `intervalMs * 2^N`.

---

## <Runbook>

> Sequential steps with risk classification; safe auto-runs, risky/critical gate on approval.

```ts
// Props
import { Runbook } from "smithers-orchestrator";

type RunbookProps = {
  id?: string; // default "runbook"
  steps: RunbookStep[];
  defaultAgent?: AgentLike;
  stepOutput: OutputTarget;
  approvalRequest?: Partial<ApprovalRequest>;
  onDeny?: "fail" | "skip"; // default "fail"
  skipIf?: boolean;
};

type RunbookStep = {
  id: string;
  agent?: AgentLike;
  command?: string;
  risk: "safe" | "risky" | "critical"; // critical adds `elevated: true` to approval meta
  label?: string;
  output?: OutputTarget;
};
```

```tsx
export default smithers(() => (
  <Workflow name="deploy-runbook">
    <Runbook
      defaultAgent={ops}
      stepOutput={outputs.stepResult}
      steps={[
        { id: "health-check", command: "curl -f https://api.example.com/health", risk: "safe" },
        { id: "backup-db", command: "pg_dump prod > backup.sql", risk: "risky" },
        { id: "run-migration", command: "npx prisma migrate deploy", risk: "critical" },
        { id: "smoke-test", command: "npm run test:smoke", risk: "safe" },
      ]}
    />
  </Workflow>
));
```

## Notes

- Each step depends on the previous via `needs`; execution order is guaranteed.
- Critical steps set `elevated: true` in approval metadata for stronger auth UIs.
- Approval output is stored at `{prefix}-{step.id}-approval-decision`.

---

## <Supervisor>

> Boss plans, workers run in parallel, boss reviews and re-delegates failures.

```ts
// Props
import { Supervisor } from "smithers-orchestrator";

type SupervisorProps = {
  id?: string;                                  // default: "supervisor"
  boss: AgentLike;
  workers: Record<string, AgentLike>;           // { coder, tester, ... }
  planOutput: OutputTarget;                     // { tasks: [{ id, workerType, instructions }] }
  workerOutput: OutputTarget;
  reviewOutput: OutputTarget;                   // { allDone: boolean, retriable: string[] }
  finalOutput: OutputTarget;
  maxIterations?: number;                       // default: 3
  maxConcurrency?: number;                      // default: 5
  useWorktrees?: boolean;                       // default: false
  skipIf?: boolean;
  children: string | ReactNode;                 // goal/prompt for the boss
};
```

```tsx
export default smithers(() => (
  <Workflow name="build-feature">
    <Supervisor
      boss={boss}
      workers={{ coder, tester }}
      planOutput={outputs.plan}
      workerOutput={outputs.workerResult}
      reviewOutput={outputs.review}
      finalOutput={outputs.final}
      maxIterations={3}
      maxConcurrency={4}
    >
      Build the user authentication module with tests.
    </Supervisor>
  </Workflow>
));
```

## Notes

- Generated node ids: `{id}-plan`, `{id}-loop`, `{id}-worker-{type}`, `{id}-review`, `{id}-final`.
- Workers run with `continueOnFail`; a single failure does not abort the cycle.
- With `useWorktrees`, each worker runs in `.worktrees/{prefix}-worker-{type}` on branch `worker/{prefix}-worker-{type}`.

---

## <MergeQueue>

> Queue child tasks so at most maxConcurrency run; defaults to single-lane.

```ts
// Props
import { MergeQueue } from "smithers-orchestrator";

type MergeQueueProps = {
  id?: string;
  maxConcurrency?: number;  // default: 1
  skipIf?: boolean;
  children: ReactNode;
};
```

```tsx
<MergeQueue maxConcurrency={2}>
  {items.map((it, i) => (
    <Task key={i} id={`t${i}`} output={outputs.outputC}>{{ value: i }}</Task>
  ))}
</MergeQueue>
```

## Notes

- Innermost group determines the effective cap for its descendants.
- Tasks outside the queue are unaffected by its limit.

---

## <CheckSuite>

> Parallel checks with auto-aggregated pass/fail verdict.

```ts
// Props
import { CheckSuite } from "smithers-orchestrator";

type CheckConfig = { id?: string; agent?: AgentLike; command?: string; label?: string };

type CheckSuiteProps = {
  id?: string;                                              // default: "checksuite"
  checks: CheckConfig[] | Record<string, CheckConfig>;
  verdictOutput: OutputTarget;
  strategy?: "all-pass" | "majority" | "any-pass";          // default: "all-pass"
  maxConcurrency?: number;                                  // default: Infinity
  continueOnFail?: boolean;                                 // default: true
  skipIf?: boolean;
};
```

```tsx
<Workflow name="ci-checks">
  <CheckSuite
    checks={[
      { id: "lint", agent: lintAgent, label: "ESLint" },
      { id: "typecheck", agent: typecheckAgent, label: "TypeScript" },
      { id: "test", agent: testAgent, label: "Unit Tests" },
    ]}
    verdictOutput={outputs.verdict}
    strategy="all-pass"
  />
</Workflow>
```

## Notes

- Check task ids are `{prefix}-{checkId}`; verdict is `{prefix}-verdict`.
- `strategy` is passed as prompt context to the verdict agent, which interprets it.
- Use `command` instead of `agent` for shell-based checks.

---

## <ClassifyAndRoute>

> Classify items into categories, then route each to a category-specific agent in parallel.

```ts
// Props
import { ClassifyAndRoute } from "smithers-orchestrator";

type CategoryConfig = {
  agent: AgentLike;
  output?: OutputTarget;
  prompt?: (item: unknown) => string;
};

type ClassifyAndRouteProps = {
  id?: string;                                                       // default: "classify-and-route"
  items: unknown | unknown[];
  categories: Record<string, AgentLike | CategoryConfig>;
  classifierAgent: AgentLike;
  classifierOutput: OutputTarget;
  routeOutput: OutputTarget;
  classificationResult?: { classifications: Array<{ category: string; itemId?: string }> } | null;
  maxConcurrency?: number;                                           // default: Infinity
  skipIf?: boolean;
  children?: ReactNode;                                              // custom classifier prompt
};
```

```tsx
const classification = ctx.outputMaybe(outputs.classification, {
  nodeId: "classify-and-route-classify",
});

<Workflow name="support-router">
  <ClassifyAndRoute
    items={ctx.input.tickets}
    categories={{ billing: billingAgent, support: supportAgent, sales: salesAgent }}
    classifierAgent={classifierAgent}
    classifierOutput={outputs.classification}
    routeOutput={outputs.handled}
    classificationResult={classification}
  />
</Workflow>;
```

## Notes

- Two-phase: first render classifies; pass the result back via `classificationResult` to mount route handlers.
- Each entry's `category` must match a key in `categories`; unknown categories are silently skipped.
- Route tasks default to `continueOnFail`.

---

## <GatherAndSynthesize>

> Parallel gather from multiple sources, then synthesize into a unified result.

```ts
// Props
import { GatherAndSynthesize } from "smithers-orchestrator";

type SourceDef = {
  agent: AgentLike;
  prompt: string;
  output?: OutputTarget;
  children?: ReactNode;        // overrides prompt
};

type GatherAndSynthesizeProps = {
  id?: string;                                       // default: "gather-and-synthesize"
  sources: Record<string, SourceDef>;
  synthesizer: AgentLike;
  gatherOutput: OutputTarget;
  synthesisOutput: OutputTarget;
  gatheredResults?: Record<string, unknown> | null;  // typically from ctx.outputMaybe()
  maxConcurrency?: number;                           // default: Infinity
  synthesisPrompt?: string;
  skipIf?: boolean;
  children?: ReactNode;                              // overrides synthesisPrompt
};
```

```tsx
<Workflow name="research">
  <GatherAndSynthesize
    sources={{
      docs: { agent: docsAgent, prompt: "Search the documentation." },
      code: { agent: codeAgent, prompt: "Analyze the codebase." },
      issues: { agent: issueAgent, prompt: "Review open issues." },
    }}
    synthesizer={synthesisAgent}
    gatherOutput={outputs.gathered}
    synthesisOutput={outputs.synthesis}
    gatheredResults={gathered}
  />
</Workflow>
```

## Notes

- Synthesis task auto-receives `needs` for every source, gating it on all gathers.
- Source `children` takes priority over `prompt`.
- When `gatheredResults` is provided, it is folded into the default synthesis prompt.

---

## <Panel>

> Parallel specialist agents review the same input; a moderator synthesizes results.

```ts
// Props
import { Panel } from "smithers-orchestrator";

type PanelistConfig = { agent: AgentLike; role?: string; label?: string };

type PanelProps = {
  id?: string;                                           // default: "panel"
  panelists: PanelistConfig[] | AgentLike[];
  moderator: AgentLike;
  panelistOutput: OutputTarget;
  moderatorOutput: OutputTarget;
  strategy?: "synthesize" | "vote" | "consensus";        // default: "synthesize"
  minAgree?: number;                                     // for "vote" / "consensus"
  maxConcurrency?: number;                               // default: Infinity
  skipIf?: boolean;
  children: string | ReactNode;                          // prompt sent to every panelist
};
```

```tsx
<Workflow name="code-review-panel">
  <Panel
    panelists={[
      { agent: securityAgent, role: "Security Reviewer" },
      { agent: qualityAgent, role: "Code Quality Reviewer" },
      { agent: architectureAgent, role: "Architecture Reviewer" },
    ]}
    moderator={moderatorAgent}
    panelistOutput={outputs.review}
    moderatorOutput={outputs.synthesis}
  >
    Review the changes in src/auth/ for security, quality, and architecture concerns.
  </Panel>
</Workflow>
```

## Notes

- Panelist task ids: `{prefix}-{label|role|panelist-N}`; moderator is `{prefix}-moderator`.
- `strategy` and `minAgree` are passed as prompt context to the moderator, which interprets them.
- All panelists write to the same `panelistOutput` schema, differentiated by task id.

---

## <Debate>

> Adversarial multi-round debate between proposer and opponent, then judge verdict.

```ts
// Props
import { Debate } from "smithers-orchestrator";

type DebateProps = {
  id?: string;                       // default: "debate"
  proposer: AgentLike;               // arguing FOR
  opponent: AgentLike;               // arguing AGAINST
  judge: AgentLike;                  // renders final verdict
  rounds?: number;                   // default: 2
  argumentOutput: OutputTarget;
  verdictOutput: OutputTarget;
  topic: string | ReactNode;
  skipIf?: boolean;
};
```

```tsx
<Workflow name="architecture-debate">
  <Debate
    proposer={monolithAdvocate}
    opponent={microservicesAdvocate}
    judge={architectureJudge}
    rounds={3}
    argumentOutput={outputs.argument}
    verdictOutput={outputs.verdict}
    topic="Should we migrate from a monolith to microservices for the payments system?"
  />
</Workflow>
```

## Notes

- Task ids: `{prefix}-proposer`, `{prefix}-opponent`, `{prefix}-judge`, loop `{prefix}-loop`.
- Loop runs exactly `rounds` iterations with `onMaxReached="return-last"`.
- Proposer and opponent share `argumentOutput`, differentiated by task id.

---

## <Kanban>

> Process items through ordered columns with a pluggable ticket source.

```ts
// Props
import { Kanban } from "smithers-orchestrator";

type ColumnDef = {
  name: string;
  agent: AgentLike;
  output: OutputTarget;
  prompt?: (ctx: { item: unknown; column: string }) => string;
  task?: Partial<TaskProps>;                         // retries, timeoutMs, etc.
};

type KanbanProps = {
  id?: string;                                       // default: "kanban"
  columns: ColumnDef[];
  useTickets: () => Array<{ id: string }>;
  agents?: Record<string, AgentLike>;                // overrides column-level agents
  maxConcurrency?: number;                           // default: Infinity, per column
  onComplete?: OutputTarget;
  until?: boolean;                                   // default: false
  maxIterations?: number;                            // default: 5
  skipIf?: boolean;
  children?: ReactNode;                              // content for onComplete task
};
```

```tsx
const columns = [
  { name: "triage", agent: triageAgent, output: outputs.triage },
  { name: "work", agent: workerAgent, output: outputs.work },
  { name: "review", agent: reviewAgent, output: outputs.review },
];

<Workflow name="ticket-board">
  <Kanban
    columns={columns}
    useTickets={() => tickets}
    until={allDone}
    maxIterations={3}
  />
</Workflow>;
```

## Notes

- Item tasks default to `continueOnFail={true}`; use `column.task` to add retries or override.
- `useTickets` is called at render time; return different items per iteration for dynamic sources.
- Use `until` with `ctx.outputMaybe()` to exit when all items reach the final column.

---

## Recipes

> Tight, reusable patterns. Copy, paste, adapt.

Each recipe is a working snippet plus one line of context. They compose freely.

## Implement → review loop

Iterate until a reviewer signs off, with a hard cap.

```tsx
<Loop
  until={ctx.outputMaybe(outputs.review, { nodeId: "review" })?.approved === true}
  maxIterations={5}
  onMaxReached="return-last"
>
  <Sequence>
    <Task id="implement" output={outputs.impl} agent={implementer}>
      {`${ctx.input.task}\nPrior review: ${ctx.latest(outputs.review, "review")?.feedback ?? "none"}`}
    </Task>
    <Task id="review" output={outputs.review} agent={reviewer}>
      {`Review the latest implementation. Return { approved, feedback }.`}
    </Task>
  </Sequence>
</Loop>
```

Stop conditions must be measurable (boolean, count, array length). Avoid "looks good" prompts — agents are literal.

## Parallel multi-agent review

Two models catch different bugs. Cost = the slower model's latency.

```tsx
<Parallel>
  <Task id={`${ticket.id}:review-claude`} output={outputs.review} agent={claude} continueOnFail>
    <ReviewPrompt reviewer="claude" />
  </Task>
  <Task id={`${ticket.id}:review-codex`} output={outputs.review} agent={codex} continueOnFail>
    <ReviewPrompt reviewer="codex" />
  </Task>
</Parallel>
```

`continueOnFail` keeps one model's timeout from blocking the other.

## Approval gate with branching

Decision data drives the next branch.

```tsx
<Approval
  id="ship-decision"
  output={outputs.shipDecision}
  request={{ title: `Ship v${ctx.input.version}?`, summary: testReport }}
  onDeny="continue"
/>

{ctx.outputMaybe(outputs.shipDecision, { nodeId: "ship-decision" })?.approved
  ? <Task id="release" .../>
  : <Task id="rollback" .../>}
```

`onDeny`: `"fail"` aborts, `"continue"` proceeds without the gated branch, `"skip"` skips the gated tasks.

## Retry policy & timeouts

```tsx
<Task
  id="api-call"
  agent={agent}
  retries={3}
  retryPolicy={{ backoff: "exponential", initialDelayMs: 1000 }}
  timeoutMs={30_000}
>
  Call external API.
</Task>
```

Defaults to fit the work: simple tasks 30–60s + 1–2 retries, tool-heavy 2–5m + 1–2, large generations 5–10m + 0–1. Exponential backoff for rate-limited APIs.

## Optional, non-blocking step

```tsx
<Task id="lint" output={outputs.lint} agent={linter} continueOnFail>
  Run lint checks. Pipeline continues if this fails.
</Task>
```

Use for nice-to-have telemetry, lint, optional analysis.

## Conditional branch on output

```tsx
const analysis = ctx.outputMaybe(outputs.analysis, { nodeId: "analyze" });

{analysis?.risk === "high" ? (
  <Task id="escalate" output={outputs.escalation} agent={escalator}>
    {`Critical: ${analysis.summary}`}
  </Task>
) : null}
```

`ctx.outputMaybe` for control flow; `deps={{...}}` for typed data flow into prompts.

## Dynamic ticket discovery

Discover work, run each ticket, re-render to catch the next batch. Scales to large projects.

```tsx
export default smithers((ctx) => {
  const discover = ctx.latest(outputs.discover, "discover");
  const unfinished = (discover?.tickets ?? []).filter(
    (t) => !ctx.latest(outputs.report, `${t.id}:report`)
  );

  return (
    <Workflow name="big-project">
      <Sequence>
        <Branch if={unfinished.length === 0} then={<Discover />} />
        {unfinished.map((t) => (
          <TicketPipeline key={t.id} ticket={t} />
        ))}
      </Sequence>
    </Workflow>
  );
});
```

Use stable IDs (`t.id`, not array index) so resume matches.

## Coherent task with tools

One context boundary per logical operation, not per step. Splitting too finely loses cross-step reasoning.

```tsx
<Task id="fix-config-bugs" output={outputs.result} agent={agentWithTools}>
  {`Analyze config files in ${ctx.input.dir}, find bugs, fix them, write results.
   Use read, edit, bash. Return { summary, filesChanged }.`}
</Task>
```

## Per-agent least-privilege tools

```tsx
const analyst     = new Agent({ model, instructions: "Return JSON" });               // no tools
const reviewer    = new Agent({ model, instructions: "...", tools: { read, grep } }); // read-only
const implementer = new Agent({ model, instructions: "...", tools: { read, write, edit, bash } });
```

Match the tool surface to the role.

## Side-effect tools with idempotency

External mutations must mark themselves and use the runtime idempotency key.

```tsx
import { defineTool } from "smithers-orchestrator/tools";

const createTicket = defineTool({
  name: "jira.create",
  schema: z.object({ title: z.string() }),
  sideEffect: true,
  idempotent: false,
  async execute(args, ctx) {
    return jira.createIssue({ ...args, idempotencyKey: ctx.idempotencyKey });
  },
});
```

Retries reuse the same idempotency key, so a successful side effect from attempt 1 isn't doubled by attempt 2.

## Caching for iterative authoring

```tsx
<Workflow name="report" cache>
  <Task
    id="analyze"
    output={outputs.analysis}
    agent={analyst}
    cache={{ by: (ctx) => ({ repo: ctx.input.repo }), version: "v2" }}
  >
    {`Analyze ${ctx.input.repo}`}
  </Task>
  <Task id="report" output={outputs.report} agent={reporter} deps={{ analyze: outputs.analysis }}>
    {(deps) => `Report on ${deps.analyze.summary}`}
  </Task>
</Workflow>
```

Tweak the downstream Task without re-running the expensive upstream one. Don't cache side effects.

## Schemas in their own file

```ts
// schemas.ts
export const schemas = {
  analysis: z.object({ summary: z.string(), issues: z.array(z.string()) }),
  review:   z.object({ approved: z.boolean(), feedback: z.string() }),
  report:   z.object({ title: z.string(), body: z.string() }),
};

// workflow.tsx
import { schemas } from "./schemas";
const { Workflow, smithers, outputs } = createSmithers(schemas);
```

All data shapes in one place; new contributors read schemas.ts first.

## MDX prompt with auto-injected schema

```mdx
{/* Review.mdx */}
Review this code:

**Files**: {props.files.join(", ")}
**Tests**: {props.testsPassed}/{props.testsRun} passing

Return JSON matching schema:
{props.schema}
```

`props.schema` is the JSON-schema description of the Task's `outputSchema`, auto-injected. Keeps the prompt and the validator in sync.

## Custom hooks over `ctx`

```tsx
function useReviewState(ticketId: string) {
  const ctx = useCtx();
  const claude = ctx.latest("review", `${ticketId}:review-claude`);
  const codex  = ctx.latest("review", `${ticketId}:review-codex`);
  return { claude, codex, allApproved: !!(claude?.approved && codex?.approved) };
}
```

Workflow logic factors out into hooks the same way React UI logic does.

## VCS revert & per-attempt snapshots

Smithers records a jj change ID (or git SHA) per attempt. Revert any attempt to its exact workspace state:

```bash
bunx smithers-orchestrator revert workflow.tsx --run-id <id> --node-id implement --attempt 1
```

Useful when an experiment leaves the worktree in a bad state.

## Time travel: fork, replay, diff

```bash
bunx smithers-orchestrator timeline <run-id> --tree
bunx smithers-orchestrator diff <run-id> <node-id>
bunx smithers-orchestrator fork workflow.tsx --run-id <id> --frame 5 --reset-node analyze --label exp1
bunx smithers-orchestrator replay workflow.tsx --run-id <id> --frame 5 --restore-vcs
```

Fork makes a child run; replay re-executes from the snapshot in the same run. `--restore-vcs` checks out the original revision so re-execution sees the same source.

## Scoring tasks

```tsx
import { schemaAdherenceScorer, latencyScorer, llmJudge } from "smithers-orchestrator/scorers";

<Task
  id="analyze"
  output={outputs.analysis}
  agent={analyst}
  scorers={{
    schema:  { scorer: schemaAdherenceScorer() },
    latency: { scorer: latencyScorer({ targetMs: 5000 }) },
    quality: {
      scorer: llmJudge({ model: claude, prompt: "Rate the analysis quality 0-1" }),
      sampling: { kind: "ratio", ratio: 0.1 },
    },
  }}
>
  Analyze...
</Task>
```

Scorers run after the task and never block. Sample expensive scorers with `ratio`.

## Continue-as-new for very long runs

A run with too much accumulated state hands off to a fresh run with carried state.

```tsx
<ContinueAsNew when={iterationCount > 100} carry={{ summary: rolledUpState }} />
```

Avoids unbounded SQLite growth in long-lived loops.

## Hot reload while authoring

```bash
bunx smithers-orchestrator up workflow.tsx --hot true
```

Edits to the workflow source apply on the next render frame without losing in-flight task state. Schema changes still require a fresh run.

## Read next

- [How It Works](/how-it-works) — the model these recipes plug into.
- [Components](/components/workflow) — full prop surface.
- [CLI](/cli/overview) — every command.

---

## Types

> Public TypeScript surface for smithers-orchestrator.

One source of truth: `tsc --emitDeclarationOnly` would produce something close to this. Import these types from `smithers-orchestrator` unless noted otherwise.

```ts
// =============================================================================
// Workflow
// =============================================================================

interface SmithersWorkflow<Schema = unknown> {
  readonly readableName?: string;
  readonly description?: string;
  readonly db?: unknown;
  readonly build: (ctx: SmithersCtx<Schema>) => JSX.Element;
  readonly opts: SmithersWorkflowOptions;
  readonly schemaRegistry?: Map<string, SchemaRegistryEntry>;
}

type SmithersWorkflowOptions = {
  alertPolicy?: SmithersAlertPolicy;
  cache?: boolean;
  workflowHash?: string;
};

type SchemaRegistryEntry = {
  table: any;
  zodSchema: import("zod").ZodObject<any>;
};

type SmithersAlertPolicy = {
  defaults?: SmithersAlertPolicyDefaults;
  rules?: Record<string, SmithersAlertPolicyRule>;
  reactions?: Record<string, SmithersAlertReaction>;
};

type SmithersAlertSeverity = "info" | "warning" | "critical";
type SmithersAlertLabels = Record<string, string>;
type SmithersAlertPolicyDefaults = {
  owner?: string;
  severity?: SmithersAlertSeverity;
  runbook?: string;
  labels?: SmithersAlertLabels;
};
type SmithersAlertPolicyRule = SmithersAlertPolicyDefaults & {
  afterMs?: number;
  reaction?: string | SmithersAlertReaction;
};
type SmithersAlertReaction =
  | { kind: "emit-only" }
  | { kind: "pause" }
  | { kind: "cancel" }
  | { kind: "open-approval" }
  | { kind: "deliver"; destination: string };

// =============================================================================
// Context
// =============================================================================

declare class SmithersCtx<Schema = unknown> {
  readonly runId: string;
  readonly iteration: number;
  readonly iterations?: Record<string, number>;
  readonly input: Schema extends { input: infer T } ? T : any;
  readonly auth: RunAuthContext | null;
  readonly outputs: OutputAccessor<Schema>;

  output(table: any, key: OutputKey): any;
  outputMaybe(table: any, key: OutputKey): any | undefined;
  latest(table: any, nodeId: string): any | undefined;
  latestArray(value: unknown, schema: any): unknown[];
  iterationCount(table: any, nodeId: string): number;
}

type OutputKey = { nodeId: string; iteration?: number };
type OutputAccessor<Schema> = ((table: any) => any[]) & Record<string, any[]>;
type InferRow<TTable> = TTable extends { $inferSelect: infer R } ? R : never;
type InferOutputEntry<T> =
  T extends import("zod").ZodTypeAny ? import("zod").infer<T>
  : T extends { $inferSelect: any } ? InferRow<T>
  : never;

type RunAuthContext = {
  triggeredBy: string;
  scopes: string[];
  role: string;
  createdAt: string;
};

// =============================================================================
// Run
// =============================================================================

type RunOptions = {
  runId?: string;
  parentRunId?: string | null;
  input: Record<string, unknown>;
  maxConcurrency?: number;          // default 4
  onProgress?: (e: SmithersEvent) => void;
  signal?: AbortSignal;
  resume?: boolean;
  force?: boolean;                  // resume even if marked running
  workflowPath?: string;
  rootDir?: string;
  logDir?: string | null;
  allowNetwork?: boolean;           // default false; bash tool network access
  maxOutputBytes?: number;          // default 200000
  toolTimeoutMs?: number;           // default 60000
  hot?: boolean | HotReloadOptions;
  auth?: RunAuthContext | null;
  config?: Record<string, unknown>;
  cliAgentToolsDefault?: "all" | "explicit-only";  // default "all"
  resumeClaim?: {                   // internal supervisor coordination
    claimOwnerId: string;
    claimHeartbeatAtMs: number;
    restoreRuntimeOwnerId?: string | null;
    restoreHeartbeatAtMs?: number | null;
  };
};

type HotReloadOptions = {
  rootDir?: string;
  outDir?: string;                  // default .smithers/hmr/<runId>
  maxGenerations?: number;          // default 3
  cancelUnmounted?: boolean;        // default false
  debounceMs?: number;              // default 100
};

type RunResult = {
  readonly runId: string;
  readonly status: RunStatus;
  readonly output?: unknown;
  readonly error?: unknown;
  readonly nextRunId?: string;      // set when the run continued-as-new
};

type RunStatus =
  | "running"
  | "waiting-approval"
  | "waiting-event"
  | "waiting-timer"
  | "finished"
  | "continued"
  | "failed"
  | "cancelled";

type RetryTaskOptions = {
  runId: string;
  nodeId: string;
  iteration?: number;
  resetDependents?: boolean;        // default true
  force?: boolean;                  // default false
  onProgress?: (e: SmithersEvent) => void;
};

type RetryTaskResult = {
  success: boolean;
  resetNodes: string[];
  error?: string;
};

// =============================================================================
// Task
// =============================================================================

type TaskDescriptor = {
  nodeId: string;
  ordinal: number;
  iteration: number;
  ralphId?: string;
  dependsOn?: string[];
  needs?: Record<string, string>;
  worktreeId?: string;
  worktreePath?: string;
  worktreeBranch?: string;
  worktreeBaseBranch?: string;
  outputTable: unknown | null;
  outputTableName: string;
  outputRef?: import("zod").ZodObject<any>;
  outputSchema?: import("zod").ZodObject<any>;
  parallelGroupId?: string;
  parallelMaxConcurrency?: number;
  needsApproval: boolean;
  waitAsync?: boolean;
  approvalMode?: "gate" | "decision" | "select" | "rank";
  approvalOnDeny?: "fail" | "continue" | "skip";
  approvalOptions?: ApprovalOption[];
  approvalAllowedScopes?: string[];
  approvalAllowedUsers?: string[];
  approvalAutoApprove?: {
    after?: number;
    audit?: boolean;
    conditionMet?: boolean;
    revertOnMet?: boolean;
  };
  skipIf: boolean;
  retries: number;
  retryPolicy?: RetryPolicy;
  timeoutMs: number | null;
  heartbeatTimeoutMs: number | null;
  continueOnFail: boolean;
  cachePolicy?: CachePolicy;
  agent?: AgentLike | AgentLike[];
  prompt?: string;
  staticPayload?: unknown;
  computeFn?: () => unknown | Promise<unknown>;
  label?: string;
  meta?: Record<string, unknown>;
  scorers?: ScorersMap;
  memoryConfig?: TaskMemoryConfig;
};

type RetryPolicy = {
  backoff?: "fixed" | "linear" | "exponential";   // default "fixed"
  initialDelayMs?: number;                         // default 0
  maxDelayMs?: number;
  multiplier?: number;
  jitter?: boolean;
};

type CachePolicy<Ctx = any> = {
  by?: (ctx: Ctx) => unknown;
  version?: string;
  key?: string;
  ttlMs?: number;
  scope?: "run" | "workflow" | "global";
};

type AgentLike = {
  id?: string;
  tools?: Record<string, any>;
  capabilities?: any;
  generate: (args: any) => Promise<any>;
};

type TaskMemoryConfig = {
  recall?: { namespace?: MemoryNamespace; query?: string; topK?: number };
  remember?: { namespace?: MemoryNamespace; key?: string };
  threadId?: string;
};

type MemoryNamespace = { kind: MemoryNamespaceKind; id: string };
type MemoryNamespaceKind = "workflow" | "agent" | "user" | "global";

// =============================================================================
// Graph
// =============================================================================

type GraphSnapshot = {
  readonly runId: string;
  readonly frameNo: number;
  readonly xml: XmlNode | null;
  readonly tasks: readonly TaskDescriptor[];
};

type XmlNode = XmlElement | XmlText;

type XmlElement = {
  readonly kind: "element";
  readonly tag: string;             // "Workflow" | "Task" | "Sequence" | ...
  readonly props: Record<string, string>;
  readonly children: readonly XmlNode[];
};

type XmlText = { readonly kind: "text"; readonly text: string };

// =============================================================================
// Events
// =============================================================================
//
// `SmithersEvent` is a discriminated union of every lifecycle event the runtime
// emits. The full union (~50 variants) is documented separately to keep this
// file usable as the everyday type reference.
//
// See: docs/reference/event-types.mdx (rendered) or /llms-events.txt (LLM fragment).

type SmithersEvent = { type: string; runId: string; timestampMs: number } & Record<string, unknown>;
// (Each variant has additional fields per its `type`. See event-types.)

// =============================================================================
// Component props
// =============================================================================

type WorkflowProps = {
  name: string;
  cache?: boolean;
  children?: React.ReactNode;
};

type OutputTarget = import("zod").ZodObject<any> | { $inferSelect: any } | string;
type DepsSpec = Record<string, OutputTarget>;
type InferDeps<D extends DepsSpec> = {
  [K in keyof D]: D[K] extends string ? unknown : InferOutputEntry<D[K]>;
};

type TaskProps<Row, Output extends OutputTarget = OutputTarget, D extends DepsSpec = {}> = {
  key?: string;
  id: string;
  output: Output;
  outputSchema?: import("zod").ZodObject<any>;
  agent?: AgentLike | AgentLike[];
  fallbackAgent?: AgentLike;
  dependsOn?: string[];
  needs?: Record<string, string>;
  deps?: D;
  skipIf?: boolean;
  needsApproval?: boolean;
  async?: boolean;                  // only with needsApproval
  timeoutMs?: number;
  heartbeatTimeoutMs?: number;
  noRetry?: boolean;
  retries?: number;                 // default Infinity (set 0 to disable)
  retryPolicy?: RetryPolicy;        // default exponential, 1000ms, capped 5min
  continueOnFail?: boolean;
  cache?: CachePolicy;
  scorers?: ScorersMap;
  memory?: TaskMemoryConfig;
  allowTools?: string[];            // CLI-agent tool allowlist
  label?: string;
  meta?: Record<string, unknown>;
  children: string | Row | (() => Row | Promise<Row>) | React.ReactNode | ((deps: InferDeps<D>) => Row | React.ReactNode);
};

type SequenceProps  = { skipIf?: boolean; children?: React.ReactNode };
type ParallelProps  = { id?: string; maxConcurrency?: number; skipIf?: boolean; children?: React.ReactNode };
type BranchProps    = { if: boolean; then: React.ReactElement; else?: React.ReactElement | null; skipIf?: boolean };
type LoopProps      = {
  id?: string;
  until?: boolean;
  maxIterations?: number;
  onMaxReached?: "fail" | "return-last";   // default "return-last"
  continueAsNewEvery?: number;
  skipIf?: boolean;
  children?: React.ReactNode;
};
type RalphProps     = LoopProps;            // deprecated alias

type ApprovalDecision  = { approved: boolean; note: string | null; decidedBy: string | null; decidedAt: string | null };
type ApprovalSelection = { selected: string; notes: string | null };
type ApprovalRanking   = { ranked: string[]; notes: string | null };
type ApprovalRequest   = { title: string; summary?: string; metadata?: Record<string, unknown> };
type ApprovalMode      = "approve" | "select" | "rank";
type ApprovalOption    = { key: string; label: string; summary?: string; metadata?: Record<string, unknown> };
type ApprovalAutoApprove = {
  after?: number;
  condition?: ((ctx: any) => boolean) | (() => boolean);
  audit?: boolean;
  revertOn?: ((ctx: any) => boolean) | (() => boolean);
};

type ApprovalProps<Row = ApprovalDecision, Output extends OutputTarget = OutputTarget> = {
  id: string;
  mode?: ApprovalMode;
  options?: ApprovalOption[];
  output: Output;
  outputSchema?: import("zod").ZodObject<any>;
  request: ApprovalRequest;
  onDeny?: "fail" | "continue" | "skip";
  allowedScopes?: string[];
  allowedUsers?: string[];
  autoApprove?: ApprovalAutoApprove;
  async?: boolean;
  dependsOn?: string[];
  needs?: Record<string, string>;
  skipIf?: boolean;
  timeoutMs?: number;
  heartbeatTimeoutMs?: number;
  retries?: number;
  retryPolicy?: RetryPolicy;
  continueOnFail?: boolean;
  cache?: CachePolicy;
  label?: string;
  meta?: Record<string, unknown>;
  key?: string;
  children?: React.ReactNode;
};

type SignalProps<S extends import("zod").ZodObject<any> = import("zod").ZodObject<any>> = {
  id: string;
  schema: S;
  correlationId?: string;
  timeoutMs?: number;
  onTimeout?: "fail" | "skip" | "continue";
  async?: boolean;
  skipIf?: boolean;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
  key?: string;
  children?: (data: import("zod").infer<S>) => React.ReactNode;
};

type WaitForEventProps = {
  id: string;
  event: string;
  correlationId?: string;
  output: OutputTarget;
  outputSchema?: import("zod").ZodObject<any>;
  timeoutMs?: number;
  onTimeout?: "fail" | "skip" | "continue";
  async?: boolean;
  skipIf?: boolean;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
  key?: string;
};

type TimerProps = {
  id: string;
  duration?: string;                // e.g. "30s", "5m"
  until?: string | Date;            // absolute timestamp
  every?: string;                   // periodic
  skipIf?: boolean;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
  key?: string;
};

type SagaStepDef    = { id: string; action: React.ReactElement; compensation: React.ReactElement; label?: string };
type SagaProps      = { id?: string; steps?: SagaStepDef[]; onFailure?: "compensate" | "compensate-and-fail" | "fail"; skipIf?: boolean; children?: React.ReactNode };
type SagaStepProps  = { id: string; compensation: React.ReactElement; children: React.ReactElement };

type TryCatchFinallyProps = {
  id?: string;
  try: React.ReactElement;
  catch?: React.ReactElement | ((error: SmithersError) => React.ReactElement);
  catchErrors?: SmithersErrorCode[];
  finally?: React.ReactElement;
  skipIf?: boolean;
};

// Higher-level composites
type PollerProps = {
  id?: string;
  check: AgentLike | ((...args: any[]) => any);
  checkOutput: OutputTarget;
  maxAttempts?: number;
  backoff?: "fixed" | "linear" | "exponential";
  intervalMs?: number;
  onTimeout?: "fail" | "return-last";
  skipIf?: boolean;
  children?: React.ReactNode;
};

type ColumnDef = {
  name: string;
  agent: AgentLike;
  output: OutputTarget;
  prompt?: (ctx: { item: unknown; column: string }) => string;
  task?: Partial<TaskProps<unknown>>;
};

type KanbanProps = {
  id?: string;
  columns: ColumnDef[];
  useTickets: () => Array<{ id: string; [key: string]: unknown }>;
  agents?: Record<string, AgentLike>;
  maxConcurrency?: number;
  onComplete?: OutputTarget;
  until?: boolean;
  maxIterations?: number;
  skipIf?: boolean;
  children?: React.ReactNode | Record<string, unknown>;
};

// Sandbox
type SandboxRuntime = "bubblewrap" | "docker" | "codeplane";
type SandboxVolumeMount = { host: string; container: string; readonly?: boolean };
type SandboxWorkspaceSpec = {
  name: string;
  snapshotId?: string;
  idleTimeoutSecs?: number;
  persistence?: "ephemeral" | "sticky";
};

type SandboxProps = {
  id: string;
  workflow?: (...args: any[]) => any;
  input?: unknown;
  output: OutputTarget;
  runtime?: SandboxRuntime;
  allowNetwork?: boolean;
  reviewDiffs?: boolean;
  autoAcceptDiffs?: boolean;
  image?: string;
  env?: Record<string, string>;
  ports?: Array<{ host: number; container: number }>;
  volumes?: SandboxVolumeMount[];
  memoryLimit?: string;
  cpuLimit?: string;
  command?: string;
  workspace?: SandboxWorkspaceSpec;
  skipIf?: boolean;
  timeoutMs?: number;
  heartbeatTimeoutMs?: number;
  retries?: number;
  retryPolicy?: RetryPolicy;
  continueOnFail?: boolean;
  cache?: CachePolicy;
  dependsOn?: string[];
  needs?: Record<string, string>;
  label?: string;
  meta?: Record<string, unknown>;
  key?: string;
  children?: React.ReactNode;
};

// =============================================================================
// Errors
// =============================================================================
//
// Every Smithers error is a SmithersError with a typed code. See the Errors page
// for the full list of built-in codes.

declare class SmithersError extends Error {
  readonly code: SmithersErrorCode;
  readonly summary: string;
  readonly docsUrl: string;
  readonly details?: Record<string, unknown>;
  readonly cause?: unknown;
}

type SmithersErrorCode = KnownSmithersErrorCode | (string & {});
type KnownSmithersErrorCode =
  | "INVALID_INPUT" | "MISSING_INPUT" | "MISSING_INPUT_TABLE" | "RESUME_METADATA_MISMATCH"
  | "UNKNOWN_OUTPUT_SCHEMA" | "INVALID_OUTPUT" | "WORKTREE_CREATE_FAILED" | "VCS_NOT_FOUND"
  | "SNAPSHOT_NOT_FOUND" | "VCS_WORKSPACE_CREATE_FAILED" | "TASK_TIMEOUT" | "TASK_ABORTED"
  | "RUN_NOT_FOUND" | "NODE_NOT_FOUND" | "UI_COMMAND_FAILED" | "INVALID_EVENTS_OPTIONS"
  | "SANDBOX_BUNDLE_INVALID" | "SANDBOX_BUNDLE_TOO_LARGE" | "WORKFLOW_EXECUTION_FAILED"
  | "SANDBOX_EXECUTION_FAILED" | "TASK_HEARTBEAT_TIMEOUT" | "HEARTBEAT_PAYLOAD_TOO_LARGE"
  | "HEARTBEAT_PAYLOAD_NOT_JSON_SERIALIZABLE" | "RUN_CANCELLED" | "RUN_NOT_RESUMABLE"
  | "RUN_OWNER_ALIVE" | "RUN_STILL_RUNNING" | "RUN_RESUME_CLAIM_LOST" | "RUN_RESUME_CLAIM_FAILED"
  | "RUN_RESUME_ACTIVATION_FAILED" | "RUN_HIJACKED" | "CONTINUATION_STATE_TOO_LARGE"
  | "INVALID_CONTINUATION_STATE" | "RALPH_MAX_REACHED" | "SCHEDULER_ERROR" | "SESSION_ERROR"
  | "TASK_ID_REQUIRED" | "TASK_MISSING_OUTPUT" | "DUPLICATE_ID" | "NESTED_LOOP"
  | "WORKTREE_EMPTY_PATH" | "MDX_PRELOAD_INACTIVE" | "CONTEXT_OUTSIDE_WORKFLOW"
  | "MISSING_OUTPUT" | "DEP_NOT_SATISFIED" | "ASPECT_BUDGET_EXCEEDED" | "APPROVAL_OUTSIDE_TASK"
  | "APPROVAL_OPTIONS_REQUIRED" | "WORKFLOW_MISSING_DEFAULT"
  | "TOOL_PATH_INVALID" | "TOOL_PATH_ESCAPE" | "TOOL_FILE_TOO_LARGE" | "TOOL_CONTENT_TOO_LARGE"
  | "TOOL_PATCH_TOO_LARGE" | "TOOL_PATCH_FAILED" | "TOOL_NETWORK_DISABLED"
  | "TOOL_GIT_REMOTE_DISABLED" | "TOOL_COMMAND_FAILED" | "TOOL_GREP_FAILED"
  | "AGENT_CLI_ERROR" | "AGENT_RPC_FILE_ARGS" | "AGENT_BUILD_COMMAND" | "AGENT_DIAGNOSTIC_TIMEOUT"
  | "DB_MISSING_COLUMNS" | "DB_REQUIRES_BUN_SQLITE" | "DB_QUERY_FAILED" | "DB_WRITE_FAILED"
  | "STORAGE_ERROR" | "INTERNAL_ERROR" | "PROCESS_ABORTED" | "PROCESS_TIMEOUT"
  | "PROCESS_IDLE_TIMEOUT" | "PROCESS_SPAWN_FAILED" | "TASK_RUNTIME_UNAVAILABLE"
  | "SCHEMA_CHANGE_HOT" | "HOT_OVERLAY_FAILED" | "HOT_RELOAD_INVALID_MODULE"
  | "SCORER_FAILED" | "WORKFLOW_EXISTS" | "PROMPT_EXISTS" | "PROMPT_MDX_INVALID"
  | "TICKET_EXISTS" | "TICKET_NOT_FOUND" | "CLI_DB_NOT_FOUND" | "CLI_AGENT_UNSUPPORTED"
  | "PI_HTTP_ERROR" | "EXTERNAL_BUILD_FAILED" | "SCHEMA_DISCOVERY_FAILED"
  | "OPENAPI_SPEC_LOAD_FAILED" | "OPENAPI_OPERATION_NOT_FOUND" | "OPENAPI_TOOL_EXECUTION_FAILED";

// =============================================================================
// Server
// =============================================================================

type ServerOptions = {
  port?: number;
  db?: unknown;
  authToken?: string;
  maxBodyBytes?: number;
  rootDir?: string;
  allowNetwork?: boolean;
  headersTimeout?: number;
  requestTimeout?: number;
};

type ServeOptions = {
  workflow: SmithersWorkflow<any>;
  adapter: any;
  runId: string;
  abort: AbortController;
  authToken?: string;
  metrics?: boolean;
};

type GatewayTokenGrant = { role: string; scopes: string[]; userId?: string };
type GatewayAuthConfig =
  | { mode: "token"; tokens: Record<string, GatewayTokenGrant> }
  | { mode: "jwt"; issuer: string; audience: string | string[]; secret: string;
      scopesClaim?: string; roleClaim?: string; userClaim?: string;
      defaultRole?: string; defaultScopes?: string[]; clockSkewSeconds?: number }
  | { mode: "trusted-proxy"; trustedHeaders?: string[]; allowedOrigins?: string[];
      defaultRole?: string; defaultScopes?: string[] };

type GatewayOptions = {
  protocol?: number;
  features?: string[];
  heartbeatMs?: number;
  auth?: GatewayAuthConfig;
  defaults?: { cliAgentTools?: "all" | "explicit-only" };
  maxBodyBytes?: number;
  maxPayload?: number;
  maxConnections?: number;
  eventWindowSize?: number;
  headersTimeout?: number;
  requestTimeout?: number;
};

// =============================================================================
// Scorers (smithers-orchestrator/scorers)
// =============================================================================

type ScoreResult  = { score: number; reason?: string; meta?: Record<string, unknown> };
type ScorerInput  = { input: unknown; output: unknown; groundTruth?: unknown; context?: unknown; latencyMs?: number; outputSchema?: import("zod").ZodObject<any> };
type ScorerFn     = (input: ScorerInput) => Promise<ScoreResult>;
type Scorer       = { id: string; name: string; description: string; score: ScorerFn };
type SamplingConfig =
  | { type: "all" }
  | { type: "ratio"; rate: number }
  | { type: "none" };
type ScorerBinding = { scorer: Scorer; sampling?: SamplingConfig };
type ScorersMap    = Record<string, ScorerBinding>;

type LlmJudgeConfig    = { model: string; systemPrompt?: string; temperature?: number; maxTokens?: number };
type CreateScorerConfig = {
  id: string;
  name: string;
  description: string;
  model: string;
  criteria: string;
  examples?: Array<{ input: unknown; output: unknown; score: number; explanation: string }>;
};

// =============================================================================
// Memory (smithers-orchestrator/memory)
// =============================================================================

type MemoryFact    = { key: string; value: unknown; metadata?: Record<string, unknown>; createdAt?: number; expiresAt?: number };
type MemoryMessage = { role: "user" | "assistant" | "system"; content: string; createdAt?: number };
type MemoryThread  = { id: string; messages: MemoryMessage[] };

type MemoryStore = {
  set(namespace: MemoryNamespace, key: string, value: unknown): Promise<void>;
  get(namespace: MemoryNamespace, key: string): Promise<unknown | null>;
  recall(namespace: MemoryNamespace, query: string, topK?: number): Promise<MemoryFact[]>;
  saveMessage(threadId: string, message: MemoryMessage): Promise<void>;
  getMessages(threadId: string): Promise<MemoryMessage[]>;
};

// =============================================================================
// OpenAPI tools (smithers-orchestrator/openapi)
// =============================================================================

type OpenApiAuth =
  | { type: "none" }
  | { type: "apiKey"; name: string; in: "header" | "query" | "cookie"; value: string }
  | { type: "bearer"; token: string }
  | { type: "basicAuth"; username: string; password: string };

type OpenApiToolsOptions = {
  spec: unknown | string;            // OpenAPI spec object or path/URL
  auth?: OpenApiAuth;
  baseUrl?: string;
  includeOperations?: string[];
  excludeOperations?: string[];
};

// =============================================================================
// CreateSmithers (createSmithers(...) return)
// =============================================================================

type CreateSmithersApi<Schema = any> = {
  Workflow: (props: WorkflowProps) => React.ReactElement;
  Approval: <Row>(props: ApprovalProps<Row>) => React.ReactElement;
  Task: <Row, D extends DepsSpec = {}>(props: TaskProps<Row, any, D>) => React.ReactElement;
  Sequence: (props: SequenceProps) => React.ReactElement;
  Parallel: (props: ParallelProps) => React.ReactElement;
  Branch: (props: BranchProps) => React.ReactElement;
  Loop: (props: LoopProps) => React.ReactElement;
  Ralph: (props: LoopProps) => React.ReactElement;
  Worktree: any;
  Sandbox: (props: SandboxProps) => React.ReactElement;
  Signal: <S extends import("zod").ZodObject<any>>(props: SignalProps<S>) => React.ReactElement;
  Timer: (props: TimerProps) => React.ReactElement;
  ContinueAsNew: any;
  continueAsNew: any;
  useCtx: () => SmithersCtx<Schema>;
  smithers: (build: (ctx: SmithersCtx<Schema>) => React.ReactElement, opts?: SmithersWorkflowOptions) => SmithersWorkflow<Schema>;
  db: any;
  tables: Record<string, any>;
  outputs: Record<string, any>;
};

// =============================================================================
// Observability (smithers-orchestrator/observability)
// =============================================================================

type SmithersLogFormat = "json" | "pretty";
type SmithersObservabilityService = { emit(event: SmithersEvent): void | Promise<void> };
type SmithersObservabilityOptions = { service?: SmithersObservabilityService; logFormat?: SmithersLogFormat };
type ResolvedSmithersObservabilityOptions = SmithersObservabilityOptions & { metricsPort?: number; metricsPath?: string };
```

For canonical, machine-checked types, install `smithers-orchestrator` and use editor go-to-definition. For runtime errors, see [Errors](/reference/errors).

---

## Error Reference

> Exhaustive Smithers error codes, typed error helpers, and HTTP API error responses.

```ts
import {
  ERROR_REFERENCE_URL,
  SmithersErrorInstance,
  errorToJson,
  getSmithersErrorDefinition,
  getSmithersErrorDocsUrl,
  isKnownSmithersErrorCode,
  isSmithersError,
  knownSmithersErrorCodes,
} from "smithers-orchestrator";
import type {
  KnownSmithersErrorCode,
  SmithersError,
  SmithersErrorCode,
} from "smithers-orchestrator";
```

Every built-in `SmithersErrorInstance` carries three pieces of documentation metadata:

| Field | Meaning |
|---|---|
| `message` | Human-readable message with a docs link appended. |
| `summary` | Raw message without the docs suffix. |
| `docsUrl` | Reference URL for Smithers errors. |

Use `KnownSmithersErrorCode` for an exhaustive switch over built-in Smithers codes. `SmithersErrorCode` includes the `(string & {})` escape hatch for user-defined custom codes.

| Export | Kind | Description |
|---|---|---|
| `SmithersErrorInstance` | class | Runtime error class used throughout Smithers internals. |
| `isSmithersError(err)` | function | Type guard for values carrying a Smithers-style `code`. |
| `isKnownSmithersErrorCode(code)` | function | Narrows a string to the built-in exhaustive error-code union. |
| `knownSmithersErrorCodes` | value | Array of every built-in Smithers error code documented on this page. |
| `getSmithersErrorDocsUrl(code)` | function | Returns the docs URL appended to built-in error messages. |
| `getSmithersErrorDefinition(code)` | function | Returns category, description, and details metadata for known codes. |
| `errorToJson(err)` | function | Serializes `message`, `summary`, `docsUrl`, `code`, `details`, `cause`, and `stack`. |
| `ERROR_REFERENCE_URL` | value | Base docs URL for Smithers runtime errors. |
| `KnownSmithersErrorCode` | type | Exact built-in Smithers code union. |
| `SmithersErrorCode` | type | Built-in codes plus the custom string escape hatch. |
| `SmithersError` | type | Public typed shape for serialized Smithers errors. |

```ts
try {
  await runWorkflow(workflow, { input: {} });
} catch (err) {
  if (isSmithersError(err) && isKnownSmithersErrorCode(err.code)) {
    switch (err.code) {
      case "INVALID_INPUT":
        console.error("Bad input:", err.summary);
        break;
      case "AGENT_CLI_ERROR":
        console.error("Agent failed:", err.summary);
        break;
      default:
        console.error(`[${err.code}] ${err.summary}`);
    }

    console.error("Docs:", err.docsUrl);
  }
}
```

## Engine

| Code | When | Details |
|---|---|---|
| `INVALID_INPUT` | Workflow input fails validation or the runtime receives a non-object input payload. | -- |
| `MISSING_INPUT` | A resume run references an input row that is missing from the database. | -- |
| `MISSING_INPUT_TABLE` | The workflow schema does not expose the expected input table during resume or hydration. | -- |
| `RESUME_METADATA_MISMATCH` | Stored run metadata no longer matches the workflow being resumed. | -- |
| `UNKNOWN_OUTPUT_SCHEMA` | A task references an output table that is not present in the schema registry. | -- |
| `INVALID_OUTPUT` | Agent output cannot be parsed or validated against the declared output schema. | -- |
| `WORKTREE_CREATE_FAILED` | Smithers fails to create or hydrate a git or jj worktree for a task. | `{ worktreePath, vcsType, branch? }` |
| `VCS_NOT_FOUND` | No supported git or jj repository root can be found for the workflow. | `{ rootDir }` |
| `SNAPSHOT_NOT_FOUND` | A requested time-travel snapshot or frame does not exist. | `{ runId, frameNo }` |
| `VCS_WORKSPACE_CREATE_FAILED` | Smithers fails to materialize a jj workspace for time-travel or replay. | `{ runId, frameNo, vcsPointer, workspacePath }` |
| `TASK_TIMEOUT` | A task compute callback exceeds its configured timeout. | `{ nodeId, attempt, timeoutMs }` |
| `TASK_ABORTED` | A running task is aborted through an AbortSignal or shutdown path. | -- |
| `RUN_NOT_FOUND` | A CLI or engine command references a run ID that does not exist in the database. | `{ runId }` |
| `NODE_NOT_FOUND` | A CLI command references a node ID that does not exist for the given run. | `{ runId, nodeId }` |
| `UI_COMMAND_FAILED` | The smithers ui command fails to open the browser or probe the server. | `{ url }` |
| `INVALID_EVENTS_OPTIONS` | The smithers events command receives invalid filter options. | -- |
| `SANDBOX_BUNDLE_INVALID` | A sandbox bundle fails validation (missing README, invalid manifest, etc.). | `{ bundlePath }` |
| `SANDBOX_BUNDLE_TOO_LARGE` | A sandbox bundle exceeds the maximum allowed size. | `{ bundlePath, maxBytes }` |
| `WORKFLOW_EXECUTION_FAILED` | A child or builder workflow exits unsuccessfully without surfacing a typed error payload. | `{ status }` |
| `SANDBOX_EXECUTION_FAILED` | Sandbox setup or execution fails before a more specific sandbox error can be emitted. | `{ sandboxId, runId?, maxConcurrent?, activeSandboxCount? }` |
| `TASK_HEARTBEAT_TIMEOUT` | A task has not heartbeated within its configured timeout. | `{ nodeId, iteration, attempt, timeoutMs, staleForMs, lastHeartbeatAtMs }` |
| `HEARTBEAT_PAYLOAD_TOO_LARGE` | A task heartbeat payload exceeds the maximum allowed size. | `{ nodeId, sizeBytes, maxBytes }` |
| `HEARTBEAT_PAYLOAD_NOT_JSON_SERIALIZABLE` | A task heartbeat payload cannot be serialized to JSON. | `{ nodeId }` |
| `RUN_CANCELLED` | A run is cancelled while runtime work is still active. | `{ runId }` |
| `RUN_NOT_RESUMABLE` | A resume request targets a run state that cannot be resumed. | `{ runId, status }` |
| `RUN_OWNER_ALIVE` | Resume recovery is skipped because the previous runtime owner is still heartbeating. | `{ runId, runtimeOwnerId }` |
| `RUN_STILL_RUNNING` | A recovery or resume operation finds a run that is still active. | `{ runId }` |
| `RUN_RESUME_CLAIM_LOST` | A runtime loses the resume claim before it can update the run. | `{ runId, runtimeOwnerId }` |
| `RUN_RESUME_CLAIM_FAILED` | A runtime cannot claim a stale run for resume. | `{ runId, runtimeOwnerId }` |
| `RUN_RESUME_ACTIVATION_FAILED` | A claimed run cannot be moved back into active execution. | `{ runId, runtimeOwnerId }` |
| `RUN_HIJACKED` | A run is interrupted because another runtime hijacked execution. | `{ runId, hijackTarget }` |
| `CONTINUATION_STATE_TOO_LARGE` | Continue-as-new state exceeds the configured serialized size limit. | `{ runId, sizeBytes, maxBytes }` |
| `INVALID_CONTINUATION_STATE` | Continue-as-new state cannot be parsed or applied. | -- |
| `RALPH_MAX_REACHED` | A Ralph loop reaches maxIterations with fail-on-max behavior. | `{ ralphId, maxIterations }` |
| `SCHEDULER_ERROR` | The scheduler cannot produce a valid execution decision. | -- |
| `SESSION_ERROR` | The workflow session state machine reaches an invalid or failed state. | -- |

## Components

| Code | When | Details |
|---|---|---|
| `TASK_ID_REQUIRED` | `<Task>` is missing a valid string id. | -- |
| `TASK_MISSING_OUTPUT` | `<Task>` is missing its output prop. | `{ nodeId }` |
| `DUPLICATE_ID` | Two nodes with the same runtime id are mounted in one workflow graph. | `{ kind, id }` |
| `NESTED_LOOP` | `<Loop>` or `<Ralph>` is nested inside another loop construct that Smithers does not support. | -- |
| `WORKTREE_EMPTY_PATH` | `<Worktree>` is mounted with an empty path. | -- |
| `MDX_PRELOAD_INACTIVE` | A prompt object is rendered without the MDX preload layer being active. | -- |
| `CONTEXT_OUTSIDE_WORKFLOW` | Workflow context access happens outside an active Smithers workflow render. | -- |
| `MISSING_OUTPUT` | Code calls `ctx.output()` for a node result that does not exist. | `{ nodeId, iteration }` |
| `DEP_NOT_SATISFIED` | A typed dep on `<Task>` references an upstream output that has not been produced yet. | `{ taskId, depKey, resolvedNodeId }` |
| `ASPECT_BUDGET_EXCEEDED` | An Aspects budget (tokens, latency, or cost) has been exceeded. | `{ kind, limit, current }` |
| `APPROVAL_OUTSIDE_TASK` | `<Approval>` is resolved outside the active task runtime. | -- |
| `APPROVAL_OPTIONS_REQUIRED` | An approval mode that requires explicit options is missing them. | -- |
| `WORKFLOW_MISSING_DEFAULT` | A workflow module does not export a default Smithers workflow. | -- |

## Tools

| Code | When | Details |
|---|---|---|
| `TOOL_PATH_INVALID` | A filesystem tool receives a non-string path. | -- |
| `TOOL_PATH_ESCAPE` | A filesystem tool resolves a path outside the sandbox root, including through symlinks. | -- |
| `TOOL_FILE_TOO_LARGE` | A read or edit operation exceeds the configured file size limit. | -- |
| `TOOL_CONTENT_TOO_LARGE` | A write operation exceeds the configured content size limit. | -- |
| `TOOL_PATCH_TOO_LARGE` | An edit patch exceeds the configured patch size limit. | -- |
| `TOOL_PATCH_FAILED` | A unified diff patch cannot be applied to the target file. | -- |
| `TOOL_NETWORK_DISABLED` | The bash tool tries to access the network while network access is disabled. | -- |
| `TOOL_GIT_REMOTE_DISABLED` | The bash tool attempts a remote git operation while network access is disabled. | -- |
| `TOOL_COMMAND_FAILED` | A bash tool command exits with a non-zero status. | -- |
| `TOOL_GREP_FAILED` | The grep tool fails with an rg execution error. | -- |

## Agents

| Code | When | Details |
|---|---|---|
| `AGENT_CLI_ERROR` | A CLI-backed agent exits unsuccessfully, streams an explicit error, or its RPC transport fails. | -- |
| `AGENT_RPC_FILE_ARGS` | Pi RPC mode is used with file arguments that the transport does not support. | -- |
| `AGENT_BUILD_COMMAND` | An agent implementation forbids `buildCommand()` because it uses a custom `generate()` transport. | -- |
| `AGENT_DIAGNOSTIC_TIMEOUT` | An internal agent diagnostic check exceeds the per-check timeout budget. | -- |

## Database

| Code | When | Details |
|---|---|---|
| `DB_MISSING_COLUMNS` | A table used by Smithers does not expose required columns such as `runId` or `nodeId`. | -- |
| `DB_REQUIRES_BUN_SQLITE` | The database adapter is not backed by a Bun SQLite client with `exec()`. | -- |
| `DB_QUERY_FAILED` | A database read query throws or rejects while running inside an Effect. | -- |
| `DB_WRITE_FAILED` | A database write or migration fails, including after SQLite retry exhaustion. | -- |
| `STORAGE_ERROR` | A storage service operation fails before surfacing a more specific database code. | -- |

## Effect / Runtime

| Code | When | Details |
|---|---|---|
| `INTERNAL_ERROR` | An unexpected internal exception crossed a runtime boundary without a more specific Smithers code. | -- |
| `PROCESS_ABORTED` | A spawned child process is aborted by signal or shutdown. | `{ command, args, cwd }` |
| `PROCESS_TIMEOUT` | A spawned child process exceeds its total timeout. | `{ command, args, cwd, timeoutMs }` |
| `PROCESS_IDLE_TIMEOUT` | A spawned child process stops producing output longer than its idle timeout. | `{ command, args, cwd, idleTimeoutMs }` |
| `PROCESS_SPAWN_FAILED` | The runtime cannot spawn the requested child process. | `{ command, args, cwd }` |
| `TASK_RUNTIME_UNAVAILABLE` | Builder task runtime APIs are accessed outside an executing step. | -- |

## Hot Reload

| Code | When | Details |
|---|---|---|
| `SCHEMA_CHANGE_HOT` | Hot reload detects a schema change that requires a full restart. | -- |
| `HOT_OVERLAY_FAILED` | Building or cleaning the generated hot-reload overlay fails. | -- |
| `HOT_RELOAD_INVALID_MODULE` | A hot-reloaded workflow module does not export a valid default workflow build. | -- |

## Scorers

| Code | When | Details |
|---|---|---|
| `SCORER_FAILED` | A scorer throws or rejects while Smithers is evaluating a result. | -- |

## CLI

| Code | When | Details |
|---|---|---|
| `WORKFLOW_EXISTS` | The workflow creation CLI refuses to overwrite an existing workflow file. | -- |
| `PROMPT_EXISTS` | The prompt creation CLI refuses to overwrite an existing prompt file. | -- |
| `PROMPT_MDX_INVALID` | An MDX prompt file does not export a valid default component. | -- |
| `TICKET_EXISTS` | The ticket creation CLI refuses to overwrite an existing ticket file. | -- |
| `TICKET_NOT_FOUND` | A CLI command references a ticket file that does not exist. | -- |
| `CLI_DB_NOT_FOUND` | A CLI command cannot find a nearby `smithers.db` file. | -- |
| `CLI_AGENT_UNSUPPORTED` | The ask command selects an agent integration that Smithers does not support in that mode. | -- |

## Integrations

| Code | When | Details |
|---|---|---|
| `PI_HTTP_ERROR` | The Pi or server integration receives a non-success HTTP response from Smithers. | -- |
| `EXTERNAL_BUILD_FAILED` | An external workflow host fails to build a Smithers HostNode payload. | `{ scriptPath, error?, exitCode?, stderr?, stdout? }` |
| `SCHEMA_DISCOVERY_FAILED` | External workflow schema discovery fails or returns invalid output. | `{ scriptPath, error?, exitCode?, stderr? }` |
| `OPENAPI_SPEC_LOAD_FAILED` | An OpenAPI spec cannot be loaded or parsed. | -- |
| `OPENAPI_OPERATION_NOT_FOUND` | The requested operationId does not exist in the OpenAPI spec. | -- |
| `OPENAPI_TOOL_EXECUTION_FAILED` | An OpenAPI tool call fails during HTTP execution. | -- |

## HTTP API Errors

JSON response codes, not `SmithersErrorInstance` objects.

| Code | Status | When |
|---|---|---|
| `INVALID_REQUEST` | 400 | Invalid request body or query params |
| `PAYLOAD_TOO_LARGE` | 413 | Body exceeds `maxBodyBytes` |
| `INVALID_JSON` | 400 | Body not valid JSON |
| `SERVER_ERROR` | 500 | Unexpected server error |
| `UNAUTHORIZED` | 401 | Missing or invalid auth token |
| `WORKFLOW_PATH_OUTSIDE_ROOT` | 400 | Workflow path outside server root |
| `RUN_ID_REQUIRED` | 400 | `runId` required when `resume: true` |
| `RUN_ALREADY_EXISTS` | 409 | Run ID already exists |
| `RUN_NOT_FOUND` | 404 | No run with given ID |
| `RUN_NOT_ACTIVE` | 409 | Run not active (cannot cancel) |
| `NOT_FOUND` | 404 | Route or resource not found |
| `DB_NOT_CONFIGURED` | 400 | Server database not configured |

## Related

- [Error Handling Guide](/guides/error-handling)
- [Debugging Guide](/guides/debugging)
- [Troubleshooting](/guides/troubleshooting)

---

## Package Configuration

> Reference for the smithers-orchestrator package exports, TypeScript configuration, and Bun preload setup.

Build and package configuration shipped with `smithers-orchestrator`. Use it when setting up a new project, debugging import resolution, or understanding why your `tsconfig.json` needs specific options.

## Binary

Use `bunx smithers-orchestrator <command>` for CLI commands. The repository root keeps a private development bin that points at `apps/cli/src/index.js`; application code should import from the package exports below.

## Subpath Exports

Use the subpath form to import only the surface you need.

| Import path | Entry file | Purpose |
|---|---|---|
| `smithers-orchestrator` | `./src/index.js` | Core API: `createSmithers`, components, `runWorkflow`, `renderMdx`, errors |
| `smithers-orchestrator/gateway` | `./src/gateway.js` | Gateway client for remote workflow coordination |
| `smithers-orchestrator/jsx-runtime` | `./src/jsx-runtime.js` | JSX runtime (auto-resolved by `jsxImportSource`) |
| `smithers-orchestrator/jsx-dev-runtime` | `./src/jsx-runtime.js` | JSX dev runtime (auto-resolved in dev mode) |
| `smithers-orchestrator/tools` | `./src/tools.js` | Tool sandbox: `defineTool`, `read`, `grep`, `bash`, `edit`, `write` |
| `smithers-orchestrator/server` | `./src/server.js` | HTTP server for run management and event streaming |
| `smithers-orchestrator/observability` | `./src/observability.js` | OpenTelemetry traces, metrics, and Prometheus integration |
| `smithers-orchestrator/pi-plugin` | `./src/pi-plugin.js` | PI CLI agent plugin |
| `smithers-orchestrator/pi-extension` | `./src/pi-extension.js` | PI extension UI bridge |
| `smithers-orchestrator/mdx-plugin` | `./src/mdx-plugin.js` | Bun preload plugin for `.mdx` imports |
| `smithers-orchestrator/dom/renderer` | `./src/dom/renderer.js` | Internal renderer (advanced use) |
| `smithers-orchestrator/serve` | `./src/serve.js` | Single-workflow HTTP server via `createServeApp` |
| `smithers-orchestrator/scorers` | `./src/scorers.js` | Eval scorers: `createScorer`, `llmJudge`, `aggregate` |
| `smithers-orchestrator/memory` | `./src/memory.js` | Cross-run memory storage and recall |
| `smithers-orchestrator/openapi` | `./src/openapi.js` | Generate AI SDK tools from OpenAPI specs |

### Usage

```ts
// Core API
import { createSmithers, runWorkflow } from "smithers-orchestrator";

// Tools
import { defineTool, bash, read, write } from "smithers-orchestrator/tools";

// Scorers
import { createScorer, llmJudge } from "smithers-orchestrator/scorers";

// MDX plugin (in preload.ts)
import { mdxPlugin } from "smithers-orchestrator/mdx-plugin";
```

## TypeScript Configuration

### JSX Import Source

```json
{
  "compilerOptions": {
    "jsx": "react-jsx",
    "jsxImportSource": "smithers-orchestrator"
  }
}
```

This tells TypeScript to resolve JSX transforms from `smithers-orchestrator/jsx-runtime` instead of `react/jsx-runtime`. The Smithers JSX runtime re-exports React's runtime, so component behavior is identical -- this setting enables proper type resolution for Smithers workflow components.

See [JSX Installation](/jsx/installation) for the complete TypeScript setup.

### Path Aliases

When developing inside the `smithers-orchestrator` monorepo, the root `tsconfig.json` defines path aliases so source imports resolve without a build step:

```json
"paths": {
  "smithers-orchestrator": ["./packages/smithers/src/index.js"],
  "smithers-orchestrator/jsx-runtime": ["./packages/smithers/src/jsx-runtime.js"],
  "smithers-orchestrator/jsx-dev-runtime": ["./packages/smithers/src/jsx-runtime.js"],
  "smithers-orchestrator/tools": ["./packages/smithers/src/tools.js"],
  "smithers-orchestrator/*": [
    "./packages/smithers/src/*.js",
    "./packages/smithers/src/*/index.js"
  ],
  "smithers-orchestrator/scorers": ["./packages/scorers/src/index.js"]
}
```

The root package is a private `smithers-monorepo`; `smithers-orchestrator` resolves to `packages/smithers`.

**End users do not need path aliases** — only framework developers do. Installing `smithers-orchestrator` as a dependency lets Node/Bun module resolution handle import paths automatically.

### Local Type Root Shims

```json
"typeRoots": ["./src/types", "./node_modules/@types"]
```

The `./src/types` directory contains ambient type declarations that fill gaps in third-party packages. One shim ships today:

- `react-dom-server.d.ts` -- Declares the `react-dom/server` module so TypeScript doesn't error when server-side rendering types are referenced.

End users should add `@types/react-dom` to `devDependencies` instead of relying on this shim.

## Bun Configuration

### Runtime Preload

```toml
# bunfig.toml
preload = ["./preload.ts"]
```

The preload script registers the MDX esbuild plugin with Bun's bundler so `.mdx` files can be imported as JSX components at runtime. See [MDX Prompts](/guides/mdx-prompts) for details.

### Test Configuration

```toml
[test]
root = "./tests"
preload = ["./preload.ts"]
```

| Key | Value | Purpose |
|---|---|---|
| `root` | `./tests` | Bun discovers test files from this directory instead of scanning the entire project |
| `preload` | `["./preload.ts"]` | Registers the MDX plugin for test files so `.mdx` imports work in tests |

The test preload is separate from the runtime preload. Both point to the same file, but Bun's `[test]` section only applies when running `bun test`. Without it, tests that import `.mdx` files fail with a module resolution error.

## npm Scripts

Defined in the root `package.json` for development:

| Script | Command | Purpose |
|---|---|---|
| `typecheck` | `tsc --noEmit` | Type-check the `src/` and `tests/` trees against `tsconfig.json` |
| `typecheck:examples` | `tsc -p examples/tsconfig.json --noEmit` | Type-check example files against a separate config that maps `smithers-orchestrator` to `examples-entry.js` |
| `lint` | `oxlint ...` | Lint source, test, and CLI code with oxlint |
| `test` | `bash ./scripts/run-all-tests.sh` | Run the full test suite |
| `e2e` | `playwright test` | Run Playwright end-to-end tests against the docs site and integration surfaces |
| `docs` | `cd docs && bunx mintlify dev` | Start the Mintlify docs dev server for local preview |

### For end-user projects

When scaffolding your own project (with `smithers init` or manually), add a typecheck script:

```json
{
  "scripts": {
    "typecheck": "tsc --noEmit"
  }
}
```

See [Production Project Structure](/guides/project-structure) for a complete user-project `package.json` example.

---

## VCS Helper Reference

> Public JJ helper APIs exported by smithers-orchestrator for repo detection, snapshot inspection, and workspace management.

Smithers exports a small JJ helper surface for applications that inspect or manage Jujutsu state directly.

Lightweight by design:

- every helper accepts an optional `cwd` to target a specific repository
- spawn failures are normalized instead of throwing — safe to call even when `jj` is not installed
- workspace helpers try a few command shapes to tolerate JJ version drift

## Import

```ts
import {
  runJj,
  getJjPointer,
  revertToJjPointer,
  isJjRepo,
  workspaceAdd,
  workspaceList,
  workspaceClose,
} from "smithers-orchestrator";
```

## `runJj(args, opts?)`

Run an arbitrary `jj` command and capture its output.

```ts
const result = await runJj(["status"], { cwd: "/path/to/repo" });
```

```ts
type RunJjOptions = {
  cwd?: string;
};

type RunJjResult = {
  code: number;
  stdout: string;
  stderr: string;
};
```

Notes:

- returns `{ code: 127, stdout: "", stderr: "..." }` when `jj` cannot be started
- does not throw for ordinary process failures
- a raw escape hatch beyond the higher-level helpers below

## `getJjPointer(cwd?)`

Return the current workspace `change_id` for `@`, or `null` when JJ is unavailable or the current directory is not a JJ repo.

```ts
const pointer = await getJjPointer("/path/to/repo");
```

```ts
function getJjPointer(cwd?: string): Promise<string | null>;
```

Smithers uses the same pointer model internally for revert support and cache invalidation.

## `revertToJjPointer(pointer, cwd?)`

Restore the working copy from a previously recorded JJ pointer.

```ts
const result = await revertToJjPointer("zqkopwvn", "/path/to/repo");
```

```ts
type JjRevertResult =
  | { success: true }
  | { success: false; error?: string };
```

This helper wraps `jj restore --from <pointer>`.

## `isJjRepo(cwd?)`

Detect whether a directory is a readable JJ repository.

```ts
const enabled = await isJjRepo("/path/to/repo");
```

```ts
function isJjRepo(cwd?: string): Promise<boolean>;
```

Use this before showing JJ-specific UI or attempting a revert flow.

## `workspaceAdd(name, path, opts?)`

Create a JJ workspace with a friendly name at a target filesystem path.

```ts
const result = await workspaceAdd("feature-auth", "/tmp/wt-feature-auth", {
  cwd: "/path/to/repo",
  atRev: "@",
});
```

```ts
type WorkspaceAddOptions = {
  cwd?: string;
  atRev?: string;
};

type WorkspaceResult =
  | { success: true }
  | { success: false; error?: string };
```

Behavior notes:

- removes an existing workspace with the same name before retrying
- recreates the target directory if needed
- tries multiple `jj workspace add` syntaxes to work across JJ versions

## `workspaceList(cwd?)`

List known workspaces for the current JJ repo.

```ts
const workspaces = await workspaceList("/path/to/repo");
```

```ts
type WorkspaceInfo = {
  name: string;
  path: string | null;
  selected: boolean;
};
```

Prefers template output when supported, falls back to parsing the human-readable `jj workspace list` output.

## `workspaceClose(name, opts?)`

Forget a JJ workspace by name.

```ts
const result = await workspaceClose("feature-auth", {
  cwd: "/path/to/repo",
});
```

```ts
function workspaceClose(
  name: string,
  opts?: { cwd?: string },
): Promise<WorkspaceResult>;
```

This wraps `jj workspace forget <name>`.

## When To Use These Helpers

Use these helpers when your application needs to:

- show whether JJ-backed revert is available
- record or inspect a pointer outside the Smithers engine
- manage JJ workspaces directly from an app or integration layer

For workflow-level revert behavior, prefer the runtime and CLI docs:

- [VCS Integration](/guides/vcs)
- [CLI Reference](/cli/overview)
- [Revert](/runtime/revert)

---

## runWorkflow

> Programmatic entry point. Equivalent to `bunx smithers-orchestrator up`.

```ts
import { runWorkflow } from "smithers-orchestrator";

const result = await runWorkflow(workflow, {
  input: { task: "fix bug" },
});

result.runId;     // string
result.status;    // "finished" | "failed" | "cancelled" | "continued" | "waiting-approval" | "waiting-event" | "waiting-timer"
result.output;    // populated only if your schema has a key literally named `output`
result.error;     // serialized SmithersError on failure
```

Signature:

```ts
function runWorkflow<Schema>(
  workflow: SmithersWorkflow<Schema>,
  opts: RunOptions,                 // see Types
): Promise<RunResult>;
```

Both `RunOptions` and `RunResult` are defined in [Types](/reference/types).

## Resume

Pass the original `runId` plus `resume: true`. State loads from SQLite, completed tasks are skipped, in-progress attempts older than 15 minutes are abandoned and retried.

```ts
await runWorkflow(workflow, { input: {}, runId: "my-run-123", resume: true });
```

The original input row is loaded from the DB; pass `{}` for `input`. The workflow file hash and VCS revision must match the original run.

## Cancel via AbortSignal

```ts
const controller = new AbortController();
setTimeout(() => controller.abort(), 5 * 60 * 1000);

const result = await runWorkflow(workflow, { input: {...}, signal: controller.signal });
// result.status === "cancelled"
```

All in-flight attempts are marked cancelled and `NodeCancelled` events are emitted.

## Hijack handoff

If a CLI hijack happens mid-run (`bunx smithers-orchestrator hijack <id>`), the run ends `"cancelled"` and the latest attempt metadata stores `hijackHandoff`. On `resume: true`, Smithers waits for a safe handoff point and continues with the persisted CLI session id (Claude/Codex/Gemini/Pi/Kimi/Forge/Amp) or the persisted message history (SDK agents).

## `result.output`

Populated only when the schema passed to `createSmithers()` has a key literally named `output`. Other schema rows live in their own SQLite tables — query them directly:

```ts
import { Database } from "bun:sqlite";
const db = new Database("smithers.db", { readonly: true });
const rows = db.query("SELECT * FROM page WHERE run_id = ? ORDER BY iteration DESC").all(result.runId);
```

## Notes

- On macOS, `runWorkflow` acquires a `caffeinate` lock to prevent idle sleep; released on completion. No-op elsewhere.
- Set `SMITHERS_DEBUG=1` to print engine errors to stderr.
- For lifecycle events, pass `onProgress` (see [Events](/runtime/events)).

---

## renderFrame

> Render a workflow tree to a GraphSnapshot without executing.

```ts
import { renderFrame } from "smithers-orchestrator";

const snap = await renderFrame(workflow, {
  runId: "preview",
  iteration: 0,
  input: { task: "preview" },
  outputs: {},
});

snap.frameNo;       // 0
snap.tasks;         // TaskDescriptor[]
snap.xml;           // XmlNode tree (see Types)
```

`TaskDescriptor` and `GraphSnapshot` are defined in [Types](/reference/types). Same shape the runtime extracts on every render frame; `renderFrame` doesn't execute or persist.

`outputs` lets you simulate completed upstream tasks:

```ts
const snap = await renderFrame(workflow, {
  runId: "sim", iteration: 0, input: { x: 1 },
  outputs: {
    analyze: [{ runId: "sim", nodeId: "analyze", iteration: 0, summary: "..." }],
  },
});
```

CLI equivalent:

```bash
bunx smithers-orchestrator graph workflow.tsx --input '{"task":"preview"}'
```

---

## Revert to Attempt

> Restore the workspace to a previous task attempt's filesystem state via JJ.

Each successful task attempt captures the current [JJ](https://jj-vcs.github.io/jj/) change ID into `_smithers_attempts.jj_pointer`. `revert` restores the workspace to that state and trims any DB frames recorded after the attempt started.

```bash
bunx smithers-orchestrator revert workflow.tsx \
  --run-id <id> --node-id <node> [--attempt N=1] [--iteration N=0]
```

Revert restores files only — it doesn't alter JJ history; the restoration creates a new change on top of the current working copy.

## Requirements

- JJ in `PATH` (`brew install jj` or `cargo install jj-cli`)
- Workspace is a JJ repository (`jj git init` or `jj init`)
- The target attempt was completed when JJ was available (otherwise no pointer was captured)

## Programmatic

```ts
import { revertToAttempt } from "smithers-orchestrator";

await revertToAttempt({
  runId: "abc123",
  nodeId: "implement",
  attempt: 2,
  iteration: 0,
});
```

`revertToAttempt` throws if the attempt has no recorded JJ pointer.

---

## Terminal UI (TUI)

> Chat-first terminal control plane for orchestrating, monitoring, and steering Smithers workflows.

```bash
bunx smithers-orchestrator tui
```

A chat-first orchestration console. The default surface is a unified activity feed and composer, not a dashboard. Monitoring, approvals, and telemetry are visible without leaving the main workspace.

## Product stance

Smithers TUI complements the CLI. Every meaningful UI action maps to a Smithers API or CLI operation, preserving the same durable, scriptable mental model.

The TUI is **not** a replacement for Claude Code, Codex CLI, Gemini CLI, or Amp. It is not a direct-edit harness by default. It is the orchestration layer above harnesses and API providers.

## Shell layout

The shell has four regions: workspace rail, activity feed, inspector, and composer.

```text
Smithers  repo: api  workspace: auth-fix  profile: Claude+SDK  mode: operator  2 runs  1 approval   Ctrl+O actions

|  auth refactor        [CC]  .1         12:41  You       Build a reusable Smithers workflow for auth fixes.
   docs sync            [AI]   v         12:41  Smithers  Plan:
!  pr review            [SM]  A1                   - inspect existing .smithers/workflows
   incident triage      [GM]   x                   - factor shared retry and review steps
                                                   - launch #auth-fix over current diff

                                              12:42  Run       auth-fix  a93f  running  validate -> patch  3/7
                                              12:43  Tool      smithers.workflows.read  .smithers/workflows/review-pr.tsx  18ms
                                              12:44  Approval  Push generated patch to workspace branch?
                                                               [Enter] open   [a] approve   [d] deny
                                              12:45  Artifact  .smithers/workflows/auth-fix.tsx

[#auth-fix] [@src/auth.ts] [@README.md]  Build it to be reusable, not one-off.
budget 18k ctx   Enter send   Alt+Enter queue   Ctrl+G editor
```

### Adaptive layouts

| Width | Behavior |
| --- | --- |
| >= 140 cols | Full three-column layout. Left rail 24 cols, right inspector 36--42 cols. |
| 100--139 cols | Inspector narrows to 28--32 cols. Less metadata in workspace rows. |
| 80--99 cols | Inspector becomes a toggleable overlay. Feed is the dominant pane. |
| < 80 cols | Single-pane mode. Workspace switcher and inspector are modal overlays. |

## Workspaces

A workspace is the top-level unit of activity. It holds a title, repo/cwd, current provider profile, mode, feed history, queued messages, linked runs, pinned context, and approval state.

The left rail shows all open workspaces. Each row displays:

- State marker (`|` active, `!` attention, `.` running)
- Title
- Provider tag (`[CC]`, `[SM]`, `[AI]`, `[GM]`, `[CX]`) — progressively disclosed (hidden until hover/focus in standard layouts)
- Compound Status badge (combines unread/approval into clear priority icons)

```text
|  auth refactor        [CC]  .1
   docs sync            [AI]   v
!  pr review            [SM]  A1
   incident triage      [GM]   x
```

Workspace actions: create, switch, close, archive, rename, pin, duplicate, fork from current.

Switching workspaces takes under 100ms. Active run and approval badges update without manual refresh.

## Activity feed

The center pane is a unified activity feed that mixes all orchestration activity:

| Item type | Display |
| --- | --- |
| User | Compact text with optional attachment pills |
| Assistant | Markdown with code blocks, collapsible long sections |
| Tool | Collapsed by default, one-line summary with name/target/status/duration |
| Run | Compact badge with workflow name, run ID, step, elapsed, progress |
| Approval | Detaches from feed into an Action Bar above the composer to prevent scrolling off-screen |
| Artifact | File name, type, source workflow/run, open/diff/copy affordances |
| Diff | Structured diff card |
| Error | Red label, compact summary first, stack collapsed underneath |
| Summary | Assistant-generated summaries for long activity blocks |

The feed streams incrementally and auto-scrolls unless you scroll away. A `LIVE` / `PAUSED` indicator appears in the feed header. Long-running workflows pin a sticky status header tracking progress, and related tool events group with vertical ASCII spines.

### Empty states

New workspaces avoid the "blank terminal" syndrome by rendering a non-persistent Welcome Bento Board in the feed area. It displays current repo git status and proposes 3 suggested actions based on repository heuristics (e.g. spotting a `package.json` and suggesting a test workflow). The board scrolls away once feed items appear.

## Inspector

The right rail shows details for the currently selected feed item.

A dynamic, context-sensitive precision surface. Instead of persistent empty tabs, the pane's title and contents morph with the selection. A breadcrumb (e.g., `Inspector • Run a93f` or `Inspector • src/auth.ts`) grounds the user.

Depending on the selection, the inspector renders:
- **Run** -- run graph, status, steps, cost
- **Context** -- pinned context items, token budget
- **Workflow** -- schema, last runs, provider hints
- **Diff** -- file diffs
- **Logs** -- timestamped lifecycle events
- **Details** -- raw output, structured output, scorer results

The inspector reacts to the current feed selection immediately. Selecting a run item shows the run graph. Selecting a workflow mention shows schema and last runs. Selecting an attachment shows preview and token estimate.

## Composer

A small command desk at the bottom of the shell.

```text
[#review-pr] [@src/auth.ts] [@README.md] [+2]
Build a reusable auth-fix workflow and run it against current diff.
budget 18k ctx    Enter send    Alt+Enter queue    Ctrl+G editor
```

Features:
- Multiline input (auto-grows up to 6 rows, then scrolls)
- `@` unified mentions for attaching files, directories, images, workspaces, sessions, and runs
- `#` invokes workflows (opens a fuzzy workflow picker)
- Slash commands (`/run`, `/workflows`, `/approvals`, etc.)
- Queued follow-up messages with `Alt+Enter`
- Large paste guard -- detects large paste and offers attach-as-file, inline, summarize, or cancel
- Draft preserved while switching workspaces

## Keyboard model

### Global

| Key | Action |
| --- | --- |
| `Ctrl+O` | Open global command palette |
| `Tab` / `Shift+Tab` | Cycle focus: workspace rail, feed, inspector, composer |
| `Esc` | Dismiss overlay, abort transient action, return focus toward composer |
| `?` | Show shortcuts/help for current context |
| `.` | Open contextual action menu for selected item |
| `/` | Search current pane (when composer is not focused) |
| `Ctrl+L` | Provider / model / profile picker |
| `Ctrl+R` | Prompt history search |
| `Ctrl+G` | Open composer in external editor |

### Composer

| Key | Action |
| --- | --- |
| `Enter` | Send |
| `Alt+Enter` | Queue follow-up |
| `Shift+Enter` / `Ctrl+J` | Newline |
| `@` | Unified context attach (file/image/directory/run/session) |
| `#` | Invoke workflow |
| `Ctrl+A` / `Ctrl+E` | Start / end of line |
| `Alt+B` / `Alt+F` | Word backward / forward |
| `Ctrl+W` / `Ctrl+U` / `Ctrl+K` | Kill word / line before / line after |

### Feed and lists

| Key | Action |
| --- | --- |
| `Up` / `Down` or `j` / `k` | Move selection |
| `g` / `G` | Jump to top / bottom |
| `PageUp` / `PageDown` | Page |
| `Space` | Expand / collapse selected item |
| `Enter` | Default action (open detail view) |
| `v` | Toggle verbose view |
| `o` | Open artifact/diff/log in pager or external viewer |
| `/` | Filter/search within the current pane |

### Destructive actions

No global single-key kill/approve while unfocused. Approval actions only appear inside the approval context. Confirmation dialogs always show the exact target. A per-workspace "always allow" path exists for repetitive safe actions.

## Modes

Three operating modes, switchable with `/mode` or `Ctrl+L`:

### Operator (default)

The assistant prefers creating, modifying, and reusing Smithers workflows over direct file edits:

1. Inspect existing `.smithers/workflows/` first
2. Reuse or refactor shared Smithers components
3. Scaffold or edit workflows/scripts in `.smithers/`
4. Launch durable runs for non-trivial work
5. Monitor and report results
6. Use cheaper API providers for broad analysis
7. Escalate to harness-backed workers only when needed
8. Ask before direct edits outside `.smithers/`

### Plan

Read-only. No file writes, no destructive shell, no workflow execution without confirmation.

### Direct

Direct repo edits allowed. Still encourages Smithers scripts where useful but does not block one-off edits.

## Provider routing

A provider profile routes work by task class. Example:

- Repo scan -> AI SDK / cheap model
- Workflow generation -> API strong model
- Repo implementation -> Claude Code or Codex harness
- Final summary -> cheap model

The current provider and routing policy are visible in the top line and editable with `/provider` and `/profiles`.

## Workflow catalog

Type `#` in the composer to open the workflow picker:

```text
+-- Workflows ----------------------------------------------------------------+
| > review-pr            PR review against current diff         last v 4m      |
|   auth-fix             Reusable auth remediation flow         last x 1h      |
|   docs-refresh         Refresh docs and changelog             last v 1d      |
|                                                                              |
| review-pr                                                                    |
|   input: { target?: string, diff?: boolean, push?: boolean }                |
|   providers: SDK analyze -> Claude Code patch -> SDK summary                 |
|   tags: review, reusable, repo                                              |
+------------------------------------------------------------------------------+
```

The catalog auto-discovers workflows from `.smithers/workflows/`. Features:
- Favorites and recents
- Fuzzy search by ID, tags, description, provider hints
- Input schema summary
- Last-run status, duration, success rate
- Launch form generated from schema when possible

## Run monitoring

Run cards in the feed show:
- Workflow name, run ID, provider
- Elapsed time, step count, progress bar
- Latest node, approval state
- Retries, failures, token/cost summary

The inspector supports deep run inspection:
- Overview and DAG/step graph
- Node attempts
- Logs and chat transcript
- Artifacts and scorer results
- Raw/structured output
- Retry, resume, and cancel actions

Navigate from a feed item to the deep run inspector in one action. Attach to any active run. Run state persists across TUI exits.

## Notifications

Events that trigger notifications:
- Approval needed
- Run failed or completed
- Provider disconnected
- Queued message delivered

Notifications appear as in-app badges on the workspace rail. Terminal bell, OSC notifications, and desktop notifications are available. Notifications are suppressed when the relevant workspace is focused.

## Slash commands

### Core

| Command | Purpose |
| --- | --- |
| `/help` | Help |
| `/new` | New workspace |
| `/resume` | Resume workspace |
| `/tree` | Session tree |
| `/compact` | Compact feed |
| `/clear` | Clear feed |
| `/export` | Export feed to markdown/JSON |
| `/theme` | Switch theme |
| `/settings` | Settings |

### Smithers

| Command | Purpose |
| --- | --- |
| `/workflows` | Open workflow catalog |
| `/run` | Launch a workflow |
| `/runs` | Show live runs |
| `/approvals` | Show pending approvals |
| `/inbox` | Unified attention queue (alerts + approvals + human requests) |
| `/telemetry` | Telemetry board |
| `/triggers` | Trigger manager |
| `/datagrid` | SQL query browser |
| `/docs` | Search Smithers docs |
| `/attach-run` | Attach to a run |
| `/resume-run` | Resume a run |
| `/cancel-run` | Cancel a run |

### Provider

| Command | Purpose |
| --- | --- |
| `/provider` | Switch provider profile |
| `/mode` | Switch mode (operator/plan/direct) |
| `/budget` | Token budget |
| `/profiles` | Manage provider profiles |

### Context

| Command | Purpose |
| --- | --- |
| `/attach` | Attach file/context |
| `/detach` | Remove context |
| `/history` | Prompt history |
| `/editor` | Open external editor |

## Command palette

Press `Ctrl+O` to open the global command palette. All slash commands and contextual actions are searchable here. Natural language works too — type what you want and the assistant interprets it.

## Persistence and recovery

The TUI survives:
- Accidental exits (workspace restore on relaunch)
- TTY resize
- Provider disconnects (reconnect automatically)
- Broker crashes (workflow runs continue independently)
- Large paste mistakes (paste guard dialog)

Persisted state includes: last active workspace, composer draft, attachment chips, inspector tab, follow mode, selected feed entry, pending queued messages, and broker reconnect cursor.

## Monitoring with Claude Code

Smithers persists all state to SQLite and exposes it through the CLI, so Claude Code queries status and reports progress without interrupting execution.

Set up a recurring health check with `/cron`:

```
/cron 10m Check the smithers workflow running in this directory.
Run `smithers ps` to see active runs, then `smithers inspect <run-id>`
for the latest run. Summarize what tasks have completed, what's currently
running, any failures, and overall progress. Keep it brief.
```

With `--hot`, Smithers watches for file changes and hot-reloads the workflow definition. Claude Code can edit prompts, swap agents, or restructure the JSX tree mid-run. In-flight tasks keep their original code; new tasks use the updated definition.

Other patterns:

- **Ad hoc inspection** -- Read the Smithers database and explain a failed run
- **Approval handling** -- Run `smithers approve` or `smithers deny` based on criteria
- **Live tuning** -- With `--hot`, tweak prompts or switch models mid-run
- **Post-run analysis** -- Summarize outputs and suggest next steps

## Beyond the terminal

### Burns

[Burns](https://github.com/l3wi/burns) is a workspace-first local control plane for Smithers. React web app, ElectroBun desktop shell, and headless CLI for authoring, running, and supervising workflows. See [Ecosystem](/integrations/ecosystem).

### JJHub Cloud

[jjhub.tech](https://jjhub.tech) will have first-class Smithers support for hosted workflows with scheduling, observability, and team collaboration.

## Next steps

- [CLI Reference](/cli/overview) -- all CLI commands including `smithers tui`.
- [Monitoring & Logs](/guides/monitoring-logs) -- observability with Grafana and Prometheus.
- [Debugging](/guides/debugging) -- diagnosing workflow issues.


===============================================================================

# Smithers Memory

> Smithers cross-run memory: working memory, message history, semantic recall, processors.

---

## Memory

> Cross-run state — facts, message history, semantic recall.

Memory persists state **across runs**. Task outputs are per-run; memory is per-namespace and survives every workflow execution.

## Three layers

```ts
import { createMemoryStore } from "smithers-orchestrator/memory";
import { Database } from "bun:sqlite";

const store = createMemoryStore(new Database("smithers.db"));
const ns = { kind: "workflow" as const, id: "code-review" };
```

| Layer | API | Use for |
|---|---|---|
| Working memory | `store.set(ns, key, value)` / `store.get(ns, key)` | Facts. Optional TTL. Last-write-wins. |
| Message history | `store.saveMessage(threadId, msg)` / `store.listMessages(threadId, limit)` | Ordered chat threads per agent or user. |
| Semantic recall | `store.recall(ns, query, topK)` | Vector search over stored facts. Requires embedding setup. |

## Namespaces

```ts
type MemoryNamespace = { kind: "workflow" | "agent" | "user" | "global"; id: string };
```

Pick the kind to match the lifetime: `workflow` is scoped to a workflow definition; `agent` to an agent identity; `user` to an end user; `global` is shared across everything.

## Wire memory into a Task

```tsx
<Task
  id="review"
  output={outputs.review}
  agent={reviewer}
  memory={{
    recall:   { namespace: ns, topK: 3 },               // inject relevant past facts into prompt
    remember: { namespace: ns, key: "last-review" },    // persist this output as a fact
    threadId: `${ctx.input.repo}:reviews`,              // append messages to this thread
  }}
>
  Review the latest PR.
</Task>
```

`recall` adds matching facts to the prompt before the agent runs. `remember` writes the validated output into memory after success. `threadId` ties the agent's prompt/response to a durable conversation.

## Processors

Maintenance jobs you run periodically:

```ts
import { TtlGarbageCollector, TokenLimiter, Summarizer } from "smithers-orchestrator/memory";

const gc         = TtlGarbageCollector();   // expire facts past their TTL
const limiter    = TokenLimiter(4000);      // keep history under token budget
const summarizer = Summarizer(myAgent);     // compress old messages with an LLM

await gc.process(store);
await limiter.process(store);
await summarizer.process(store);
```

## Inspect from the CLI

```bash
bunx smithers-orchestrator memory list workflow:code-review -w workflow.tsx
bunx smithers-orchestrator memory recall "auth bugs" -w workflow.tsx --top-k 10
```

## Notes

- Memory and task outputs are **distinct stores**. Don't use memory for run-scoped state — it's not transactional with the workflow's frame commits.
- Semantic recall requires an embedding provider; configure via `SemanticRecallConfig.embedding`.
- Working-memory writes are unordered. Use message history when sequence matters.

---

## Memory Quickstart

> Folded into the opt-in memory fragment.

This material is now in the opt-in [`/llms-memory.txt`](/llms-memory.txt) fragment.


===============================================================================

# Smithers OpenAPI Tools

> Smithers OpenAPI tools: turn an OpenAPI spec into AI SDK tools, with auth, filters, and observability.

---

## OpenAPI Tools

> Generate AI SDK tools from an OpenAPI spec. Auth, filtering, observability built in.

`createOpenApiTools` parses an OpenAPI 3.x spec and returns AI SDK tools — one per operation, with Zod schemas converted from the spec's JSON schemas.

```ts
import { createOpenApiTools } from "smithers-orchestrator/openapi";

const tools = await createOpenApiTools("./petstore.json", {
  baseUrl: "https://api.petstore.example.com",
  auth: { type: "bearer", token: process.env.PETSTORE_TOKEN! },
});

const agent = new ToolLoopAgent({
  model: anthropic("claude-sonnet-4-20250514"),
  tools,
});
```

## Options

```ts
type OpenApiToolsOptions = {
  spec: object | string;             // parsed spec, file path, or URL
  baseUrl?: string;                  // overrides spec.servers[0].url
  auth?:
    | { type: "none" }
    | { type: "apiKey"; name: string; in: "header" | "query" | "cookie"; value: string }
    | { type: "bearer"; token: string }
    | { type: "basicAuth"; username: string; password: string };
  includeOperations?: string[];      // operationId allowlist
  excludeOperations?: string[];      // operationId blocklist
};
```

## CLI preview

```bash
bunx smithers-orchestrator openapi list ./api/openapi.yaml
```

Lists every operationId, method, path, and summary — useful for auditing what an agent will be able to call before wiring it up.

## What gets generated

For each operation:

- A Zod schema for the request body + path/query/header parameters.
- An `execute(args)` function that performs the HTTP call.
- The operation's `summary` / `description` becomes the tool description.

## Response handling

- JSON responses are parsed and returned as objects.
- Non-JSON responses are returned as strings.
- HTTP errors are wrapped as `{ error: true, message, status }` and **returned**, not thrown — the agent can react in its loop.

## Filtering

`includeOperations` / `excludeOperations` accept arrays of `operationId`. If both are set, exclude wins. Useful for limiting an agent's surface area to a specific feature ("just the inventory endpoints").

## Observability

Each tool call emits an `OpenApiToolCalled` event with `operationId`, `method`, `path`, `durationMs`, `status`. Visible via `bunx smithers-orchestrator events <run-id> --type openapi`.

## Notes

- Schema composition (`allOf`, `anyOf`, `oneOf`) is supported — converts to Zod unions/intersections.
- Nullable fields and defaults from the spec are preserved.

---

## OpenAPI Tools Quickstart

> Folded into the opt-in OpenAPI fragment.

This material is now in the opt-in [`/llms-openapi.txt`](/llms-openapi.txt) fragment.


===============================================================================

# Smithers Observability

> Smithers observability surface: HTTP server, gateway, MCP, OpenTelemetry, metrics.

---

## HTTP Server

> Run Smithers as an HTTP server: REST routes for runs, approvals, tools.

`startServer` boots a multi-workflow HTTP server with REST endpoints for run lifecycle, SSE event streams, and [human-in-the-loop approvals](/concepts/human-in-the-loop). For a single-workflow variant alongside `smithers up`, see [Serve Mode](/integrations/serve).

## Quick start

```ts
import { startServer } from "smithers-orchestrator";
import { drizzle } from "drizzle-orm/bun-sqlite";

const server = startServer({
  port: 7331,
  db: drizzle("./smithers.db"),
  authToken: process.env.SMITHERS_API_KEY,
  rootDir: process.cwd(),
});
```

```bash
curl -X POST http://localhost:7331/v1/runs \
  -H "Authorization: Bearer $SMITHERS_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{"workflowPath": "./bugfix.tsx", "input": {"description": "fix auth"}}'
```

## ServerOptions

```ts
type ServerOptions = {
  port?: number;              // default 7331
  db?: BunSQLiteDatabase<any>;// enables GET /v1/runs and approvals listing
  authToken?: string;         // falls back to process.env.SMITHERS_API_KEY
  maxBodyBytes?: number;      // default 1_048_576
  rootDir?: string;           // sandbox root for workflow paths and tools
  allowNetwork?: boolean;     // default false; allows network in `bash`
  headersTimeout?: number;    // default 30_000
  requestTimeout?: number;    // default 60_000
};
```

`startServer` returns a listening `http.Server`. `headersTimeout` and `requestTimeout` are applied to that server to bound slow header/body uploads.

## API Routes (TOON)

```toon
routes[15]{method,path,purpose,auth}:
  GET,/health,Liveness probe,none
  GET,/metrics,Prometheus exposition,bearer
  POST,/v1/runs,Start or resume a run,bearer
  GET,/v1/runs,List runs (requires db),bearer
  GET,/v1/runs/:runId,Run status and node summary,bearer
  POST,/v1/runs/:runId/resume,Resume paused or failed run,bearer
  POST,/v1/runs/:runId/cancel,Abort an active run,bearer
  GET,/v1/runs/:runId/events,SSE event stream (?afterSeq=N),bearer
  GET,/v1/runs/:runId/frames,List render frames,bearer
  POST,/v1/runs/:runId/nodes/:nodeId/approve,Approve a paused node,bearer
  POST,/v1/runs/:runId/nodes/:nodeId/deny,Deny a paused node,bearer
  POST,/v1/runs/:runId/signals/:signalName,Deliver a named signal,bearer
  GET,/v1/approvals,List pending approvals (requires db),bearer
  GET,/v1/approval/list,Legacy alias for /v1/approvals,bearer
  POST,/signal/:runId/:signalName,Legacy alias for signals,bearer
```

JSON requests/responses use `Content-Type: application/json`, `Cache-Control: no-store`, and `X-Content-Type-Options: nosniff`. SSE events are named `smithers` and carry [`SmithersEvent`](/runtime/events) JSON; the stream sends a keep-alive comment every 10 s and closes on terminal state.

Errors use the envelope `{ "error": { "code", "message", "details" } }`. Common codes: `INVALID_REQUEST`, `RUN_NOT_FOUND`, `RUN_IN_PROGRESS`, `RUN_ALREADY_EXISTS`, `WORKFLOW_PATH_OUTSIDE_ROOT`, `DB_NOT_CONFIGURED`, `RUN_NOT_ACTIVE`, `SERVER_ERROR`.

## Tool surface

Tools resolve relative to `rootDir`. The example below exposes a workflow that uses the built-in `bash` tool through the server; clients call it via `POST /v1/runs`.

```tsx
/** @jsxImportSource smithers-orchestrator */
import { Task, Workflow, createSmithers, bash } from "smithers-orchestrator";
import { z } from "zod";

const { smithers, outputs } = createSmithers({
  result: z.object({ stdout: z.string() }),
});

export default smithers((ctx) => (
  <Workflow name="echo">
    <Task id="run" output={outputs.result}>
      {async () => ({ stdout: await bash(`echo ${ctx.input.msg}`) })}
    </Task>
  </Workflow>
));
```

`allowNetwork: false` (the default) keeps `bash` offline. Set `rootDir` to constrain the filesystem the workflow can touch.

## Authentication

When `authToken` is configured (directly or via `SMITHERS_API_KEY`), every request except `GET /health` must include either:

- `Authorization: Bearer <token>`, or
- `x-smithers-key: <token>`.

Missing or invalid tokens return `401`. No scopes — for finer access control use the [Gateway](/integrations/gateway).

## Notes

- Each `POST /v1/runs` and `/resume` reloads the workflow source via a content-addressed shadow file (`.${name}.smithers-${sha1}.tsx`), so edits take effect on the next call without a restart.
- Active runs heartbeat to `_smithers_runs.heartbeat_at_ms` every 5 s; stale rows are treated as crashed and may be resumed.
- When a server-level `db` differs from a workflow's database, runs and events are mirrored asynchronously to the server db so they show up in `GET /v1/runs`.
- Metrics are exported via `/metrics`; set `SMITHERS_OTEL_ENABLED=1` plus `OTEL_EXPORTER_OTLP_ENDPOINT` for OTLP. See [Observability](/guides/monitoring-logs).

---

## Serve Mode

> Run a single workflow as an HTTP server with Hono — interact with it over REST, stream events via SSE, and manage approvals remotely.

Serve mode starts a Hono-based HTTP server alongside a running workflow. Every route operates on the single active run — no workflow path or run ID in requests.

## CLI

```bash
bunx smithers-orchestrator up workflow.tsx --serve --port 3000 --host 0.0.0.0
```

| Flag | Default | Description |
|---|---|---|
| `--serve` | `false` | Enable HTTP server mode |
| `--port` | `7331` | TCP port |
| `--host` | `127.0.0.1` | Bind address |
| `--auth-token` | `SMITHERS_API_KEY` env | Bearer token for auth |
| `--metrics` | `true` | Expose `/metrics` Prometheus endpoint |

The process stays alive after the workflow completes so final state remains queryable. Ctrl+C stops both the server and the workflow.

Detached mode:

```bash
bunx smithers-orchestrator up workflow.tsx --serve --port 8080 -d
```

## Programmatic

```ts
import { createServeApp } from "smithers-orchestrator/serve";

const app = createServeApp({
  workflow,
  adapter,
  runId,
  abort: new AbortController(),
  authToken: "sk-secret",
});

Bun.serve({ port: 3000, fetch: app.fetch });
```

`createServeApp` returns a standard Hono app. Mount it with `Bun.serve`, pass it to another Hono app via `app.route()`, or use `app.fetch` in tests.

## ServeOptions

```ts
type ServeOptions = {
  workflow: SmithersWorkflow<any>;   // loaded workflow instance
  adapter: SmithersDb;               // database adapter for the workflow
  runId: string;                     // active run ID
  abort: AbortController;            // shared cancellation controller
  authToken?: string;                // bearer token; falls back to SMITHERS_API_KEY; disabled if unset
  metrics?: boolean;                 // expose /metrics; default true
};
```

---

## Authentication

When `authToken` is configured, every route except `/health` requires:

- `Authorization: Bearer <token>`, or
- `x-smithers-key: <token>`

Missing or invalid tokens receive `401`.

---

## Routes

### GET /health

Returns `200` regardless of auth.

```json
{ "ok": true }
```

### GET /

Run status and node summary.

```json
{
  "runId": "run-1234",
  "workflowName": "bugfix",
  "status": "running",
  "startedAtMs": 1707500000000,
  "finishedAtMs": null,
  "summary": { "finished": 3, "in-progress": 1, "pending": 2 }
}
```

### GET /events

SSE stream of lifecycle events. Same format as the [multi-workflow server](/integrations/server#get-v1runsrunidevents).

| Parameter | Type | Default | Description |
|---|---|---|---|
| `afterSeq` | `number` | `-1` | Only events after this sequence |

```
event: smithers
data: {"type":"NodeStarted","runId":"run-1234","nodeId":"analyze","iteration":0,"attempt":0}
id: 1

event: smithers
data: {"type":"NodeFinished","runId":"run-1234","nodeId":"analyze","iteration":0,"attempt":0}
id: 2
```

- Polls every 500ms.
- Auto-closes when the run reaches a terminal state.
- Reconnect with `?afterSeq=N` to resume from a known position.

### GET /frames

Rendered workflow frames.

| Parameter | Type | Default | Description |
|---|---|---|---|
| `limit` | `number` | `50` | Max frames |
| `afterFrameNo` | `number` | — | Frames after this number |

### POST /approve/:nodeId

Approve a pending approval gate. All fields optional. Returns `{ "runId": "run-1234" }`.

```json
{
  "iteration": 0,
  "note": "Looks good",
  "decidedBy": "alice"
}
```

### POST /deny/:nodeId

Deny a pending approval gate. Same body as `/approve/:nodeId`.

### POST /cancel

Cancel the running workflow.

| Status | Code | Condition |
|---|---|---|
| 200 | — | Cancelled successfully |
| 409 | `RUN_NOT_ACTIVE` | Run already finished/failed/cancelled |

### GET /metrics

Prometheus text exposition. Same metrics as the [multi-workflow server](/integrations/server#get-metrics).

---

## Error Format

```json
{
  "error": {
    "code": "ERROR_CODE",
    "message": "Human-readable description"
  }
}
```

Unknown routes return `404` with code `NOT_FOUND`.

---

## Serve Mode vs Multi-Workflow Server

| | Serve mode | [Multi-workflow server](/integrations/server) |
|---|---|---|
| Scope | Single workflow, single run | Any workflow, multiple concurrent runs |
| Start | `smithers up --serve` or `createServeApp()` | `startServer()` |
| Routes | `/`, `/events`, `/approve/:nodeId`, ... | `/v1/runs`, `/v1/runs/:runId`, ... |
| Framework | Hono | Node.js `http` |
| Use case | Development, single-purpose services | Production API gateway |

---

## Example

```bash
# Start a workflow with serve mode
bunx smithers-orchestrator up workflow.tsx --serve --port 8080 --auth-token sk-secret

# Status
curl http://localhost:8080/ -H "Authorization: Bearer sk-secret"

# Stream events
curl -N http://localhost:8080/events -H "Authorization: Bearer sk-secret"

# Approve
curl -X POST http://localhost:8080/approve/deploy \
  -H "Authorization: Bearer sk-secret" \
  -H "Content-Type: application/json" \
  -d '{"note": "Ship it", "decidedBy": "alice"}'

# Health (no auth)
curl http://localhost:8080/health
```

---

## Gateway

> WebSocket / RPC gateway for connecting clients to Smithers runs.

`Gateway` is Smithers' headless control plane. Reach for it (instead of [`startServer()`](/integrations/server)) when long-lived clients — bots, dashboards, schedulers — need to authenticate once, stream events over WebSocket, decide [approvals](/concepts/approvals), inject [signals](/runtime/events), and manage cron schedules across many registered workflows.

This page covers the multi-workflow Gateway control plane. The Hono-based surface is [Serve Mode](/integrations/serve), exposed through `createServeApp()` and `smithers up --serve`; it is the single-workflow HTTP app and is separate from the Gateway WebSocket/RPC runtime.

## Quick start

```tsx
/** @jsxImportSource smithers-orchestrator */
import { Gateway, Task, Workflow, createSmithers } from "smithers-orchestrator";
import { z } from "zod";

const { smithers, outputs } = createSmithers({
  result: z.object({ ok: z.boolean() }),
});

const deploy = smithers((ctx) => (
  <Workflow name="deploy">
    <Task id="ship" output={outputs.result}>{{ ok: true }}</Task>
  </Workflow>
));

const gateway = new Gateway({
  heartbeatMs: 15_000,
  auth: {
    mode: "token",
    tokens: { "operator-token": { role: "operator", scopes: ["*"] } },
  },
});

gateway.register("deploy", deploy, { schedule: "0 8 * * 1-5" });
await gateway.listen({ port: 7331 });
```

```ts
const ws = new WebSocket("ws://localhost:7331");
ws.onmessage = (m) => console.log(JSON.parse(m.data));
ws.onopen = () => ws.send(JSON.stringify({
  type: "req",
  id: "c1",
  method: "connect",
  params: {
    minProtocol: 1,
    maxProtocol: 1,
    client: { name: "docs-example", version: "1.0.0" },
    auth: { token: "operator-token" },
  },
}));
```

## RPC methods (TOON)

```toon
rpc[17]{method,params,returns,scope,transport}:
  launchRun,workflow/input?/options.runId?/options.idempotencyKey?,{runId/workflow},run:write,http+websocket
  resumeRun,runId/options.force?,{runId/status},run:write,http+websocket
  cancelRun,runId,{runId/status:cancelling},run:write,http+websocket
  hijackRun,runId/options?,{runId/status:hijack-ready/sessionId},run:admin,http+websocket
  rewindRun,runId/frameNo/confirm:true,JumpResult,run:admin,http+websocket
  submitApproval,runId/nodeId/iteration?/decision,{runId/nodeId/iteration/approved},approval:submit,http+websocket
  submitSignal,runId/correlationKey/payload?/signalName?,Delivery metadata,signal:submit,http+websocket
  getRun,runId,RunStateView,run:read,http+websocket
  listRuns,filter.status?/filter.limit?,Run summaries,run:read,http+websocket
  streamRunEvents,runId/afterSeq?,{streamId/runId/afterSeq/currentSeq},run:read,websocket
  streamDevTools,runId/afterSeq?,{streamId/runId/afterSeq} + devtools.event frames,observability:read,websocket
  getNodeOutput,runId/nodeId/iteration?,NodeOutputResponse,run:read,http+websocket
  getNodeDiff,runId/nodeId/iteration?,Node diff response,run:read,http+websocket
  cronList,filter.workflow?,Cron rows,cron:read,http+websocket
  cronCreate,workflow/pattern/cronId?/enabled?,Created cron row,cron:write,http+websocket
  cronDelete,cronId,{cronId/removed},cron:write,http+websocket
  cronRun,cronId? or workflow/input?,{runId/workflow},cron:write,http+websocket
```

`health` remains available as a utility RPC and `GET /health` is available without auth. The legacy method names are still accepted for compatibility (`runs.create`, `runs.get`, `runs.list`, `runs.cancel`, `runs.rerun`, `runs.diff`, `frames.list`, `frames.get`, `attempts.list`, `attempts.get`, `approvals.list`, `approvals.decide`, `signals.send`, `cron.list`, `cron.add`, `cron.remove`, `cron.trigger`, `getDevToolsSnapshot`, `jumpToFrame`, `devtools.jumpToFrame`, `devtools.getNodeOutput`, `devtools.getNodeDiff`), but new clients should use the v1 names above.

### Scopes

```toon
scopes[8]{scope,allows}:
  run:read,Read run state/lists/event streams/node output/node diffs
  run:write,Launch/resume/cancel runs; implies run:read
  run:admin,Hijack or rewind runs; implies run:write and run:read
  approval:submit,Submit approval decisions
  signal:submit,Submit workflow signals
  cron:read,List cron schedules
  cron:write,Create/delete/trigger cron schedules; implies cron:read
  observability:read,Read DevTools and other observability streams
```

`*` grants every scope. Exact method grants such as `launchRun` also work. Legacy wildcard method grants such as `cron.*` continue to match legacy method names; typed scopes are the contract to use for new integrations. Legacy ranked grants (`read`, `execute`, `approve`, `admin`) are accepted so older tokens keep working.

### `rewindRun` (destructive rewind)

Rewinds a run to a prior frame and makes it resumable from that point.
This is destructive: it truncates frames, attempts, output rows, and
diff-cache entries beyond the target; reverts JJ sandboxes; marks the
run `running` again; and emits a `TimeTravelJumped` event so
`streamDevTools` subscribers rebaseline.

Caller identity is authorized per-request: the connection must have
`run:admin` scope and must also be the run owner (`userId` matches
`ownerId`) or have `role: "admin"`. Scope alone never grants access.
The legacy aliases `jumpToFrame` and `devtools.jumpToFrame` route to
`rewindRun`.

Request:

```ts
type RewindRunRequest = {
  runId: string;     // /^[a-z0-9_-]{1,64}$/
  frameNo: number;   // 0 <= frameNo <= latestFrameNo
  confirm: true;     // must be literal true
};
```

Response (`JumpResult`):

```ts
type JumpResult = {
  ok: true;
  newFrameNo: number;
  revertedSandboxes: number;
  deletedFrames: number;
  deletedAttempts: number;
  invalidatedDiffs: number;
  durationMs: number;
};
```

Also broadcast after the DB commit as `run.time_travel_jumped` with
`{ runId, fromFrameNo, toFrameNo, timestampMs, caller }`.

Quota: 10 rewinds per run per caller per hour (default window). Exceeded
→ `RateLimited`.

Failure modes and HTTP status:

| Code                   | Meaning                                                                   | HTTP  |
| ---------------------- | ------------------------------------------------------------------------- | ----- |
| `InvalidRunId`         | `runId` fails `/^[a-z0-9_-]{1,64}$/`.                                     | `400` |
| `InvalidFrameNo`       | `frameNo` is not a non-negative i32 integer.                              | `400` |
| `ConfirmationRequired` | Caller omitted `confirm: true`.                                           | `400` |
| `FrameOutOfRange`      | `frameNo` > latest frame, or run has no frames.                           | `400` |
| `Unauthorized`         | Caller is neither the run owner nor an admin (audit row still written).   | `401` |
| `RunNotFound`          | `runId` does not exist.                                                   | `404` |
| `Busy`                 | Another rewind is in flight for this run.                                 | `409` |
| `RateLimited`          | Caller exceeded rewind quota (default 10/hour).                           | `429` |
| `UnsupportedSandbox`   | A sandbox cannot be reverted (missing / untrackable `jjPointer`).         | `501` |
| `VcsError`             | A JJ revert call failed; DB/reconciler rolled back.                       | `500` |
| `RewindFailed`         | Rewind failed and rollback was partial; run marked `needs_attention`.     | `500` |

Every call — success, failure, unauthorized — writes one row to
`_smithers_time_travel_audit` with `result ∈ { success, failed, partial, in_progress }`.
An in-progress row is inserted before any mutation and updated in place
on completion; startup recovery flips any leftover `in_progress` rows to
`partial`.

### Node output

`getNodeOutput` returns the DevTools Output-tab payload for a single task iteration:

```ts
type NodeOutputResponse = {
  status: "produced" | "pending" | "failed";
  row: Record<string, unknown> | null;
  schema: OutputSchemaDescriptor | null;
  partial?: Record<string, unknown> | null; // only when status === "failed"
};

type OutputSchemaDescriptor = {
  fields: Array<{
    name: string;
    type: "string" | "number" | "boolean" | "object" | "array" | "null" | "unknown";
    optional: boolean;
    nullable: boolean;
    description?: string;
    enum?: readonly unknown[];
  }>;
};
```

### Error codes

Gateway v1 RPC errors use stable code strings and HTTP status mappings:

```toon
errors[18]{code,http}:
  InvalidRequest,400
  InvalidInput,400
  Unauthorized,401
  Forbidden,403
  RunNotFound,404
  NodeNotFound,404
  IterationNotFound,404
  NodeHasNoOutput,404
  FrameOutOfRange,400
  SeqOutOfRange,400
  Busy,409
  RateLimited,429
  PayloadTooLarge,413
  BackpressureDisconnect,429
  UnsupportedSandbox,501
  VcsError,500
  RewindFailed,500
  Internal,500
```

Some legacy DevTools aliases still surface older validation names such as
`InvalidRunId`, `InvalidFrameNo`, or `ConfirmationRequired`. Treat those as
legacy aliases for the matching v1 validation failure.

### Versioned wire shapes

All DevTools wire types carry `version: 1`.

`DevToolsSnapshot` (v1):

```ts
type DevToolsSnapshot = {
  version: 1;
  runId: string;
  frameNo: number;   // latest frame reflected in this tree
  seq: number;       // monotonic sequence id (equals frameNo today)
  root: DevToolsNode;
};

type DevToolsNode = {
  id: number;        // stable across frames for the same logical node
  type: "workflow" | "task" | "sequence" | "parallel" | /* …see protocol */;
  name: string;
  props: Record<string, unknown>;
  task?: { nodeId: string; kind: "agent" | "compute" | "static"; /* … */ };
  children: DevToolsNode[];
  depth: number;
};
```

`DevToolsDelta` (v1):

```ts
type DevToolsDelta = {
  version: 1;
  baseSeq: number;   // must match the subscriber's current seq
  seq: number;       // new seq after applying ops, in order
  ops: Array<
    | { op: "addNode"; parentId: number; index: number; node: DevToolsNode }
    | { op: "removeNode"; id: number }
    | { op: "updateProps"; id: number; props: Record<string, unknown> }
    | { op: "updateTask"; id: number; task: DevToolsNode["task"] }
    | { op: "replaceRoot"; node: DevToolsNode } // emitted when the root's
                                                // identity or shape changes;
                                                // `removeNode` of the root is
                                                // never emitted.
  >;
};
```

`DevToolsEvent` (v1) — frames pushed over `devtools.event`:

```ts
type DevToolsEvent =
  | { version: 1; kind: "snapshot"; snapshot: DevToolsSnapshot }
  | { version: 1; kind: "delta"; delta: DevToolsDelta };
```

A subscription always starts with a `snapshot` event, then emits `delta` events
per frame. The server re-baselines (emits a full `snapshot` instead of a
`delta`) after 50 delta events, when a delta is larger than a fresh snapshot,
or when the gateway observes `TimeTravelJumped` for the run.

## WebSocket protocol

Three frame types share the same socket:

- `req`  — `{ type: "req", id, method, params? }` from client.
- `res`  — `{ type: "res", id, ok, payload?, error? }` from server, correlated by `id`.
- `event`— `{ type: "event", event, payload?, seq, stateVersion }` server-pushed; `seq` is per connection, `stateVersion` is global.

Handshake: on connect the server immediately pushes `connect.challenge` (`{ nonce, ts }`). The client replies with a `connect` request carrying `minProtocol`, `maxProtocol`, `client` metadata, `auth`, and an optional `subscribe: string[]` to filter events by `runId`. The server returns a `hello` payload (`protocol`, `features`, `policy.heartbeatMs`, `auth` with `sessionToken`/`role`/`scopes`/`userId`, `snapshot`).

After `connect`, the gateway emits `tick` events every `heartbeatMs`. `launchRun`, `submitApproval`, `submitSignal`, and `cronRun` automatically subscribe the connection to the affected `runId`. Streamed event names: `connect.challenge`, `tick`, `run.event`, `run.heartbeat`, `run.gap_resync`, `run.error`, `node.started`, `node.finished`, `node.failed`, `task.output`, `task.heartbeat`, `approval.requested`, `approval.decided`, `approval.auto_approved`, `run.time_travel_jumped`, `run.completed`, `cron.triggered`, `devtools.event`.

For stateless callers, `POST /rpc` accepts the same body shape (`{ id, method, params }`) and returns the same `ResponseFrame`. Auth headers: `Authorization: Bearer <token>` or `x-smithers-key: <token>` (or trusted-proxy headers in trusted-proxy mode).

## GatewayOptions

```ts
type GatewayOptions = {
  protocol?: number;                 // default 1
  features?: string[];               // default ["streaming", "runs"]
  heartbeatMs?: number;              // default 15_000
  auth?: GatewayAuthConfig;
  defaults?: { cliAgentTools?: "all" | "explicit-only" };
  maxBodyBytes?: number;             // default 1_048_576 for POST /rpc
  maxPayload?: number;               // default 1_048_576 for WebSocket frames
  maxConnections?: number;           // default 1_000
  eventWindowSize?: number;          // default 10_000 per-run replay frames
  headersTimeout?: number;           // default 30_000
  requestTimeout?: number;           // default 60_000
};

type GatewayAuthConfig =
  | {
      mode: "token";
      tokens: Record<string, { role: string; scopes: string[]; userId?: string }>;
    }
  | {
      mode: "jwt";
      issuer: string;
      audience: string;
      secret: string;                // HS256
      scopesClaim?: string;
      roleClaim?: string;
      userClaim?: string;
      defaultRole?: string;
      defaultScopes?: string[];
      clockSkewSeconds?: number;
    }
  | {
      mode: "trusted-proxy";
      allowedOrigins?: string[];
      trustedHeaders?: string[];     // default ["x-user-id","x-user-scopes","x-user-role"]
      defaultRole?: string;
      defaultScopes?: string[];
    };
```

Runs started through the gateway expose `ctx.auth = { triggeredBy, role, scopes, createdAt }`. `<Approval>` may further restrict decisions with `allowedScopes` and `allowedUsers`, which the gateway enforces before accepting `submitApproval`.

`headersTimeout` and `requestTimeout` are applied to the underlying Node HTTP server when `gateway.listen()` starts. Keep both below the corresponding reverse-proxy idle/read timeouts so slow clients are closed by Smithers first.

## Notes

- Cron: `gateway.register(name, wf, { schedule })` writes a cron row keyed `gateway:<name>`; the gateway polls between 1 s and 15 s (clamped from `heartbeatMs`). Cron-fired runs get `ctx.auth.role = "system"`, `triggeredBy = "cron:gateway"`, `scopes = ["*"]`.
- JWT mode currently validates `alg=HS256`, HMAC, `iss`, `aud`, `exp`, `nbf`. Scope claims may be arrays or space/comma-separated strings.
- Trusted-proxy mode is only safe behind something you control (Cloudflare Access, internal API gateway) that strips and rewrites identity headers.
- DevTools streams re-baseline every 50 events or when a delta exceeds a fresh snapshot; over-capacity subscribers receive `BackpressureDisconnect`.

---

## MCP Server

> Expose Smithers as a Model Context Protocol stdio server so any MCP client — Claude Code, Cursor, Codex, or your own agent — can list, run, inspect, and control workflows without shell scripting.

Smithers ships a built-in MCP stdio server. Passing `--mcp` to the CLI speaks the Model Context Protocol over stdin/stdout instead of acting as an interactive CLI. Any MCP-aware client can connect, discover workflows, start runs, watch progress, resolve approvals, and revert bad attempts through structured tool calls.

Use the MCP server when an AI agent should drive Smithers autonomously. Use the [HTTP Server](/integrations/server) for REST endpoints for human-written code or webhooks.

---

## Setup

### Start the server

```bash
smithers --mcp
```

This starts the semantic surface — a stable, structured tool set for AI agent consumption, documented on this page.

Two additional surfaces are available via `--surface`:

```bash
# Semantic tools only (default)
smithers --mcp --surface semantic

# Raw CLI-mirroring tools only
smithers --mcp --surface raw

# Both surfaces registered on the same server
smithers --mcp --surface both
```

Use `--surface raw` only for direct CLI parity. Prefer the semantic surface for new integrations: every tool returns a `{ ok, data, error }` envelope with Zod-validated input and output schemas.

### Register with Claude Code

```bash
smithers mcp add
```

`smithers mcp add` writes the server entry to the MCP config file for the detected agent. Pass `--agent` to target a specific client, `--no-global` to install project-locally, or `--command` to override the launch command:

```bash
smithers mcp add --agent claude-code
smithers mcp add --no-global
smithers mcp add --command "pnpm smithers --mcp"
```

### Register manually

For clients that read JSON config directly:

```json
{
  "mcpServers": {
    "smithers": {
      "command": "smithers",
      "args": ["--mcp"]
    }
  }
}
```

Project-scoped install (e.g. a monorepo where Smithers is a dev dependency):

```json
{
  "mcpServers": {
    "smithers": {
      "command": "pnpm",
      "args": ["smithers", "--mcp"]
    }
  }
}
```

---

## Tool Registration

On start, the server calls `registerSemanticTools`, which loops over `createSemanticToolDefinitions` and registers each via `server.registerTool`. Every tool carries:

- **`inputSchema`** — Zod object describing accepted parameters.
- **`outputSchema`** — Zod schema for the structured response envelope.
- **`annotations`** — MCP annotation metadata (`readOnlyHint`, `destructiveHint`, `idempotentHint`, `openWorldHint`).

### Structured tool envelope

Every tool returns the same shape:

```ts
{
  ok: boolean;
  data?: { ... };     // present on success
  error?: {           // present on failure
    code: string;
    message: string;
    details?: Record<string, unknown> | null;
    docsUrl?: string | null;
  };
}
```

The response is also echoed as a `text` content block, so clients that do not parse `structuredContent` still receive the JSON payload.

### Tool annotations

| Annotation | Tools | Meaning |
|---|---|---|
| `readOnlyHint: true` | Most query tools | Tool does not modify state |
| `readOnlyHint: false, openWorldHint: true` | `run_workflow` | Launches external processes |
| `readOnlyHint: false, destructiveHint: true, idempotentHint: false` | `resolve_approval`, `revert_attempt` | Mutates persisted state irreversibly |

---

## Tool Reference

### list_workflows

List all Smithers workflows discovered in the working directory.

**Input:** none

**Output:**

```ts
{
  workflows: Array<{
    id: string;
    displayName: string;
    entryFile: string;
    sourceType: "seeded" | "user" | "generated";
  }>;
}
```

Use the returned `id` values as the `workflowId` parameter for `run_workflow`.

---

### run_workflow

Start or resume a discovered workflow.

**Input:**

| Parameter | Type | Default | Description |
|---|---|---|---|
| `workflowId` | `string` | required | Workflow ID from `list_workflows` |
| `input` | `Record<string, unknown>` | `{}` | Workflow input object |
| `prompt` | `string` | — | Shorthand: sets `input.prompt` when `input` is not provided |
| `runId` | `string` | auto | Custom run ID |
| `resume` | `boolean` | `false` | Resume an existing run; requires `runId` |
| `force` | `boolean` | `false` | Force-start even if a run with this ID already exists |
| `waitForTerminal` | `boolean` | `false` | Block until the run reaches a terminal state |
| `waitForStartMs` | `number` | `1000` | For background launches, how long to wait for the run row to appear in the database |
| `maxConcurrency` | `number` | — | Max concurrent nodes |
| `rootDir` | `string` | — | Root directory for tool sandboxing and path resolution |
| `logDir` | `string` | — | Directory for log files |
| `allowNetwork` | `boolean` | `false` | Allow network access in `bash` tool |
| `maxOutputBytes` | `number` | — | Cap on node output size |
| `toolTimeoutMs` | `number` | — | Per-tool call timeout |
| `hot` | `boolean` | `false` | Enable hot-reloading of the workflow file |

**Output:**

```ts
{
  workflow: { id, displayName, entryFile, sourceType };
  runId: string;
  launchMode: "background" | "waited";
  requestedResume: boolean;
  status: string;
  observedRun: RunSummary | null;
  result: { runId, status, output?, error? } | null;
}
```

**Background vs. waited launch**

By default (`waitForTerminal: false`) the tool fires the workflow and returns immediately with `launchMode: "background"`. `observedRun` reflects the run state polled during `waitForStartMs`. Use `watch_run` to track progress.

Set `waitForTerminal: true` to block until the workflow finishes. `result` is populated and `launchMode` is `"waited"`.

**Run option forwarding**

`rootDir`, `logDir`, `allowNetwork`, `maxOutputBytes`, `toolTimeoutMs`, and `hot` are forwarded verbatim to `runWorkflow`. They override values baked into the workflow file.

---

### list_runs

List recent runs with summary data.

**Input:**

| Parameter | Type | Default | Description |
|---|---|---|---|
| `limit` | `number` (1–200) | `20` | Max runs to return |
| `status` | `string` | — | Filter by status (`running`, `finished`, `failed`, etc.) |

**Output:**

```ts
{
  runs: RunSummary[];
}
```

`RunSummary` fields: `runId`, `workflowName`, `workflowPath`, `parentRunId`, `status`, `createdAtMs`, `startedAtMs`, `finishedAtMs`, `heartbeatAtMs`, `activeNodeId`, `activeNodeLabel`, `pendingApprovalCount`, `waitingTimers`, `countsByState`.

---

### get_run

Get the full detail record for a specific run, including steps, approvals, timers, loop state, lineage, config, and error.

**Input:**

| Parameter | Type | Description |
|---|---|---|
| `runId` | `string` | Run ID |

**Output:**

```ts
{
  run: RunSummary & {
    steps: Array<{ nodeId, iteration, state, lastAttempt, updatedAtMs, outputTable, label }>;
    approvals: PendingApproval[];
    loops: Array<{ loopId, iteration, maxIterations }>;
    continuedFromRunIds: string[];
    activeDescendantRunId: string | null;
    config: unknown | null;
    error: unknown | null;
  };
}
```

---

### watch_run

Poll a run at a fixed interval until it reaches a terminal state or a timeout expires.

**Input:**

| Parameter | Type | Default | Description |
|---|---|---|---|
| `runId` | `string` | required | Run to watch |
| `intervalMs` | `number` | `1000` | Poll interval (minimum enforced by runtime) |
| `timeoutMs` | `number` | `30000` | Wall-clock budget before giving up |

**Output:**

```ts
{
  runId: string;
  intervalMs: number;
  pollCount: number;
  reachedTerminal: boolean;
  timedOut: boolean;
  finalRun: RunSummary;
  snapshots: Array<{ observedAtMs: number; run: RunSummary }>;
}
```

When `timedOut` is `true` the run is still active — call `watch_run` again or raise `timeoutMs`. Terminal statuses: `finished`, `failed`, `cancelled`.

---

### explain_run

Return a structured diagnosis explaining why a run is blocked, waiting, or stale.

**Input:**

| Parameter | Type | Description |
|---|---|---|
| `runId` | `string` | Run ID |

**Output:**

```ts
{
  diagnosis: {
    runId: string;
    status: string;
    summary: string;
    generatedAtMs: number;
    blockers: Array<{
      kind: string;
      nodeId: string;
      iteration: number | null;
      reason: string;
      waitingSince: number;
      unblocker: string;
      context?: string;
      signalName?: string | null;
      dependencyNodeId?: string | null;
      firesAtMs?: number | null;
      remainingMs?: number | null;
      attempt?: number | null;
      maxAttempts?: number | null;
    }>;
    currentNodeId: string | null;
  };
}
```

`summary` is a human-readable sentence. `blockers` lists every node preventing progress; `unblocker` describes what action or event would unblock it.

---

### list_pending_approvals

List approvals that are waiting for a human decision, optionally filtered by run, workflow, or node.

**Input:**

| Parameter | Type | Description |
|---|---|---|
| `runId` | `string` | Filter by run ID |
| `workflowName` | `string` | Filter by workflow name |
| `nodeId` | `string` | Filter by node ID |

All parameters optional. Omit all to list every pending approval across all runs.

**Output:**

```ts
{
  approvals: Array<{
    runId: string;
    nodeId: string;
    iteration: number;
    status: string;
    requestedAtMs: number | null;
    decidedAtMs: number | null;
    note: string | null;
    decidedBy: string | null;
    request: unknown;
    decision: unknown;
    autoApproved?: boolean;
    workflowName: string | null;
    runStatus: string | null;
    nodeLabel: string | null;
  }>;
}
```

---

### resolve_approval

Approve or deny a pending approval. This tool is destructive and non-idempotent.

**Input:**

| Parameter | Type | Description |
|---|---|---|
| `action` | `"approve" \| "deny"` | required — decision to record |
| `runId` | `string` | Filter to a specific run |
| `workflowName` | `string` | Filter by workflow name |
| `nodeId` | `string` | Filter by node ID |
| `iteration` | `number` | Filter by loop iteration |
| `note` | `string` | Optional note to record with the decision |
| `decidedBy` | `string` | Identity of the decision-maker |
| `decision` | `unknown` | Structured decision payload passed back to the workflow |

**Ambiguity guard**

Zero matches errors with `INVALID_INPUT`. More than one match errors with `INVALID_INPUT` and returns matches in `details.matches` — add `runId`, `nodeId`, or `iteration` to narrow the selection. The tool never guesses when multiple approvals match.

**Output:**

```ts
{
  action: "approve" | "deny";
  approval: PendingApproval;   // with updated status, decidedAtMs, note, decidedBy
  run: RunSummary | null;
}
```

---

### get_node_detail

Get enriched detail for a single node, including all attempts, tool calls, token usage, scorer results, and validated output.

**Input:**

| Parameter | Type | Description |
|---|---|---|
| `runId` | `string` | required |
| `nodeId` | `string` | required |
| `iteration` | `number` | Loop iteration (default: latest) |

**Output:**

```ts
{
  detail: {
    node: { runId, nodeId, iteration, state, lastAttempt, updatedAtMs, outputTable, label };
    status: string;
    durationMs: number | null;
    attemptsSummary: { total, failed, cancelled, succeeded, waiting };
    attempts: unknown[];
    toolCalls: unknown[];
    tokenUsage: unknown;
    scorers: unknown[];
    output: {
      validated: unknown | null;
      raw: unknown | null;
      source: "cache" | "output-table" | "none";
      cacheKey: string | null;
    };
    limits: {
      toolPayloadBytesHuman: number;
      validatedOutputBytesHuman: number;
    };
  };
}
```

---

### revert_attempt

Revert the workspace and frame history back to the state captured at a specific attempt. This is destructive and non-idempotent.

**Input:**

| Parameter | Type | Default | Description |
|---|---|---|---|
| `runId` | `string` | required | Run containing the node |
| `nodeId` | `string` | required | Node to revert |
| `iteration` | `number` | `0` | Loop iteration |
| `attempt` | `number` | required | Attempt number to revert to (must be ≥ 1) |

**Output:**

```ts
{
  runId: string;
  nodeId: string;
  iteration: number;
  attempt: number;
  success: boolean;
  error?: string;
  jjPointer?: string;
  run: RunSummary | null;
}
```

---

### list_artifacts

List structured output artifacts produced by nodes in a run.

**Input:**

| Parameter | Type | Default | Description |
|---|---|---|---|
| `runId` | `string` | required | Run ID |
| `nodeId` | `string` | — | Limit to a specific node |
| `includeRaw` | `boolean` | `false` | Include raw (pre-validation) output values |

**Output:**

```ts
{
  artifacts: Array<{
    artifactId: string;   // "<runId>:<nodeId>:<iteration>"
    kind: "node-output";
    runId: string;
    nodeId: string;
    iteration: number;
    label: string | null;
    state: string;
    outputTable: string | null;
    source: "cache" | "output-table" | "none";
    cacheKey: string | null;
    value: unknown | null;
    rawValue?: unknown | null;   // only when includeRaw=true
  }>;
}
```

Only nodes with an `outputTable` and a non-`none` output source are included.

---

### get_chat_transcript

Return the structured agent chat transcript for a run, grouped by attempts.

**Input:**

| Parameter | Type | Default | Description |
|---|---|---|---|
| `runId` | `string` | required | Run ID |
| `all` | `boolean` | `false` | Include all attempts, not just those with known output events |
| `includeStderr` | `boolean` | `true` | Include stderr messages |
| `tail` | `number` | — | Return only the last N messages |

**Output:**

```ts
{
  runId: string;
  attempts: Array<{
    attemptKey: string;
    nodeId: string;
    iteration: number;
    attempt: number;
    state: string;
    startedAtMs: number;
    finishedAtMs: number | null;
    cached: boolean;
    meta: unknown | null;
  }>;
  messages: Array<{
    id: string;
    attemptKey: string;
    nodeId: string;
    iteration: number;
    attempt: number;
    role: "user" | "assistant" | "stderr";
    stream: "stdout" | "stderr" | null;
    timestampMs: number;
    text: string;
    source: "prompt" | "event" | "responseText";
  }>;
}
```

Messages are sorted by `timestampMs`. Use `tail` to limit context window usage on long transcripts.

---

### get_run_events

Return the raw structured event history for a run with optional filtering.

**Input:**

| Parameter | Type | Default | Description |
|---|---|---|---|
| `runId` | `string` | required | Run ID |
| `afterSeq` | `number` | — | Only events with `seq` greater than this value |
| `limit` | `number` (1–10000) | `200` | Max events to return |
| `nodeId` | `string` | — | Filter to events for a specific node |
| `types` | `string[]` | — | Filter to specific event types (e.g. `["NodeFinished", "NodeFailed"]`) |
| `sinceTimestampMs` | `number` | — | Only events at or after this timestamp |

**Output:**

```ts
{
  runId: string;
  events: Array<{
    runId: string;
    seq: number;
    timestampMs: number;
    type: string;
    payload: unknown | null;
  }>;
}
```

Paginate via `afterSeq`: pass the `seq` of the last received event to fetch the next page.

---

## Usage Examples

### List workflows and start a run

```
> list_workflows {}

{
  "ok": true,
  "data": {
    "workflows": [
      { "id": "bugfix", "displayName": "bugfix", "entryFile": "./workflows/bugfix.tsx", "sourceType": "user" }
    ]
  }
}

> run_workflow { "workflowId": "bugfix", "prompt": "Fix the auth token expiry bug" }

{
  "ok": true,
  "data": {
    "runId": "smi_abc123",
    "launchMode": "background",
    "status": "running",
    ...
  }
}
```

### Watch until complete

```
> watch_run { "runId": "smi_abc123", "timeoutMs": 120000 }

{
  "ok": true,
  "data": {
    "reachedTerminal": true,
    "timedOut": false,
    "finalRun": { "status": "waiting-approval", ... }
  }
}
```

### Resolve a pending approval

```
> list_pending_approvals { "runId": "smi_abc123" }

{
  "ok": true,
  "data": {
    "approvals": [
      { "nodeId": "deploy", "iteration": 0, "nodeLabel": "Deploy to production", ... }
    ]
  }
}

> resolve_approval { "action": "approve", "runId": "smi_abc123", "nodeId": "deploy", "decidedBy": "alice", "note": "Looks good" }

{
  "ok": true,
  "data": {
    "action": "approve",
    "approval": { "status": "approved", "decidedAtMs": 1707500100000, ... },
    "run": { "status": "running", ... }
  }
}
```

### Debug a blocked run

```
> explain_run { "runId": "smi_abc123" }

{
  "ok": true,
  "data": {
    "diagnosis": {
      "summary": "Run is waiting for a human approval on node 'deploy'.",
      "blockers": [
        {
          "kind": "approval",
          "nodeId": "deploy",
          "reason": "Node requires human approval before proceeding.",
          "unblocker": "Call resolve_approval with action=approve or action=deny."
        }
      ]
    }
  }
}
```

### Revert a failed attempt

```
> get_node_detail { "runId": "smi_abc123", "nodeId": "analyze" }

{
  "ok": true,
  "data": {
    "detail": {
      "attemptsSummary": { "total": 3, "failed": 2, "succeeded": 1 },
      ...
    }
  }
}

> revert_attempt { "runId": "smi_abc123", "nodeId": "analyze", "attempt": 1 }

{
  "ok": true,
  "data": {
    "success": true,
    "run": { "status": "running", ... }
  }
}
```

---

## Error Codes

Errors follow the structured envelope. Common codes:

| Code | Meaning |
|---|---|
| `RUN_NOT_FOUND` | No run exists with the given ID |
| `INVALID_INPUT` | Missing required field, failed validation, or ambiguous approval filter |
| `WORKFLOW_MISSING_DEFAULT` | Workflow file has no default export |
| `WORKFLOW_NOT_FOUND` | No workflow matches the given ID |


===============================================================================

# Smithers Integrations

> Smithers integrations: agent runtimes (Claude Code, Codex, Gemini, Pi), tool surfaces, ecosystem partners.

---

## Integrations

> Three patterns for connecting Smithers to external services.

Smithers ships no first-party clients for Linear, Notion, Slack, or similar services. Treat them as external integrations your app owns and pick one of three wirings: tools on an SDK agent, skills/plugins/MCP on a CLI agent, or an external CLI run inside a task.

## Pattern 1: Pass tools to an SDK agent

Use this when the agent needs judgment but the external calls should stay explicit and reviewable.

```ts
import { ToolLoopAgent as Agent, tool, zodSchema } from "ai";
import { anthropic } from "@ai-sdk/anthropic";
import { z } from "zod";

const linearGetIssue = tool({
  description: "Fetch a Linear issue",
  inputSchema: zodSchema(z.object({ id: z.string() })),
  execute: async ({ id }) => linearClient.getIssue(id),
});

const opsAgent = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  tools: { linearGetIssue },
});
```

## Pattern 2: Pass a skill / plugin / MCP config to a CLI agent

Use this when your CLI agent already supports external integrations and Smithers should only orchestrate the task.

```ts
import { PiAgent } from "smithers-orchestrator";

const pi = new PiAgent({
  provider: "openai",
  model: "gpt-5.2-codex",
  skill: ["./skills/linear", "./skills/notion"],
});
```

```tsx
<Task id="ticket-review" output={outputs.review} agent={pi}>
  {`Use the Linear skill to inspect ${ctx.input.issueId}, then summarize next actions.`}
</Task>
```

## Pattern 3: Run an external CLI in a task

Use this when the step is deterministic and you do not need the model involved.

```tsx
<Task id="load-linear" output={outputs.linearIssue}>
  {async () => {
    const proc = Bun.spawn(["linear", "issue", "view", ctx.input.issueId, "--json"], {
      stdout: "pipe",
      stderr: "pipe",
    });
    const stdout = await new Response(proc.stdout).text();
    const stderr = await new Response(proc.stderr).text();
    if (await proc.exited !== 0) throw new Error(stderr || stdout);
    return JSON.parse(stdout);
  }}
</Task>
```

## Choosing between them

| If you need | Prefer |
|---|---|
| AI judgment over a small integration surface | Pattern 1 (SDK agent with narrow tools) |
| Existing CLI ecosystem support (skills, plugins, MCP) | Pattern 2 (CLI agent) |
| Deterministic sync or publish steps | Pattern 3 (compute task) |

## See also

For React hook patterns see [/recipes#custom-hooks-over-ctx](/recipes#custom-hooks-over-ctx); for agent-class details see [/llms-integrations.txt](/llms-integrations.txt).

---

## CLI Agents

> Spawn external CLI tools (Claude Code, Codex, Pi, …) and pipe them through the workflow runtime.

CLI-backed agent classes wrap external AI command-line tools and implement the [AI SDK](https://ai-sdk.dev) `Agent` interface. Use them anywhere Smithers accepts an agent, including [`<Task>`](/components/task). Reach for these for a vendor's full CLI surface (sessions, sandboxes, slash commands, MCP). For API-billed provider wrappers, see [SDK Agents](/integrations/sdk-agents).

## Quick Start

```tsx
import { ClaudeCodeAgent } from "smithers-orchestrator";

const claude = new ClaudeCodeAgent({
  model: "claude-sonnet-4-20250514",
  systemPrompt: "You are a careful code reviewer.",
  timeoutMs: 30 * 60 * 1000,
});

export default smithers((ctx) => (
  <Workflow name="review">
    <Task id="analysis" output={outputs.analysis} agent={claude}>
      {`Analyze the codebase and identify potential improvements.`}
    </Task>
  </Workflow>
));
```

## Available agents

```toon
agents[7]{class,cli,defaultModel,hijack,notes}:
  ClaudeCodeAgent,claude,claude-sonnet-4-20250514,native session id,Anthropic Claude Code CLI
  CodexAgent,codex,gpt-4.1,native session id,OpenAI Codex CLI (codex exec via stdin)
  GeminiAgent,gemini,gemini-2.5-pro,native session id,Google Gemini CLI (falls back to gcloud auth)
  PiAgent,pi,gpt-5.2-codex,native session id,Pi CLI (text/json/rpc modes + extension UI hooks)
  KimiAgent,kimi,kimi-latest,native session id,Moonshot Kimi CLI (auto-isolates KIMI_SHARE_DIR)
  ForgeAgent,forge,anthropic/claude-sonnet-4-20250514,conversation id,Forge CLI (300+ models)
  AmpAgent,amp,claude-sonnet-4-20250514,thread id,Amp CLI (--execute headless mode)
```

CLI binaries must be on `PATH`: `claude`, `codex`, `gemini`, `pi`, `kimi`, `forge`, `amp`.

## Common options

All CLI agents accept the same base option surface:

```ts
type BaseCliAgentOptions = {
  id?: string;                       // Agent instance id (default: random UUID)
  model?: string;                    // Model name passed to --model
  systemPrompt?: string;             // Prepended to the user prompt
  instructions?: string;             // Alias for systemPrompt
  cwd?: string;                      // Working directory (default: tool ctx rootDir or process.cwd())
  env?: Record<string, string>;      // Extra env vars merged with process.env
  yolo?: boolean;                    // Skip permission prompts (default: true)
  timeoutMs?: number;                // Hard wall-clock cap
  idleTimeoutMs?: number;            // Inactivity cap; resets on any stdout/stderr
  maxOutputBytes?: number;           // Truncate captured output
  extraArgs?: string[];              // Additional CLI flags appended to the command
};
```

Per-call timeout override:

```ts
await agent.generate({
  prompt: "do the thing",
  timeout: { totalMs: 15 * 60 * 1000, idleMs: 2 * 60 * 1000 },
});
```

## Per-agent extras

```ts
import { ClaudeCodeAgent } from "smithers-orchestrator";
new ClaudeCodeAgent({
  permissionMode?: "acceptEdits" | "bypassPermissions" | "default" | "delegate" | "dontAsk" | "plan";
  allowedTools?: string[]; disallowedTools?: string[]; disableSlashCommands?: boolean;
  addDir?: string[]; file?: string[]; fromPr?: string; fallbackModel?: string;
  appendSystemPrompt?: string; agents?: Record<string, { description?: string; prompt?: string }> | string;
  betas?: string[]; pluginDir?: string[]; resume?: string; sessionId?: string;
  mcpConfig?: string[]; mcpDebug?: boolean; maxBudgetUsd?: number; jsonSchema?: string;
  outputFormat?: "text" | "json" | "stream-json"; // default stream-json
});
```

```ts
import { CodexAgent } from "smithers-orchestrator";
new CodexAgent({
  sandbox?: "read-only" | "workspace-write" | "danger-full-access";
  fullAuto?: boolean; dangerouslyBypassApprovalsAndSandbox?: boolean;
  config?: Record<string, unknown> | string[]; oss?: boolean; localProvider?: string;
  image?: string[]; outputSchema?: string; outputLastMessage?: string; profile?: string;
});
```

```ts
import { GeminiAgent } from "smithers-orchestrator";
new GeminiAgent({
  sandbox?: boolean; approvalMode?: "default" | "auto_edit" | "yolo" | "plan";
  allowedTools?: string[]; allowedMcpServerNames?: string[];
  extensions?: string[]; resume?: string; includeDirectories?: string[];
  outputFormat?: "text" | "json" | "stream-json"; // default json
});
```

```ts
import { PiAgent, type PiExtensionUiRequest, type PiExtensionUiResponse } from "smithers-orchestrator";
new PiAgent({
  provider?: string; mode?: "text" | "json" | "rpc";
  print?: boolean; continue?: boolean; resume?: boolean; session?: string;
  sessionDir?: string; noSession?: boolean;
  extension?: string[]; skill?: string[]; promptTemplate?: string[]; theme?: string[];
  tools?: string[]; noTools?: boolean; files?: string[];
  thinking?: "off" | "minimal" | "low" | "medium" | "high" | "xhigh";
  onExtensionUiRequest?: (req: PiExtensionUiRequest) => Promise<PiExtensionUiResponse | null>;
});
```

```ts
import { KimiAgent } from "smithers-orchestrator";
new KimiAgent({
  thinking?: boolean; outputFormat?: "text" | "stream-json";
  finalMessageOnly?: boolean; quiet?: boolean;
  agent?: "default" | "okabe"; agentFile?: string;
  workDir?: string; session?: string; continue?: boolean;
  skillsDir?: string; mcpConfigFile?: string[]; mcpConfig?: string[];
  maxStepsPerTurn?: number; maxRetriesPerStep?: number; maxRalphIterations?: number;
});
```

```ts
import { ForgeAgent } from "smithers-orchestrator";
new ForgeAgent({
  directory?: string; provider?: string; agent?: string;
  conversationId?: string; sandbox?: string; restricted?: boolean;
  workflow?: string; event?: string; conversation?: string;
});
```

```ts
import { AmpAgent } from "smithers-orchestrator";
new AmpAgent({
  visibility?: "private" | "public" | "workspace" | "group";
  mcpConfig?: string; settingsFile?: string;
  logLevel?: "error" | "warn" | "info" | "debug" | "audit"; logFile?: string;
  dangerouslyAllowAll?: boolean;
});
```

## Hijack handoff

Every built-in CLI agent supports `bunx smithers-orchestrator hijack <runId>`, which relaunches the agent in its native CLI session for interactive takeover. Smithers persists the native session id (or conversation id for Forge / thread id for Amp) on each task event; on hijack it waits for a safe boundary between blocking tool calls, then reopens the session via the vendor's resume flag (`claude --resume`, `codex resume`, `gemini --resume`, `pi --session`, `kimi --session`, `forge --conversation-id`, `amp threads continue`). On clean exit the workflow resumes in detached mode. See [How it works → Durability and resume](/how-it-works#durability--resume).

## Notes

- **Yolo defaults.** `yolo: true` (default) maps to each CLI's "skip approvals" flag (`--dangerously-skip-permissions`, `--dangerously-bypass-approvals-and-sandbox`, `--yolo`, `--dangerously-allow-all`). Set `yolo: false` or use the agent-specific approval option for tighter control.
- **PI rpc mode** sends prompts as JSON over stdin and is required for `onExtensionUiRequest` callbacks; text/json modes pass the prompt as a positional arg with `files` emitted as `@path`.
- **Kimi share dir.** `KimiAgent` auto-creates an isolated `KIMI_SHARE_DIR` per invocation to prevent `kimi.json` corruption under concurrent runs. Set `env.KIMI_SHARE_DIR` to opt out.
- **Gemini auth** falls back to `gcloud auth application-default login` when neither `GOOGLE_API_KEY` nor `GEMINI_API_KEY` is set.
- **Non-idempotent retries.** When a `<Task>` retries, Smithers prepends a warning listing previously-called side-effect tools so the agent can verify external state before re-invoking them.

---

## SDK Agents

> Provider-backed AI SDK agent wrappers for Anthropic and OpenAI that work like first-class Smithers agents.

`AnthropicAgent` and `OpenAIAgent` are thin wrappers around the [AI SDK](https://ai-sdk.dev) `ToolLoopAgent` with class-style ergonomics matching the [CLI agents](/integrations/cli-agents).

## Import

```ts
import {
  AnthropicAgent,
  OpenAIAgent,
  tools,
} from "smithers-orchestrator";
import { stepCountIs } from "ai";
```

## Quick Start

```ts
const claude = new AnthropicAgent({
  model: "claude-opus-4-6",
  tools,
  instructions: "You are a careful planner.",
  stopWhen: stepCountIs(40),
});

const codex = new OpenAIAgent({
  model: "gpt-5.3-codex",
  tools,
  instructions: "You are a precise implementation agent.",
  stopWhen: stepCountIs(40),
});
```

```tsx
{/* outputs comes from createSmithers() */}
<Task id="plan" output={outputs.plan} agent={claude}>
  Analyze the repository and propose a migration plan.
</Task>
```

## Model Input

Both classes accept a model ID string (`"claude-opus-4-6"`, `"gpt-5.3-codex"`) or a prebuilt AI SDK language model instance.

## Options

Constructors forward standard AI SDK `ToolLoopAgent` settings: `instructions`, `tools`, `stopWhen`, `maxOutputTokens`, `temperature`, `providerOptions`, `prepareCall`. The wrapper adds `model`, which resolves model-ID strings automatically.

## Hijack Support

SDK agents do not reopen a provider-native CLI. Smithers persists the agent conversation and reopens it through a Smithers-managed REPL via `smithers hijack <runId>`.

Live-run behavior:

- Smithers captures response history after each step via `onStepFinish`.
- `smithers hijack` waits until history is durable, cancels the live run, and opens the REPL.
- On clean REPL exit, Smithers writes updated message history back and resumes the workflow automatically.

Limits:

- Conversation hijack stays on the same agent implementation. Cross-engine hijack is not supported.
- Smithers reconstructs the original task agent from the workflow source.

## CLI vs SDK

| | CLI Agents | SDK Agents |
|---|---|---|
| Billing | Provider subscription / local CLI | API billing |
| Tools | Provider CLI tool ecosystem | Smithers [tools](/integrations/tools) [sandbox](/components/sandbox) |
| Flexibility | Native CLI flags | AI SDK `providerOptions` |

Pass a raw `ToolLoopAgent` directly if you prefer — the wrappers are convenience, not a separate runtime.

## Example: Dual Setup

```ts
const useCli = process.env.USE_CLI_AGENTS === "1";

export const claude = useCli
  ? new ClaudeCodeAgent({
      model: "claude-opus-4-6",
      dangerouslySkipPermissions: true,
    })
  : new AnthropicAgent({
      model: "claude-opus-4-6",
      tools,
      instructions: "You are a careful planner.",
      stopWhen: stepCountIs(40),
    });
```

## Next Steps

- [CLI Agents](/integrations/cli-agents)
- [Built-in Tools](/integrations/tools)
- [Agents and Tools](/concepts/agents-and-tools)

---

## Built-in Tools

> Sandboxed file and shell tools for AI agent tasks, with exact input schemas, security policies, and usage examples.

```ts
import { tools, read, write, edit, grep, bash, defineTool } from "smithers-orchestrator";
```

`tools` bundles all five tools keyed by name:

```ts
const { read, write, edit, grep, bash } = tools;
```

## Sandboxing

All tools are sandboxed to `rootDir` (defaults to the workflow directory). Paths are resolved relative to this root; escapes via symlinks are rejected.

| Policy | Behavior |
|---|---|
| Path resolution | Relative paths resolve against `rootDir`. Absolute paths must fall within root. |
| Symlinks | Rejected if target is outside sandbox. |
| Output size | Truncated to `maxOutputBytes` (default 200KB). |
| Timeouts | `bash` and `grep` default to 60s; exceeded processes killed with `SIGKILL`. |
| Network | `bash` blocks network commands by default. See [bash](#bash). |

## Tool Call Logging

Every invocation is logged to `_smithers_tool_calls`:

| Field | Description |
|---|---|
| `runId` | Workflow run ID |
| `nodeId` | Task node that invoked the tool |
| `iteration` | Loop iteration |
| `attempt` | Retry attempt number |
| `seq` | Sequential call counter within the task |
| `toolName` | `read`, `write`, `edit`, `grep`, or `bash` |
| `inputJson` | Serialized input arguments |
| `outputJson` | Serialized output (truncated if over limit) |
| `startedAtMs` | Start timestamp |
| `finishedAtMs` | End timestamp |
| `status` | `"success"` or `"error"` |
| `errorJson` | Error details (if `"error"`) |

## defineTool

`defineTool()` wraps custom [AI SDK](https://ai-sdk.dev) tools with Smithers runtime context, deterministic idempotency keys, and durable tool-call logging.

```ts
import { defineTool } from "smithers-orchestrator";
import { z } from "zod";

const placeOrder = defineTool({
  name: "wholefoods.place_order",
  description: "Place a grocery order",
  schema: z.object({
    sku: z.string(),
  }),
  sideEffect: true,
  idempotent: false,
  async execute(args, ctx) {
    return await wholeFoods.placeOrder({
      sku: args.sku,
      idempotencyKey: ctx.idempotencyKey,
    });
  },
});
```

- `ctx.idempotencyKey` is stable across retries and resumes for the same task iteration.
- `sideEffect: true` opts the tool into Smithers side-effect tracking.
- `idempotent: false` warns resumed/retried agent loops when the tool was called in a previous attempt.
- Every `defineTool()` call is logged to `_smithers_tool_calls`.

### Side Effects and Idempotency

Every custom tool that modifies external state **must** declare `sideEffect: true`. This is how Smithers protects your [workflow](/concepts/workflows-overview) during retries and resumes. Without it, Smithers treats the tool as a pure read and replays it freely — potentially sending duplicate emails, double-charging payments, or creating duplicate records.

The two flags work together:

| `sideEffect` | `idempotent` | Smithers behavior |
|---|---|---|
| `false` (default) | `true` (default) | Pure read. Safe to replay on retry. No warnings. |
| `true` | `true` | Mutates external state, but calling twice with the same input produces the same result (e.g. an upsert, a PUT request). Safe to replay. No warnings. |
| `true` | `false` | Mutates external state and is **not** safe to replay (e.g. sending an email, placing an order, charging a payment). On retry, Smithers injects a warning listing the tool as already called so the agent can verify external state before calling again. |

With `sideEffect: true` and `idempotent: false`, Smithers does two things on retry:

1. **Warns the agent.** The retry prompt lists which non-idempotent tools were already called.
2. **Provides a stable idempotency key.** `ctx.idempotencyKey` is deterministic for a given task + iteration; pass it to external APIs that support idempotency (Stripe, AWS) to deduplicate.

If your `execute` function has `sideEffect: true, idempotent: false` but omits the `ctx` parameter, Smithers logs a startup warning. This is almost always a bug — you need `ctx.idempotencyKey` to handle retries safely.

```ts
// ✗ Bad: non-idempotent side effect without ctx
const sendEmail = defineTool({
  name: "email.send",
  schema: z.object({ to: z.string(), body: z.string() }),
  sideEffect: true,
  idempotent: false,
  async execute(args) {  // ← missing ctx parameter, Smithers warns
    await mailer.send(args);
  },
});

// ✓ Good: uses ctx.idempotencyKey to deduplicate
const sendEmail = defineTool({
  name: "email.send",
  schema: z.object({ to: z.string(), body: z.string() }),
  sideEffect: true,
  idempotent: false,
  async execute(args, ctx) {
    await mailer.send({ ...args, idempotencyKey: ctx.idempotencyKey });
  },
});
```

### What counts as a side effect

A side effect is any mutation of state **outside the [sandbox](/components/sandbox)**. If the tool talks to an external API, writes to a database, sends a message, or triggers a webhook, mark it.

File system changes inside the sandbox — writing files, editing code, running `git commit` — are **not** side effects. The built-in `write`, `edit`, and `bash` tools modify the working directory, but those changes are local, sandboxed, and tracked by git. They are reversible (`git checkout`, `git reset`) and inspectable (`git diff`, `git log`). Smithers does not need retry warnings or idempotency keys for them.

| Tool | Side effect? | Why |
|---|---|---|
| Built-in `read`, `grep` | No | Pure reads |
| Built-in `write`, `edit` | No | Sandboxed file changes, tracked by git |
| Built-in `bash` (local commands) | No | Local execution within sandbox |
| Custom tool calling an external API | **Yes** | Mutates state outside the sandbox |
| Custom tool writing to a database | **Yes** | External persistent state |
| Custom tool sending a Slack message | **Yes** | Irreversible external communication |
| Custom tool creating a GitHub PR | **Yes** | External state visible to others |

The rule is simple: **if you cannot undo it with `git reset`, mark it as a side effect.**

---

## read

Read a file from the sandbox.

```ts
{ path: string }  // relative to rootDir or absolute
```

Returns file contents as UTF-8. Throws `"File too large"` if size exceeds `maxOutputBytes`.

```ts
import { ToolLoopAgent as Agent } from "ai";
import { anthropic } from "@ai-sdk/anthropic";
import { read, grep } from "smithers-orchestrator";

const codeAgent = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  tools: { read, grep },
});
```

```tsx
{/* outputs comes from createSmithers() */}
<Task id="review" output={outputs.review} agent={codeAgent}>
  Read the file src/auth.ts and identify any security vulnerabilities.
</Task>
```

---

## write

Write content to a file. Creates parent directories as needed.

```ts
{
  path: string      // relative to rootDir or absolute
  content: string
}
```

Returns `"ok"`. Throws `"Content too large"` if content exceeds `maxOutputBytes`. Logs content hash (SHA-256) and byte size; full content is not stored.

```ts
import { ToolLoopAgent as Agent } from "ai";
import { anthropic } from "@ai-sdk/anthropic";
import { write, read } from "smithers-orchestrator";

const writerAgent = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  tools: { write, read },
});
```

---

## edit

Apply a unified diff patch to an existing file.

```ts
{
  path: string    // file to patch
  patch: string   // unified diff format
}
```

Returns `"ok"`. The file must exist. Reads current contents, applies the patch via `applyPatch`, writes back. Throws on size limits (`"Patch too large"`, `"File too large"`) or mismatched context (`"Failed to apply patch"`). Logs patch hash and byte size.

```
--- a/src/auth.ts
+++ b/src/auth.ts
@@ -10,3 +10,4 @@
   const token = jwt.sign(payload, secret);
+  logger.info("Token issued", { userId: payload.sub });
   return token;
```

---

## grep

Search for a regex pattern using `ripgrep`.

```ts
{
  pattern: string    // regex
  path?: string      // directory or file (default: rootDir)
}
```

Returns matching lines with file paths and line numbers (`rg -n` format). Exit code 1 (no matches) returns empty string. Exit code 2 throws stderr as error. Requires `ripgrep` in PATH.

```
src/auth.ts:15:  if (token.expired()) {
src/auth.ts:42:  validateToken(token);
tests/auth.test.ts:8:  const token = createTestToken();
```

---

## bash

Execute a shell command.

```ts
{
  cmd: string                     // executable or command
  args?: string[]                 // arguments
  opts?: { cwd?: string }        // working directory (sandboxed)
}
```

Returns combined stdout and stderr. Working directory defaults to `rootDir`. Timeout: 60s (killed with `SIGKILL` via process group). Non-zero exit codes throw.

### Network Blocking

Controlled by `allowNetwork` in `RunOptions`, `--allow-network` on CLI, or server config. Default: blocked.

When blocked, the command string (executable + args) is checked against these fragments:

| Category | Blocked strings |
|---|---|
| HTTP clients | `curl`, `wget` |
| URL prefixes | `http://`, `https://` |
| Package managers | `npm`, `bun`, `pip` |
| Git remote ops | `git push`, `git pull`, `git fetch`, `git clone`, `git remote` |

Local git commands (`git status`, `git diff`, `git log`) are allowed.

```ts
import { ToolLoopAgent as Agent } from "ai";
import { anthropic } from "@ai-sdk/anthropic";
import { bash } from "smithers-orchestrator";

const devAgent = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  tools: { bash },
});
```

```tsx
{/* outputs comes from createSmithers() */}
<Task id="lint" output={outputs.lint} agent={devAgent}>
  Run the linter on src/ and report any issues.
</Task>
```

---

## Using Tools with Agents

Pass tools to an [AI SDK](https://ai-sdk.dev) agent and assign the agent to a [`<Task>`](/components/task):

```tsx
import { ToolLoopAgent as Agent } from "ai";
import { anthropic } from "@ai-sdk/anthropic";
import { read, write, edit, grep, bash } from "smithers-orchestrator";

const codeAgent = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  tools: { read, write, edit, grep, bash },
  instructions: "You are a senior engineer. Use the available tools to complete tasks.",
});

const { Workflow, smithers, outputs } = createSmithers({
  result: z.object({ summary: z.string() }),
});

export default smithers((ctx) => (
  <Workflow name="refactor">
    <Task id="refactor" output={outputs.result} agent={codeAgent}>
      {`Refactor the function in ${ctx.input.file} to improve readability.`}
    </Task>
  </Workflow>
));
```

The full bundle works too:

```ts
import { ToolLoopAgent as Agent } from "ai";
import { anthropic } from "@ai-sdk/anthropic";
import { tools } from "smithers-orchestrator";

const fullAgent = new Agent({
  model: anthropic("claude-sonnet-4-20250514"),
  tools,
});
```

## Configuration

| Option | Default | Description |
|---|---|---|
| `rootDir` | Workflow directory | Sandbox root |
| `allowNetwork` | `false` | Allow network commands in `bash` |
| `maxOutputBytes` | `200000` (200KB) | Max output size per tool |
| `toolTimeoutMs` | `60000` (60s) | Timeout for `bash` and `grep` |

```ts
const result = await runWorkflow(workflow, {
  input: { file: "src/auth.ts" },
  rootDir: "/home/project",
  allowNetwork: false,
  maxOutputBytes: 500_000,
  toolTimeoutMs: 120_000,
});
```

## See Also

- [Agents and Tools](/concepts/agents-and-tools)
- [Sandbox](/components/sandbox)
- [Common External Tools](/integrations/common-tools)
- [Tools Agent Example](/examples/tools-agent)

---

## Common External Tools

> Patterns for hitting GitHub, Linear, Notion, Slack, Obsidian as tools.

For each external service, you have three choices:

1. **OpenAPI tools** — point `createOpenApiTools()` at the service's OpenAPI spec. See `/llms-openapi.txt`.
2. **CLI in a task** — if the service has a CLI (`gh`, `linear`, `notion`, `slack`), run it inside a `<Task>` via the `bash` tool. See `/recipes#side-effect-tools-with-idempotency`.
3. **Custom `defineTool`** — wrap the service's REST API in a Zod-validated tool. See `/llms-integrations.txt#definetool`.

## Quick decision

| Service | Recommended approach |
|---|---|
| GitHub      | `gh` CLI in a task (auth via `gh auth login`) |
| Linear      | `linear` CLI in a task, or OpenAPI tools |
| Notion      | OpenAPI tools (Notion publishes a spec) |
| Slack       | OpenAPI tools or `slack` CLI |
| Obsidian    | `bash` tool with vault path; no API needed |

Always mark side-effecting tools with `sideEffect: true` and use `ctx.idempotencyKey` so retries don't double-fire.

---

## Ecosystem

> Community projects built on Smithers.

## Burns

Workspace-first local control plane for Smithers. Single UI for authoring, running, and supervising workflows across repositories. Register repos, launch runs, stream events, inspect frames, handle approvals.

- React web app, ElectroBun desktop shell, or headless CLI
- AI-assisted workflow authoring via local agent CLIs
- SQLite-backed workspace registry

<Card title="Burns" icon="github" href="https://github.com/l3wi/burns">
  github.com/l3wi/burns
</Card>

## Ralphinho

Multi-agent development workflows. Two independent workflows:

- **Ralphinho** (scheduled-work) -- decomposes RFC into work units, runs tier-based quality pipelines (implement, test, review), lands via merge queue with CI verification.
- **Improvinho** (review-discovery) -- three parallel discovery lenses (refactoring, type safety, architecture), deduplicates findings. Optionally pushes to Linear.

Requires Bun and Jujutsu (`jj`). Supports Claude and Codex agents.

<Card title="Ralphinho" icon="github" href="https://github.com/enitrat/ralphinho">
  github.com/enitrat/ralphinho
</Card>

## Cairo Coder

AI-powered Cairo smart contract generator. RAG pipeline (DSPy) converting natural language to Cairo contracts for Starknet. Uses Smithers with Claude and Codex agents.

<Card title="Cairo Coder" icon="github" href="https://github.com/KasarLabs/cairo-coder">
  github.com/KasarLabs/cairo-coder
</Card>

## Agentix

Opinionated RFC-to-production orchestrator. Multi-phase pipelines: research, plan, implement, test, review. Role-based agents, conflict-aware merge queues, security/performance gates. DDD + BDD + TDD by default.

<Card title="Agentix" icon="github" href="https://github.com/AbdelStark/agentix">
  github.com/AbdelStark/agentix
</Card>

## Era

Generic multi-phase development workflow engine. Research, Plan, Implementation, Testing, Review, Fix, Final Review pipeline with outer Loop. Role-based agents, intelligent caching, dual-layer prompts.

<Card title="Era" icon="github" href="https://github.com/ClementWalter/era">
  github.com/ClementWalter/era
</Card>

## Local Isolated Ralph

Kubernetes-native Smithers workflow runner. Runs workflows as isolated K8s Jobs and CronJobs via k3s/k3d. Sandboxed container execution.

<Card title="Local Isolated Ralph" icon="github" href="https://github.com/SamuelLHuber/local-isolated-ralph">
  github.com/SamuelLHuber/local-isolated-ralph
</Card>

---

## PI Integration

> Use PI as a Smithers workflow CLI backend and understand how PI extensibility composes with Smithers declarative orchestration.

Smithers provides deterministic orchestration (workflow graph, approvals, retries, durable state). PI provides adaptive agent capabilities (providers, models, extensions, skills, prompt templates). Use both when you need deterministic execution with flexible agent behavior.

## Integration Modes

### 1) PI as Workflow Agent

```tsx
import { PiAgent } from "smithers-orchestrator";

const pi = new PiAgent({
  provider: "openai",
  model: "gpt-5.2-codex",
  mode: "text",
});

{/* outputs comes from createSmithers() */}
<Task id="implementation" output={outputs.implementation} agent={pi}>
  {`Implement feature X and explain tradeoffs.`}
</Task>
```

`PiAgent` supports all PI CLI flags: provider/model, tools, extensions, skills, prompt templates, themes, sessions. Text mode uses `--print` by default; JSON/RPC modes set `--mode` and omit `--print`.

PI sessions are first-class hijack targets. `smithers hijack <runId> --target pi` reopens the PI session for local steering.

### 2) PI Server Client

Drive Smithers server APIs from a PI extension or any Node process via `pi-plugin`:

```ts
import { runWorkflow, approve, streamEvents } from "smithers-orchestrator/pi-plugin";
```

### 3) Hybrid: PI Extensibility + Smithers Orchestration

- Keep orchestration in Smithers (`<Sequence>`, `<Parallel>`, `<Branch>`, `<Loop>`).
- Run adaptive logic in PI tasks (extensions/skills/provider overrides).

Patterns:

1. PI skill-driven coding task inside a Smithers `<Task>`.
2. PI extension command that starts/resumes Smithers workflows via server API or pi-plugin.
3. Smithers workflow output persisted to SQLite and consumed by later PI-assisted tasks.

## Hijacking PI Sessions

PI is a native-session hijack backend.

- Live run: Smithers watches PI's event stream, waits between blocking tool calls, then hands off the session.
- Finished/cancelled run: Smithers reopens the latest persisted PI session.
- Relaunch uses the stored session ID: `pi --session <id>`.
- Clean exit resumes the workflow automatically.

Session persistence:

- `PiAgent` defaults `noSession` to `true` for one-shot calls.
- For workflow hijack/resume/streaming, Smithers keeps session persistence enabled automatically.
- `mode: "json"` is not required for hijack support.

## Setup

1. Install PI CLI and add to `PATH`.
2. Configure PI credentials via env/config (prefer over CLI args for API keys).
3. Instantiate `PiAgent` with explicit options in workflows.
4. For server-driven workflows, use `pi-plugin`.

```bash
pi --version
bun run test
```

## Design Guidance

| Use `PiAgent` tasks when | Use Smithers-native tasks when |
|---|---|
| You need PI capabilities inside deterministic workflows | You need strict reproducibility and narrow tool contracts |
| You want PI calls as auditable workflow steps | |

## Limitations

Chat-provider integration lives in host applications, not this repo.


===============================================================================

# Smithers Events

> Smithers event surface: how to subscribe, the event categories, and the full SmithersEvent discriminated union (~50 variants).

---

## Events

> Subscribe to lifecycle events. Full event union lives in Types.

`SmithersEvent` is a discriminated union of every lifecycle event the runtime emits. The full type definition lives in [Types](/reference/types) — that's the source of truth for field shapes.

## Subscribe via `onProgress`

```ts
import { runWorkflow } from "smithers-orchestrator";
import workflow from "./workflow";

await runWorkflow(workflow, {
  input: { task: "fix bug" },
  onProgress: (event) => {
    if (event.type === "NodeStarted")  console.log(`▶ ${event.nodeId} (attempt ${event.attempt})`);
    if (event.type === "NodeFinished") console.log(`✓ ${event.nodeId}`);
    if (event.type === "NodeFailed")   console.error(`✗ ${event.nodeId}`, event.error);
  },
});
```

## Read from the NDJSON log

Events append to `.smithers/executions/<runId>/logs/stream.ndjson` (configure with `logDir` / `--log-dir`; disable with `--no-log`).

```bash
tail -f .smithers/executions/abc123/logs/stream.ndjson | jq .
cat .smithers/executions/abc123/logs/stream.ndjson | jq 'select(.type == "NodeFailed")'
cat .smithers/executions/abc123/logs/stream.ndjson | jq -r .type | sort | uniq -c | sort -rn
```

Or with the CLI:

```bash
bunx smithers-orchestrator events <run-id> --json
bunx smithers-orchestrator events <run-id> --type tool-call --node analyze
```

## Common fields

```ts
type CommonFields    = { type: string; runId: string; timestampMs: number };
type NodeScoped      = CommonFields & { nodeId: string; iteration: number };
type AttemptScoped   = NodeScoped   & { attempt: number };
```

Every event includes `type`, `runId`, `timestampMs`. Node-scoped events add `nodeId` and `iteration`. Attempt-scoped add `attempt`.

## Event categories

Used by `bunx smithers-orchestrator events --type <category>` and the metrics layer.

| Category | Events |
|---|---|
| `run` | RunStarted, RunStatusChanged, RunFinished, RunFailed, RunCancelled, RunContinuedAsNew, RunHijackRequested, RunHijacked |
| `frame` | FrameCommitted |
| `node` | NodePending, NodeStarted, NodeFinished, NodeFailed, NodeCancelled, NodeSkipped, NodeRetrying, NodeOutput |
| `approval` | NodeWaitingApproval, ApprovalRequested, ApprovalGranted, ApprovalDenied |
| `tool-call` | ToolCallStarted, ToolCallFinished |
| `agent` | AgentEvent |
| `revert` | RevertStarted, RevertFinished |
| `workflow` | WorkflowReloadDetected, WorkflowReloaded, WorkflowReloadFailed, WorkflowReloadUnsafe |
| `scorer` | ScorerStarted, ScorerFinished, ScorerFailed |
| `token` | TokenUsageReported |
| `timer` | TimerCreated, TimerFired, TimerCancelled |
| `memory` | MemoryFactSet, MemoryRecalled, MemoryMessageSaved |
| `openapi` | OpenApiToolCalled |
| `sandbox` | SandboxCreated, SandboxShipped, SandboxCompleted |
| `supervisor` | TaskHeartbeat |

## Built-in metrics

| Event | Metric |
|---|---|
| `RunStarted` | `smithers.runs.total` |
| `NodeStarted` | `smithers.nodes.started` |
| `NodeFinished` | `smithers.nodes.finished` |
| `NodeFailed` | `smithers.nodes.failed` |
| `ApprovalGranted` / `ApprovalDenied` | Approval counters |
| `TokenUsageReported` | Token usage counters per model/agent |

`trackSmithersEvent` from `smithers-orchestrator/observability` exposes this mapping for custom integrations. See the [observability fragment](/llms-observability.txt) for the full OTLP/Prometheus setup.

---

## Event Types

> The full SmithersEvent discriminated union.

`SmithersEvent` is the discriminated union of every lifecycle event the runtime emits. Every variant has `runId` and `timestampMs`. Most have `nodeId` and `iteration`. Attempt-scoped variants add `attempt`.

For subscribing (`onProgress` callback, NDJSON log file, CLI), category filters (`agent`, `node`, `tool-call`, …), and built-in metrics, see [Events](/runtime/events).

```ts
type SmithersEvent =
  | { type: "RunStarted"; runId: string; timestampMs: number }
  | { type: "RunStatusChanged"; runId: string; status: RunStatus; timestampMs: number }
  | { type: "RunFinished"; runId: string; timestampMs: number }
  | { type: "RunFailed"; runId: string; error: unknown; timestampMs: number }
  | { type: "RunCancelled"; runId: string; timestampMs: number }
  | { type: "RunContinuedAsNew"; runId: string; newRunId: string; iteration: number; carriedStateSize: number; ancestryDepth?: number; timestampMs: number }
  | { type: "RunHijackRequested"; runId: string; target?: string; timestampMs: number }
  | { type: "RunHijacked"; runId: string; nodeId: string; iteration: number; attempt: number; engine: string; mode: "native-cli" | "conversation"; resume?: string | null; cwd: string; timestampMs: number }

  | { type: "FrameCommitted"; runId: string; frameNo: number; xmlHash: string; timestampMs: number }

  | { type: "NodePending"; runId: string; nodeId: string; iteration: number; timestampMs: number }
  | { type: "NodeStarted"; runId: string; nodeId: string; iteration: number; attempt: number; timestampMs: number }
  | { type: "NodeFinished"; runId: string; nodeId: string; iteration: number; attempt: number; timestampMs: number }
  | { type: "NodeFailed"; runId: string; nodeId: string; iteration: number; attempt: number; error: unknown; timestampMs: number }
  | { type: "NodeCancelled"; runId: string; nodeId: string; iteration: number; attempt?: number; reason?: string; timestampMs: number }
  | { type: "NodeSkipped"; runId: string; nodeId: string; iteration: number; timestampMs: number }
  | { type: "NodeRetrying"; runId: string; nodeId: string; iteration: number; attempt: number; timestampMs: number }
  | { type: "NodeOutput"; runId: string; nodeId: string; iteration: number; attempt: number; text: string; stream: "stdout" | "stderr"; timestampMs: number }

  | { type: "NodeWaitingApproval"; runId: string; nodeId: string; iteration: number; timestampMs: number }
  | { type: "ApprovalRequested"; runId: string; nodeId: string; iteration: number; timestampMs: number }
  | { type: "ApprovalGranted"; runId: string; nodeId: string; iteration: number; timestampMs: number }
  | { type: "ApprovalDenied"; runId: string; nodeId: string; iteration: number; timestampMs: number }

  | { type: "ToolCallStarted"; runId: string; nodeId: string; iteration: number; attempt: number; toolName: string; seq: number; timestampMs: number }
  | { type: "ToolCallFinished"; runId: string; nodeId: string; iteration: number; attempt: number; toolName: string; seq: number; status: "success" | "error"; timestampMs: number }

  | { type: "AgentEvent"; runId: string; nodeId: string; iteration: number; attempt: number; engine: string; event: any; timestampMs: number }

  | { type: "RevertStarted"; runId: string; nodeId: string; iteration: number; attempt: number; jjPointer: string; timestampMs: number }
  | { type: "RevertFinished"; runId: string; nodeId: string; iteration: number; attempt: number; jjPointer: string; success: boolean; error?: string; timestampMs: number }

  | { type: "WorkflowReloadDetected"; runId: string; changedFiles: string[]; timestampMs: number }
  | { type: "WorkflowReloaded"; runId: string; generation: number; changedFiles: string[]; timestampMs: number }
  | { type: "WorkflowReloadFailed"; runId: string; error: unknown; changedFiles: string[]; timestampMs: number }
  | { type: "WorkflowReloadUnsafe"; runId: string; reason: string; changedFiles: string[]; timestampMs: number }

  | { type: "ScorerStarted"; runId: string; nodeId: string; scorerId: string; scorerName: string; timestampMs: number }
  | { type: "ScorerFinished"; runId: string; nodeId: string; scorerId: string; scorerName: string; score: number; timestampMs: number }
  | { type: "ScorerFailed"; runId: string; nodeId: string; scorerId: string; scorerName: string; error: unknown; timestampMs: number }

  | { type: "TokenUsageReported"; runId: string; nodeId: string; iteration: number; attempt: number; model: string; agent: string; inputTokens: number; outputTokens: number; cacheReadTokens?: number; cacheWriteTokens?: number; reasoningTokens?: number; timestampMs: number }

  | { type: "TimerCreated"; runId: string; timerId: string; firesAtMs: number; timerType: "duration" | "absolute"; timestampMs: number }
  | { type: "TimerFired"; runId: string; timerId: string; firesAtMs: number; firedAtMs: number; delayMs: number; timestampMs: number }
  | { type: "TimerCancelled"; runId: string; timerId: string; timestampMs: number }

  | { type: "MemoryFactSet"; runId: string; namespace: string; key: string; timestampMs: number }
  | { type: "MemoryRecalled"; runId: string; namespace: string; query: string; resultCount: number; timestampMs: number }

  | { type: "TaskHeartbeat"; runId: string; nodeId: string; iteration: number; attempt: number; hasData: boolean; dataSizeBytes: number; intervalMs?: number; timestampMs: number }

  | { type: "SandboxCreated"; runId: string; sandboxId: string; runtime: SandboxRuntime; configJson: string; timestampMs: number }
  | { type: "SandboxShipped"; runId: string; sandboxId: string; runtime: SandboxRuntime; bundleSizeBytes: number; timestampMs: number }
  | { type: "SandboxCompleted"; runId: string; sandboxId: string; remoteRunId?: string; runtime: SandboxRuntime; status: "finished" | "failed" | "cancelled"; durationMs: number; timestampMs: number };
```
